VL-2320 Series
Manufacturer: Panasonic Energy
Beta
⌘K

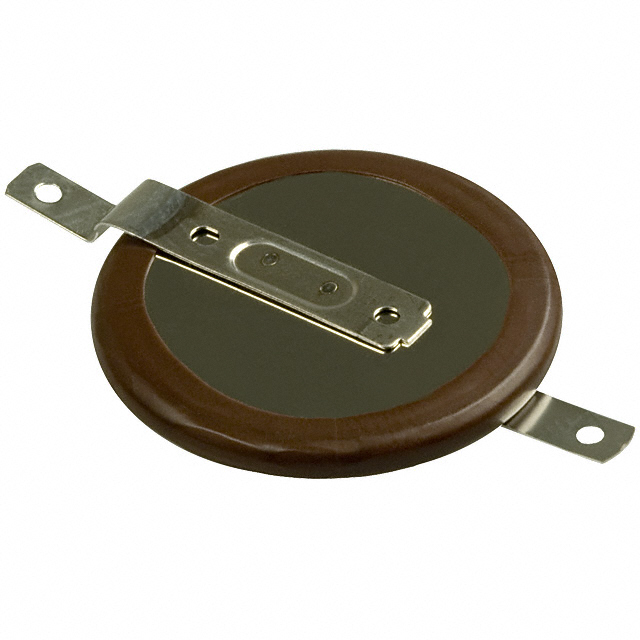

BATT LITH 3V 30MAH COIN 23.0MM
| Part | Battery Chemistry | Termination Style | Discharge Rate | Voltage - Rated | Weight | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Shipping Info | Standard Charge Current | Battery Cell Size | Battery Cell Size | Capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Energy | Lithium | SMD (SMT) Tab | 100 µA | 3 VDC | 2.7 g | 23 mm | 2 mm | 0.08 in | 0.91 in | Due to restrictions only ground shipment is allowed. | 2 mA | Coin | 23 mm | 30 mAh |
 Panasonic Energy | Lithium | PC Pin (Horizontal Mount) | 3 VDC | 23 mm | 2 mm | 0.08 in | 0.91 in | Coin | 23 mm | 30 mAh | ||||
Panasonic Energy | Lithium | SMD (SMT) Tab | 3 VDC | 23 mm | 2 mm | 0.08 in | 0.91 in | Coin | 23 mm | 30 mAh | ||||
Panasonic Energy | Lithium | PC Pin (Horizontal Mount) | 100 µA | 3 VDC | 2.7 g | 23 mm | 2 mm | 0.08 in | 0.91 in | Due to restrictions only ground shipment is allowed. | 2 mA | Coin | 23 mm | 30 mAh |
