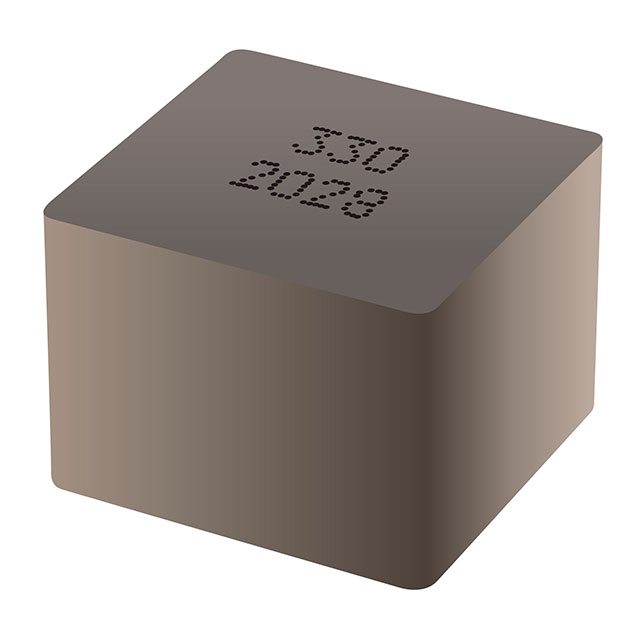

SRP1513CA Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND,16.5X15.5X12.7MM,10UH±20%,25A,SHD /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES
| Part | Frequency - Self Resonant | Inductance | Mounting Type | DC Resistance (DCR) [Max] | Q @ Freq | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Tolerance | Material - Core | Ratings | Current - Saturation (Isat) | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | Current Rating (Amps) | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 8 MHz | 10 µH | Surface Mount | 7 mOhm | 40 100 kHz | 0.61 in | 15.5 mm | 0.65 in | 16.5 mm | 20 % | Metal | AEC-Q200 | 30 A | 155 C | -55 C | 100 kHz | 25 A | Shielded | 0.512 " | 13 mm | Nonstandard |
