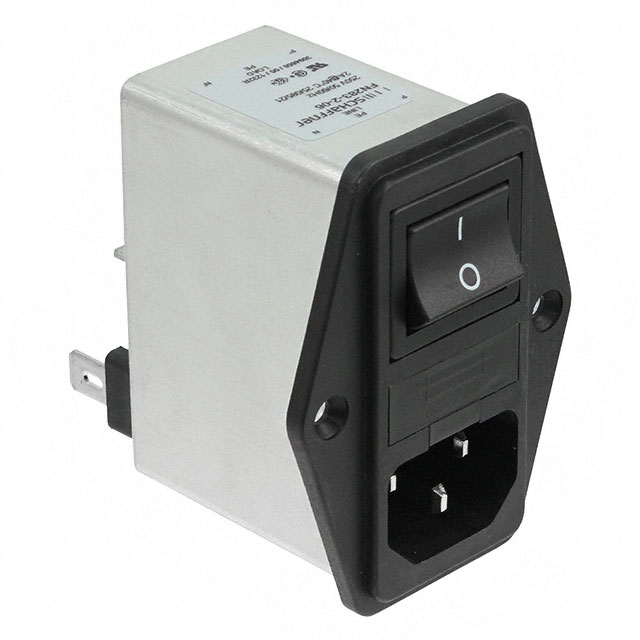

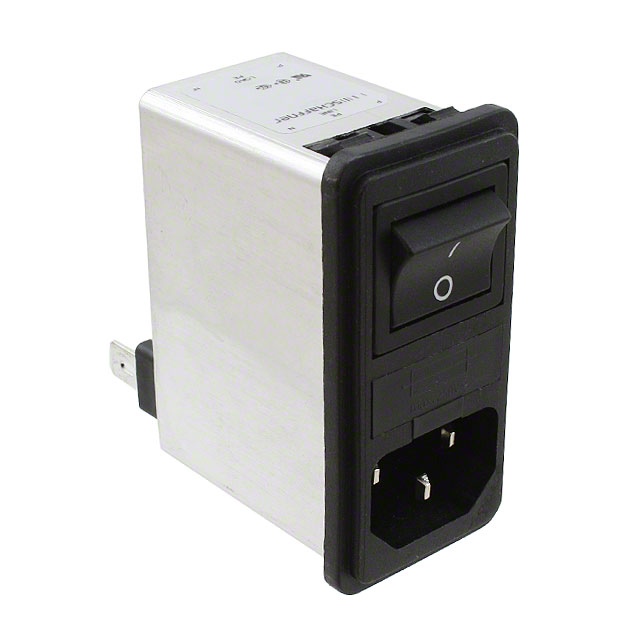

Schaffner FN280 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

POWER ENTRY MODULE FILTERED M 3 POS 250VACVAC 6A FUSE/SWITCH ST 1 PORT

...

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Filter Type	Connector Type	Fuse Holder, Drawer	Termination	Termination	Termination	Ingress Protection	Accomodates a Fuse	Mounting Type	Connector Style	Features	Switch Features	Material Flammability Rating	Current Rating - Filter	Panel Thickness	Panel Thickness [Max]	Panel Thickness [Min]
TE Connectivity AMP Connectors FN282B-6-06	29 mm	60 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	Twin Fused	6.3 mm	Quick Connect	0.25 "	IP40		Flange Panel Mount	IEC 320-C14	Bleed Resistor Front or Rear Side Mount	Switch On-Off	UL94 V-2	6 A
TE Connectivity AMP Connectors FN285-1-06	29 mm	61.5 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	Fuse Holder	6.3 mm	Quick Connect	0.25 "	IP40		Panel Mount Snap-In	IEC 320-C14		Switch On-Off	UL94 V-2	1 A	0.79 mm 3 mm	0.118 in	0.031 "
TE Connectivity AMP Connectors FN286E-4-06	29 mm	61.5 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	Twin Fused	6.3 mm	Quick Connect	0.25 "	IP40		Panel Mount Snap-In	IEC 320-C14	Earth Line Choke	Switch On-Off	UL94 V-2	4 A	0.79 mm 3 mm	0.118 in	0.031 "
TE Connectivity AMP Connectors FN286-4-06	29 mm	61.5 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	Twin Fused	6.3 mm	Quick Connect	0.25 "	IP40		Panel Mount Snap-In	IEC 320-C14		Switch On-Off	UL94 V-2	4 A	0.79 mm 3 mm	0.118 in	0.031 "
TE Connectivity AMP Connectors FN285-4-06	29 mm	61.5 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	Fuse Holder	6.3 mm	Quick Connect	0.25 "	IP40		Panel Mount Snap-In	IEC 320-C14		Switch On-Off	UL94 V-2	4 A	0.79 mm 3 mm	0.118 in	0.031 "
TE Connectivity AMP Connectors FN286-10-06	29 mm	61.5 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	Twin Fused	6.3 mm	Quick Connect	0.25 "	IP40		Panel Mount Snap-In	IEC 320-C14		Switch On-Off	UL94 V-2	10 A	0.79 mm 3 mm	0.118 in	0.031 "
TE Connectivity AMP Connectors FN286B-2-06	29 mm	61.5 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	Twin Fused	6.3 mm	Quick Connect	0.25 "	IP40		Panel Mount Snap-In	IEC 320-C14	Bleed Resistor	Switch On-Off	UL94 V-2	2 A	0.79 mm 3 mm	0.118 in	0.031 "
TE Connectivity AMP Connectors FN286-4-06	29 mm	61.5 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	Twin Fused	6.3 mm	Quick Connect	0.25 "	IP40		Panel Mount Snap-In	IEC 320-C14		Switch On-Off	UL94 V-2	4 A	0.79 mm 3 mm	0.118 in	0.031 "
TE Connectivity AMP Connectors FN284E-6-06	29 mm	60 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	Twin Fused	6.3 mm	Quick Connect	0.25 "	IP40		Flange Panel Mount	IEC 320-C14	Earth Line Choke Front or Rear Side Mount	Switch On-Off	UL94 V-2	6 A
TE Connectivity AMP Connectors FN283-2-06	29 mm	60 mm	CQC CSA ENEC UL	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	Fuse Holder	6.3 mm	Quick Connect	0.25 "	IP40		Flange Panel Mount	IEC 320-C14	Front or Rear Side Mount	Switch On-Off	UL94 V-2	2 A
