CS0305 Series

Catalog

BOARD MOUNT CURRENT SENSORS CURRENT SENSOR,OPEN LOOP,5A,+5VDC,UNIPOLAR

Part	Output	Linearity	Current - Sensing	Polarization	For Measuring	Current - Supply (Max) [Max]	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Response Time	Number of Channels [custom]	Sensor Type	Frequency [Max]	Frequency [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case

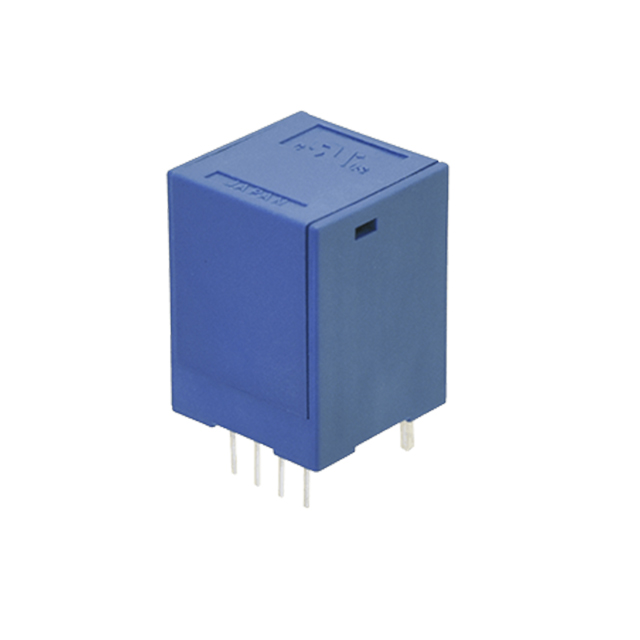

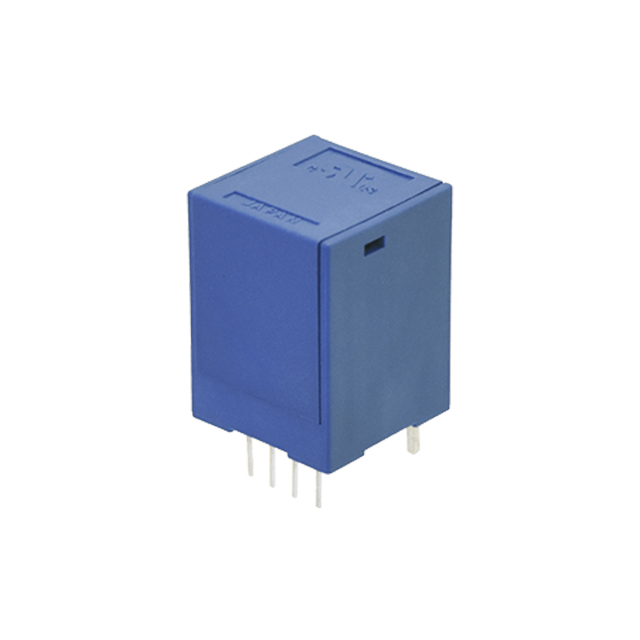

Same Sky (Formerly CUI Devices) CS0305U	Ratiometric Voltage	0.5 %	3 A	Unidirectional	AC	25 mA	4.2 %	4.75 V	5.25 V	Through Hole	7 µs	1	Open Loop	40 kHz	DC	75 ░C	-10 °C	Module
Same Sky (Formerly CUI Devices) CS0305B	Ratiometric Voltage	0.5 %	3 A	Bidirectional	AC	25 mA	2.2 %	4.75 V	5.25 V	Through Hole	7 µs	1	Open Loop	40 kHz	DC	75 ░C	-10 °C	Module
Same Sky (Formerly CUI Devices) CS0305U	Ratiometric Voltage	0.5 %	3 A	Unidirectional	AC	25 mA	4.2 %	4.75 V	5.25 V	Through Hole	7 µs	1	Open Loop	40 kHz	DC	75 ░C	-10 °C	Module
Same Sky (Formerly CUI Devices) CS0305B	Ratiometric Voltage	0.5 %	3 A	Bidirectional	AC	25 mA	2.2 %	4.75 V	5.25 V	Through Hole	7 µs	1	Open Loop	40 kHz	DC	75 ░C	-10 °C	Module
