OA80EC Series
Manufacturer: ORION FANS
Beta
⌘K

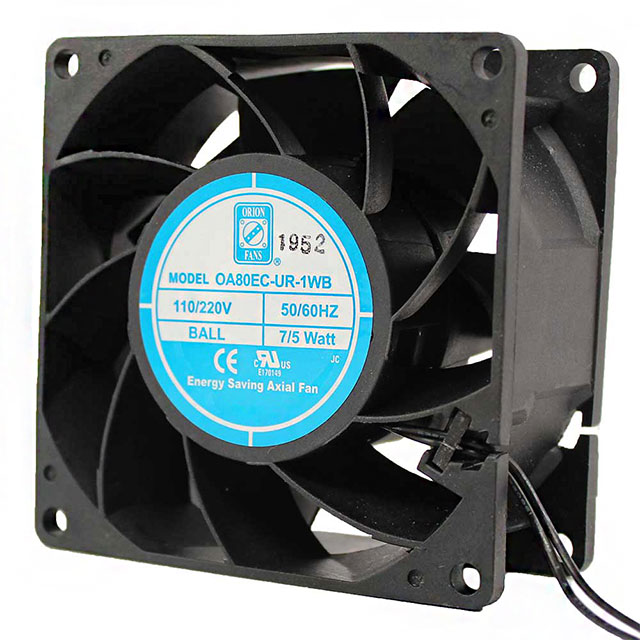

AC AXIAL FAN, 110V / 220V, SQUARE, 80 MM, 38 MM, BALL BEARING, 60 CFM
| Part | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Blade | Approval Agency | Voltage - Rated [Max] | Voltage - Rated [Min] | Air Flow | Air Flow | Termination | Fan Type | Weight | Weight | Operating Temperature [Max] | Operating Temperature [Min] | Features | Width [y] | Static Pressure | Static Pressure | Power (Watts) | Bearing Type | Noise | Size / Dimension [z] | Size / Dimension [x] | RPM | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 265 VAC | 85 VAC | 70000 Hrs | Polybutylene Terephthalate (PBT) | CE cURus TUV UR | 220 VAC | 110 VAC | 60 CFM | 1.68 m³/min | 2 Wire Leads | Tubeaxial | 180.08 g | 0.397 lb | 70 °C | -10 °C | Dual Voltage Electronic Commutation (EC) | 38 mm | 124.5 Pa | 0.5 in H2O | 6.3 W | Ball | 50 dB(A) | 80 mm | 80 mm | 4500 RPM | |
 ORION FANS | 265 VAC | 85 VAC | 70000 Hrs | Polybutylene Terephthalate (PBT) | CE cURus TUV UR | 220 VAC | 110 VAC | 39 CFM | 1.09 m³/min | 2 Wire Leads | Tubeaxial | 180.08 g | 0.397 lb | 70 °C | -10 °C | Dual Voltage Electronic Commutation (EC) | 38 mm | 54.8 Pa | 1.5 W | Ball | 32 dB | 80 mm | 80 mm | 3000 RPM | 0.22 in H2O |
