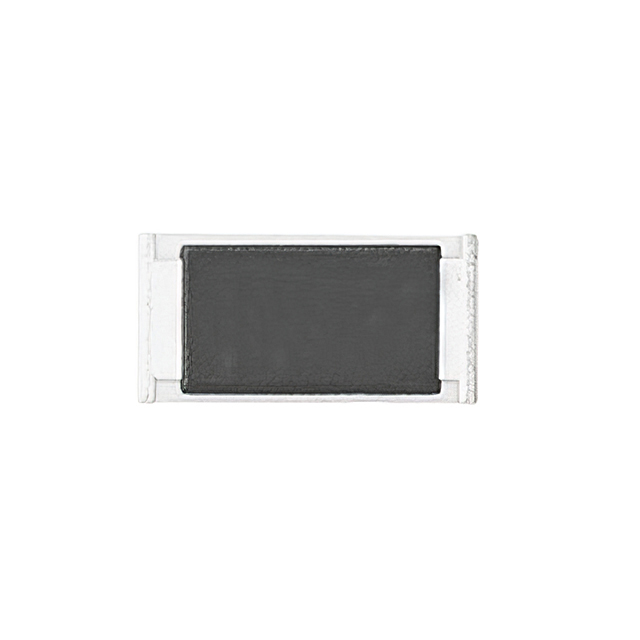

ERJ-1xNF Series

Manufacturer: Panasonic Electronic Components

Catalog

THICK FILM RESISTORS - SMD 1812 487KOHMS 1% AEC-Q200

Part	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Temperature Coefficient	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Ratings	Power (Watts)	Package / Case	Supplier Device Package	Supplier Device Package
Panasonic Electronic Components ERJ-12NF4873U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.177 in	4.5 mm	3.2 mm	0.126 in	2	3/4W	0.75 W	1812 (4532 Metric)	155 C	-55 C	487 kOhms	AEC-Q200
Panasonic Electronic Components ERJ-14NF64R9U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.126 "	3.2 mm	2.5 mm	0.098 in	2		0.5 W	1210	155 C	-55 C	64.9 Ohms		0.5 W	3225 Metric	1210
Panasonic Electronic Components ERJ-14NF3482U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.126 "	3.2 mm	2.5 mm	0.098 in	2		0.5 W	1210	155 C	-55 C	34.8 kOhms		0.5 W	3225 Metric	1210
Panasonic Electronic Components ERJ-14NF5491U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.126 "	3.2 mm	2.5 mm	0.098 in	2		0.5 W	1210	155 C	-55 C	5.49 kOhms		0.5 W	3225 Metric	1210
Panasonic Electronic Components ERJ-12NF7501U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.177 in	4.5 mm	3.2 mm	0.126 in	2	3/4W	0.75 W	1812 (4532 Metric)	155 C	-55 C	7.5 kOhms	AEC-Q200
Panasonic Electronic Components ERJ-14NF6490U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.126 "	3.2 mm	2.5 mm	0.098 in	2		0.5 W	1210	155 C	-55 C	649 Ohms		0.5 W	3225 Metric	1210
Panasonic Electronic Components ERJ-14NF1000U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.126 "	3.2 mm	2.5 mm	0.098 in	2		0.5 W	1210	155 C	-55 C	100 Ohms		0.5 W	3225 Metric	1210
Panasonic Electronic Components ERJ-1TNF1101U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200					2		1 W	2512	155 C	-55 C	1100 Ohms			6332 Metric		2512
Panasonic Electronic Components ERJ-14NF1270U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.126 "	3.2 mm	2.5 mm	0.098 in	2		0.5 W	1210	155 C	-55 C	127 Ohms		0.5 W	3225 Metric	1210
Panasonic Electronic Components ERJ-14NF2260U	Thick Film	0.7 mm	0.028 "	1 %	100 ppm/°C	Automotive AEC-Q200	0.126 "	3.2 mm	2.5 mm	0.098 in	2		0.5 W	1210	155 C	-55 C	226 Ohms		0.5 W	3225 Metric	1210
