ABS551 Series

Catalog

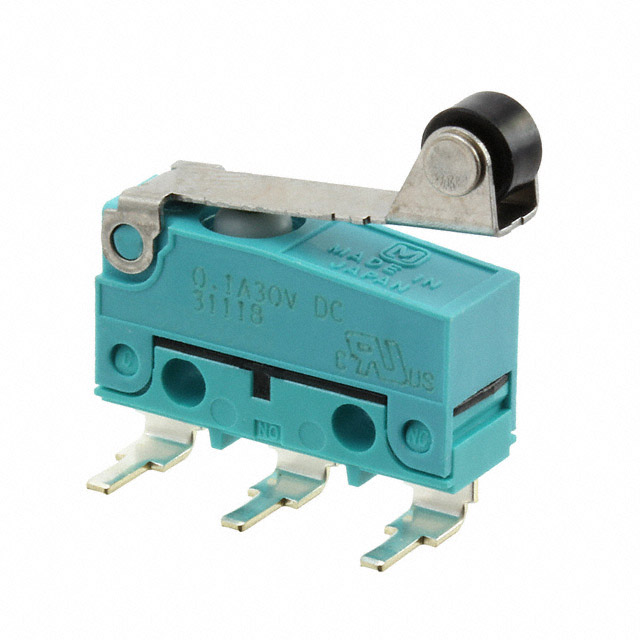

MICROSWITCH, SPDT, 0.1A, 30VDC, 1.47N ROHS COMPLIANT: YES

Part	Features	Termination Style	Release Force	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Circuit	Mounting Type	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Operating Force	Electrical Life	Operating Position	Operating Position	Switch Function	Actuator Type	Differential Travel	Differential Travel	Ingress Protection	Overtravel	Overtravel
Panasonic Electronic Components ABS5516549	Actuator Mounted Left Side	PC Pin	4.079 gf	0.1 in	2.5 mm	85 °C	-40 C	30 V	SPDT	Right Angle Through Hole	5000000 Cycles	0.032 "	0.81 mm	100 mA	60 gf	200000 Cycles	0.571 in	14.5 mm	On-Mom	Lever Roller	0.5 mm	0.02 in	IP50 - Dust Protected
Panasonic Electronic Components ABS5514349	Actuator Mounted Left Side	PC Pin	1.734 gf	0.11 in	2.8 mm	85 °C	-40 C	30 V	SPDT	Right Angle Through Hole	5000000 Cycles			100 mA	28 gf	200000 Cycles	0.46 in	11.7 mm	On-Mom	Lever Simulated Roller	0.8 mm	0.031 in	IP50 - Dust Protected	1.2 mm	0.047 "
