284046 Series

Catalog

TERM BLOCK PLUG 4POS 90DEG 5MM

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Contact Material	Torque - Screw	Torque - Screw	Positions Per Level	Wire Strip Length [Max]	Wire Strip Length [Min]	Number of Positions	Contact Mating Finish	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Screw Size	Plug Wire Entry	Insulation Height	Insulation Height	Mounting Type	Termination Style	Type	Material Flammability Rating	Number of Levels

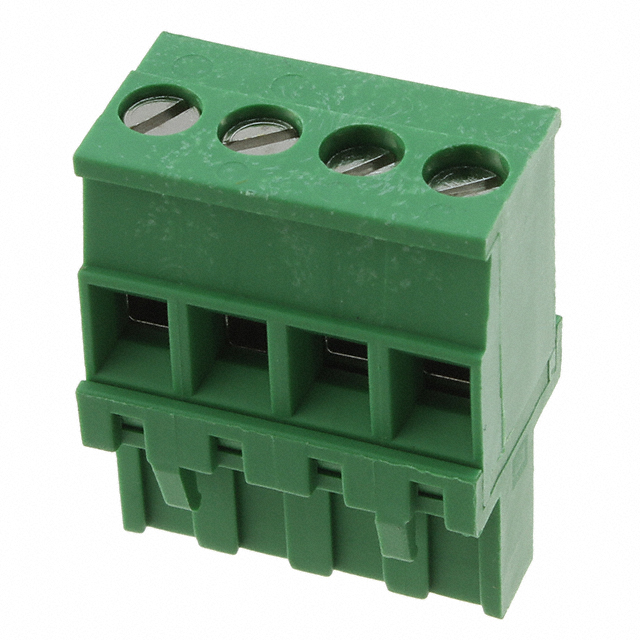

TE Connectivity Raychem Cable Protection 284046-4	30 AWG	12 AWG	300 V	Phosphor Bronze	0.79 Nm	7 Lb-In	4	7.5 mm	6 mm	4	Tin	5 mm	0.197 in	3 mm˛	0.05 mm˛	Retention Latches (Wire Side)	Green	-40 °C	110 °C	M3	90 °	25 mm	0.984 in	Free Hanging (In-Line)	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	1

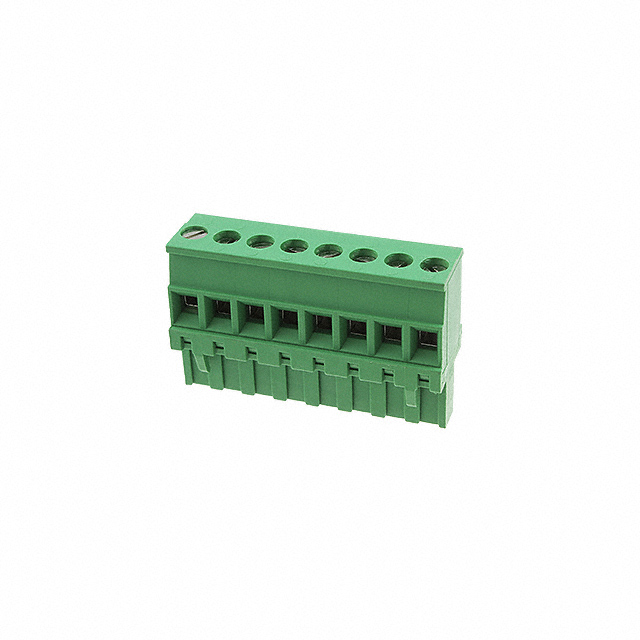

TE Connectivity Raychem Cable Protection 284046-8	30 AWG	12 AWG	300 V	Phosphor Bronze	0.79 Nm	7 Lb-In	8	7.5 mm	6 mm	8	Tin	5 mm	0.197 in	3 mm˛	0.05 mm˛	Retention Latches (Wire Side)	Green	-40 °C	110 °C	M3	90 °	25 mm	0.984 in	Free Hanging (In-Line)	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	1

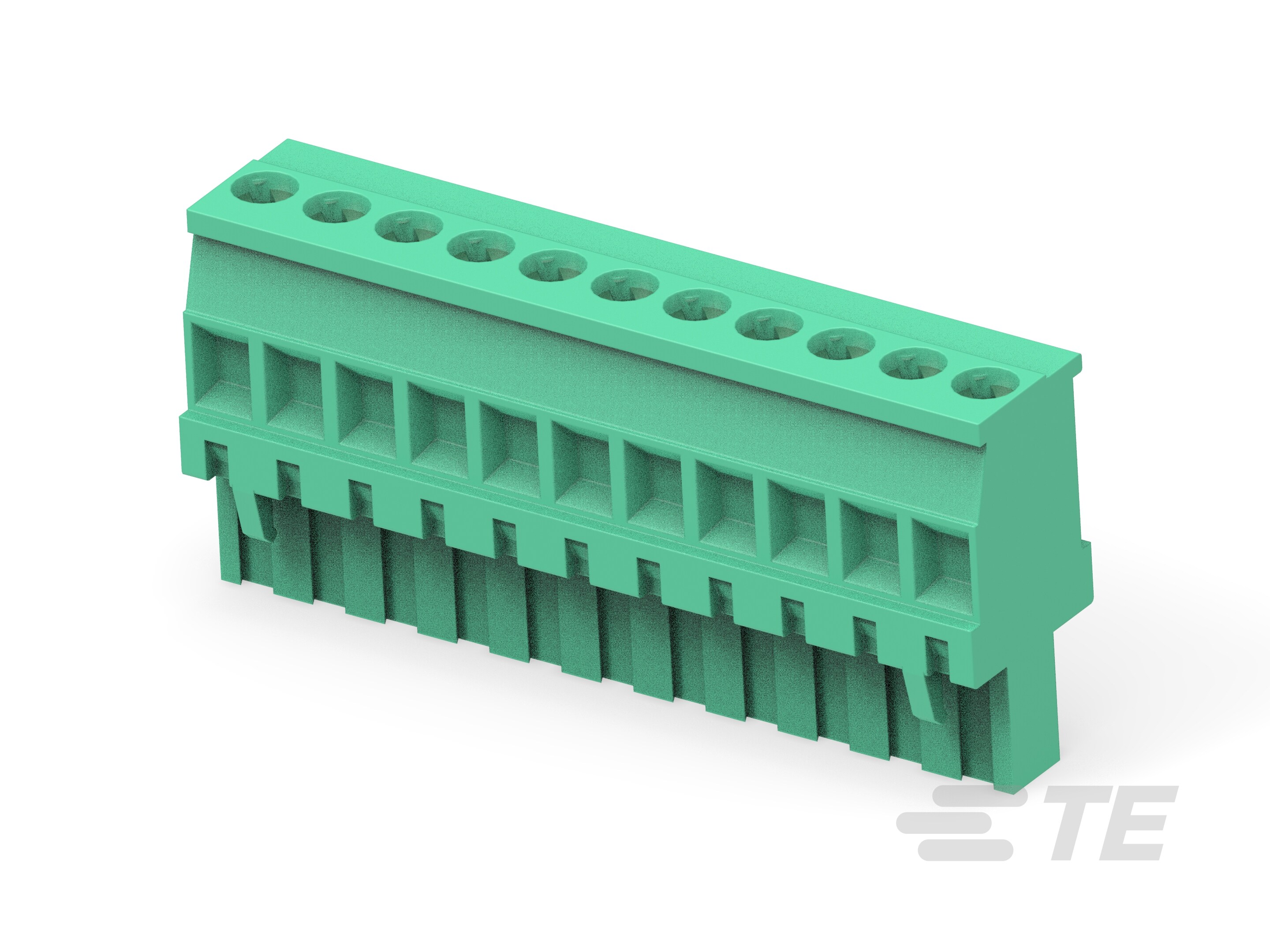

TE Connectivity Raychem Cable Protection 1-284046-1	30 AWG	12 AWG	300 V	Phosphor Bronze	0.79 Nm	7 Lb-In	11	7.5 mm	6 mm	11	Tin	5 mm	0.197 in	3 mm˛	0.05 mm˛	Retention Latches (Wire Side)	Green	-40 °C	110 °C	M3	90 °	25 mm	0.984 in	Free Hanging (In-Line)	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	1
