HRS-2C Series

Manufacturer: Adam Tech

Catalog

RECEPTACLE STRIP, 1.27MM, VERTIC

Part	Insulation Material	Contact Shape	Applications	Contact Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Connector Type	Mounting Type	Features	Fastening Type	Termination	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Post	Number of Rows [custom]	Number of Positions	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insulation Height [z]	Insulation Height [z]
Adam Tech HRS-2C-10-SG-SMT-P	Thermoplastic	Square	General Purpose	Phosphor Bronze	All	1.27 mm	0.05 in	0.05 in	1.27 mm	Female Socket	Receptacle	Surface Mount	Board Guide Pick and Place	Push-Pull	Solder	Flash	Black	Tin	2	10	Gold	UL94 V-0	-40 C	105 ░C	250 VAC	2.15 mm	0.085 in

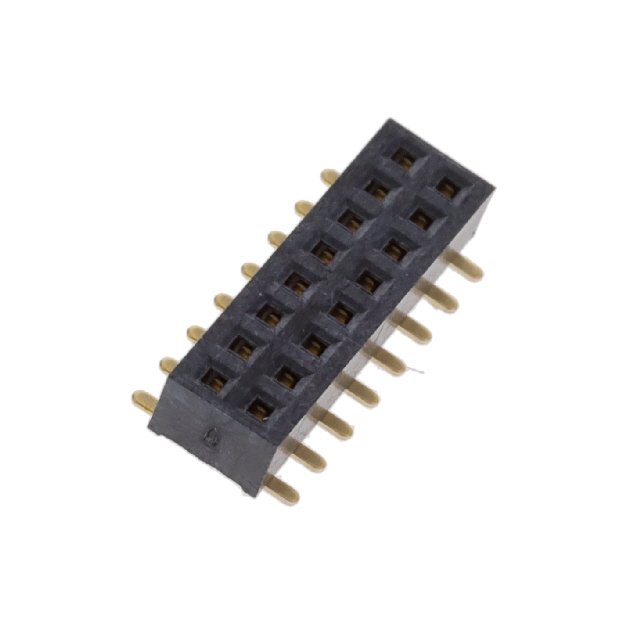

Adam Tech HRS-2C-16-G-SMT-P	Thermoplastic	Square	General Purpose	Phosphor Bronze	All	1.27 mm	0.05 in	0.05 in	1.27 mm	Female Socket	Receptacle	Surface Mount	Board Guide Pick and Place	Push-Pull	Solder	Flash	Black	Gold	2	16	Gold	UL94 V-0	-40 C	105 ░C	300 VAC	2.15 mm	0.085 in
Adam Tech HRS-2C-18-SG-SMT-P	Thermoplastic	Square	General Purpose	Phosphor Bronze	All	1.27 mm	0.05 in	0.05 in	1.27 mm	Female Socket	Receptacle	Surface Mount	Board Guide Pick and Place	Push-Pull	Solder	Flash	Black	Tin	2	18	Gold	UL94 V-0	-40 C	105 ░C	250 VAC	2.15 mm	0.085 in
Adam Tech HRS-2C-12-SG-SMT-P	Thermoplastic	Square	General Purpose	Phosphor Bronze	All	1.27 mm	0.05 in	0.05 in	1.27 mm	Female Socket	Receptacle	Surface Mount	Board Guide Pick and Place	Push-Pull	Solder	Flash	Black	Tin	2	12	Gold	UL94 V-0	-40 C	105 ░C	250 VAC	2.15 mm	0.085 in
Adam Tech HRS-2C-04-SG-SMT-P	Thermoplastic	Square	General Purpose	Phosphor Bronze	All	1.27 mm	0.05 in	0.05 in	1.27 mm	Female Socket	Receptacle	Surface Mount	Board Guide Pick and Place	Push-Pull	Solder	Flash	Black	Tin	2	4	Gold	UL94 V-0	-40 C	105 ░C	250 VAC	2.15 mm	0.085 in
Adam Tech HRS-2C-06-SG-SMT-P	Thermoplastic	Square	General Purpose	Phosphor Bronze	All	1.27 mm	0.05 in	0.05 in	1.27 mm	Female Socket	Receptacle	Surface Mount	Board Guide Pick and Place	Push-Pull	Solder	Flash	Black	Tin	2	6	Gold	UL94 V-0	-40 C	105 ░C	250 VAC	2.15 mm	0.085 in
Adam Tech HRS-2C-08-G-SMT-P	Thermoplastic	Square	General Purpose	Phosphor Bronze	All	1.27 mm	0.05 in	0.05 in	1.27 mm	Female Socket	Receptacle	Surface Mount	Board Guide Pick and Place	Push-Pull	Solder	Flash	Black	Gold	2	8	Gold	UL94 V-0	-40 C	105 ░C	300 VAC	2.15 mm	0.085 in
