QPSF-200 Series

Manufacturer: Qualtek

Catalog

AC/DC CONVERTER 24V 150W

Part	Type	Applications	Mounting Type	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Features	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Voltage - Output 1
Qualtek QPSF-200-24	Open Frame	ITE (Commercial)	Chassis Mount	6.25 A	70 °C	-20 °C	150 W	202 W	Adjustable Output PFC Universal Input	89 %	5.04 "	3.01 in	34.6 mm	128 mm	1.36 in	76.5 mm	CB CE cURus	1	90 VAC 120 VDC	264 VAC 370 VDC	3000 V	24 V

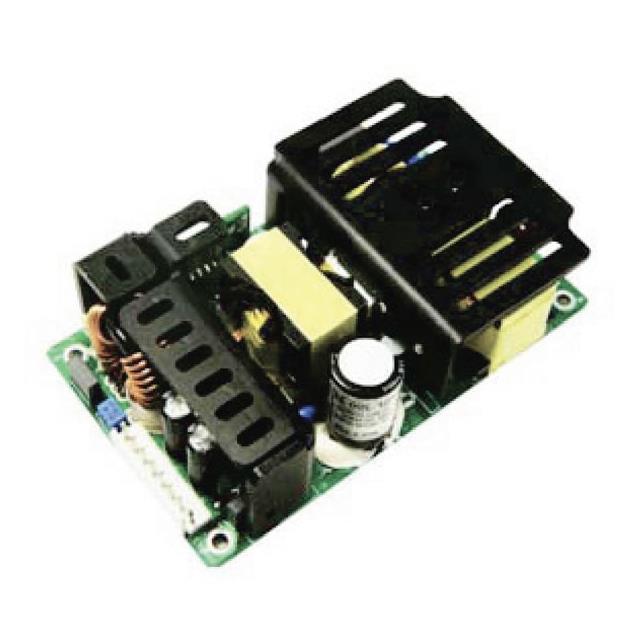

Qualtek QPSF-200-12	Open Frame	ITE (Commercial)	Chassis Mount	12.5 A	70 °C	-20 °C	150 W 200 W		Adjustable Output PFC Universal Input	88.5 %	5.04 "	3.01 in	34.6 mm	128 mm	1.36 in	76.5 mm	CB CE cURus	1	90 VAC 120 VDC	264 VAC 370 VDC	3000 V	12 V
Qualtek QPSF-200-48	Open Frame	ITE (Commercial)	Chassis Mount	3.2 A	70 °C	-20 °C	154 W	202 W	Adjustable Output PFC Universal Input	89 %	5.04 "	3.01 in	34.6 mm	128 mm	1.36 in	76.5 mm	CB CE cURus	1	90 VAC 120 VDC	264 VAC 370 VDC	3000 V	48 V
Qualtek QPSF-200-27	Open Frame	ITE (Commercial)	Chassis Mount	5.5 A	70 °C	-20 °C	149 W 200 W		Adjustable Output PFC Universal Input	89 %	5.04 "	3.01 in	34.6 mm	128 mm	1.36 in	76.5 mm	CB CE cURus	1	90 VAC 120 VDC	264 VAC 370 VDC	3000 V	27 V
