VLD2UNNB Series
Manufacturer: Carling Technologies
Beta
⌘K

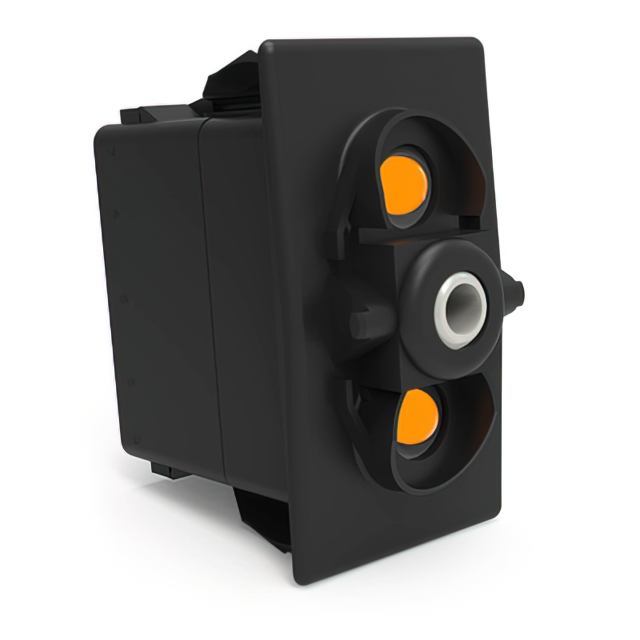

SWITCH ROCKER DPDT 20A 12V
| Part | Mechanical Life | Electrical Life | Mounting Type | Actuator Marking | Voltage Rating - DC | Current Rating (Amps) | Switch Function | Termination Style | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Actuator Type | Illumination Type, Color | Circuit | Illumination Voltage (Nominal) | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | Panel Mount Snap-In | Varies by Cap | 12 V | 20 A | Mom-Off-Mom | Quick Connect - 0.250" (6.3mm) | CSA UL VDE | 36.83 mm | 21.08 mm | 85 °C | -40 C | IP66 IP68 | Actuator Arm Cap Required Illuminated | Amber LED | DPDT | 12 VDC | |
 Carling Technologies | 100000 Cycles | 100000 Cycles | Panel Mount Snap-In | No Marking | 12 V | 20 A | Mom-Off-Mom | Quick Connect - 0.250" (6.3mm) | CSA UL VDE | 36.83 mm | 21.08 mm | 85 °C | -40 C | IP66 IP68 | Convex (Reverse V) - Illuminated | Amber LED | DPDT | 12 VDC | Black |
Carling Technologies | 100000 Cycles | 100000 Cycles | Panel Mount Snap-In | High Beam - Low Beam Vertical | 12 V | 20 A | Mom-Off-Mom | Quick Connect - 0.250" (6.3mm) | CSA UL VDE | 36.83 mm | 21.08 mm | 85 °C | -40 C | IP66 IP68 | Convex (Reverse V) - Illuminated | Amber LED | DPDT | 12 VDC | Black |
