LSA29 Series

Manufacturer: ConductRF

Catalog

CBL ASSY SMA PLUG TO PLUG 16"

Part	1st Connector	Color	Operating Temperature [Min]	Operating Temperature [Max]	2nd Contact Gender	Length [x]	Length [x]	1st Connector Mounting Type	Connector Impedance	Cable Type	Style	Overall Impedance	2nd Connector Mounting Type	1st Contact Gender	2nd Connector	Frequency - Max [Max]	Features	Length	Length	Length	1st Connector Mounting Feature
ConductRF LSA29-S1S1-S16	SMA Plug	Blue	-55 C	125 °C	Male	16 in	406.4 mm	Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	SMA to SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded
ConductRF LSA29-S1S1-S24	SMA Plug	Blue	-55 C	125 °C	Male	24 in	609.6 mm	Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	SMA to SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded
ConductRF LSA29-N1N1-S48		Blue	-55 C	125 °C	Male			Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	N-Type to N-Type	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	18 GHz	Shielded	4 ft	1200 mm	48 in

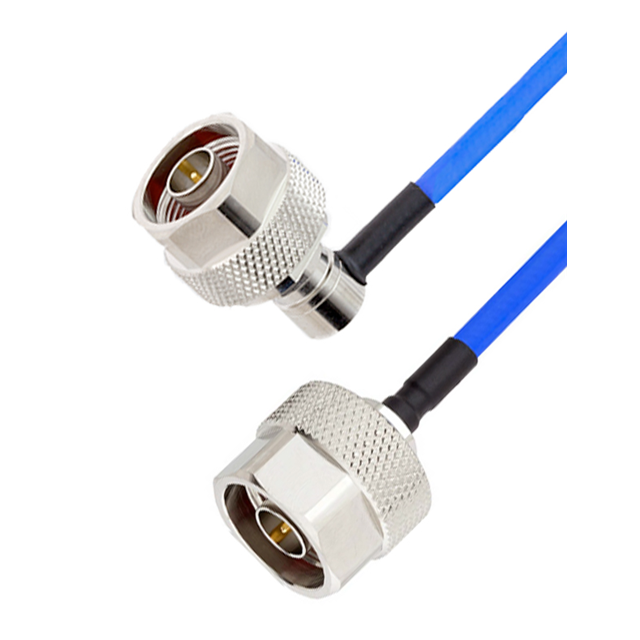

ConductRF LSA29-N1N2-S36		Blue	-55 C	125 °C	Male			Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	N-Type to N-Type	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug Right Angle	18 GHz	Shielded		91.44 cm	36 in
ConductRF LSA29-S1S1-S48	SMA Plug	Blue	-55 C	125 °C	Male			Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	SMA to SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded	4 ft	1200 mm	48 in

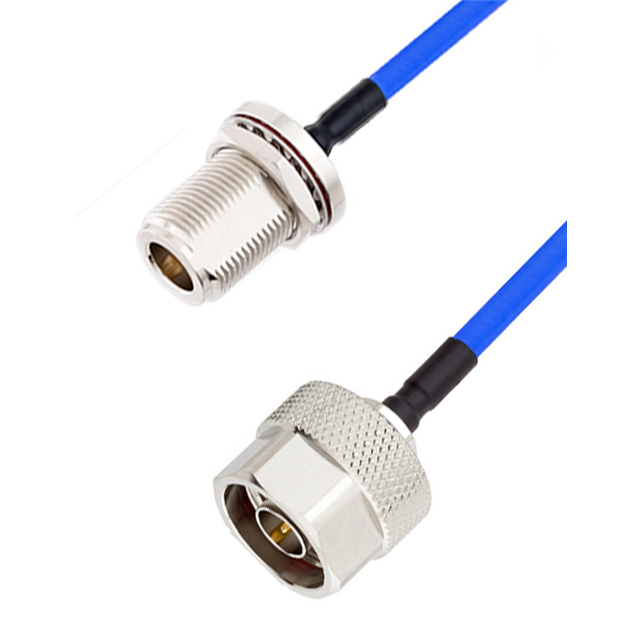

ConductRF LSA29-N1N3-S48	N-Type Jack	Blue	-55 C	125 °C	Male			Panel Mount	50 Ohms	3.58mm OD Coaxial Cable	N-Type to N-Type	50 Ohms	Free Hanging (In-Line)	Female	N-Type Plug	18 GHz	Shielded	4 ft	1200 mm	48 in	Bulkhead - Front Side Nut
ConductRF LSA29-S1S1-S18	SMA Plug	Blue	-55 C	125 °C	Male			Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	SMA to SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded		457.2 mm	18 in

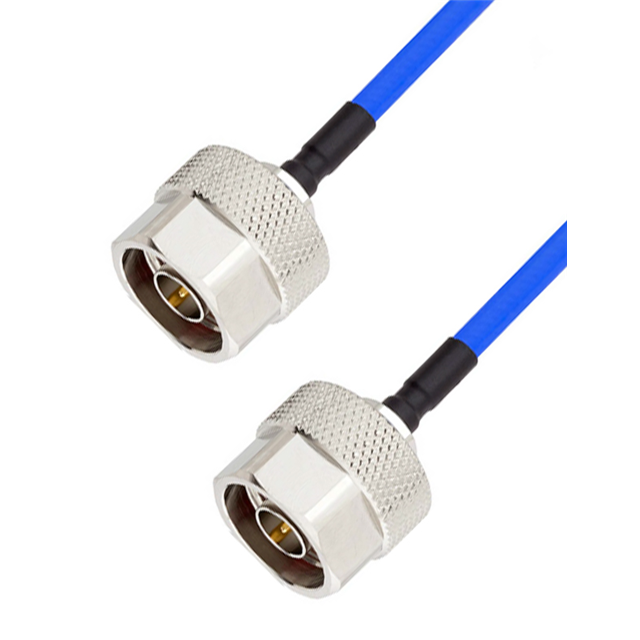

ConductRF LSA29-N1N1-S12		Blue	-55 C	125 °C	Male	12 in	304.8 mm	Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	N-Type to N-Type	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	18 GHz	Shielded
ConductRF LSA29-N1N1-S36		Blue	-55 C	125 °C	Male			Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	N-Type to N-Type	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	18 GHz	Shielded		91.44 cm	36 in
ConductRF LSA29-S1S1-S60	SMA Plug	Blue	-55 C	125 °C	Male			Free Hanging (In-Line)	50 Ohms	3.58mm OD Coaxial Cable	SMA to SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded	5 ft	1.5 m	60 in
