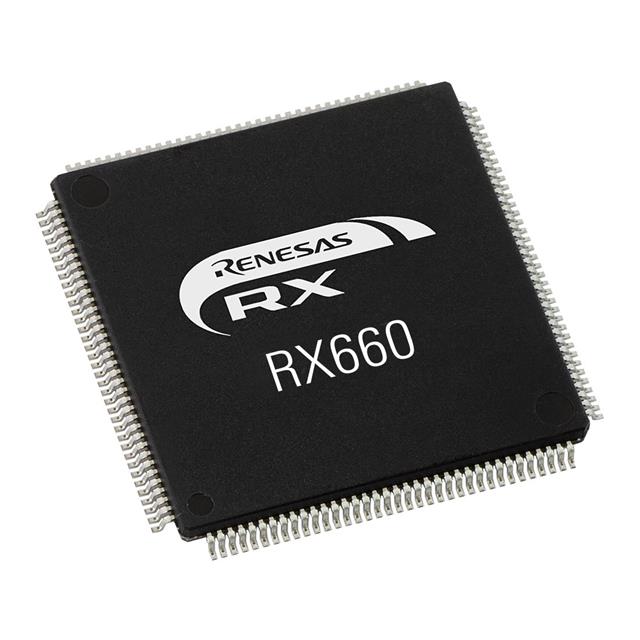

R5F56609 Series

Manufacturer: Renesas Electronics Corporation

Catalog

Catalog

IC MCU 32BIT 1MB FLASH 144LQFP

...

Part	Mounting Type	Core Processor	RAM Size	Supplier Device Package	EEPROM Size	Speed	Number of I/O	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Data Converters	Package / Case	Connectivity	Core Size	Program Memory Size	Peripherals	Program Memory Type	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]
Renesas Electronics Corporation R5F56609DDFB#10	Surface Mount	RXv3	128 K	144-LFQFP (20x20)	32K x 8	120 MHz	131	5.5 V	2.7 V	A/D 24x12b D/A 2x12b	144-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	85 C	-40 ¯C
Renesas Electronics Corporation R5F56609BDFP#30	Surface Mount	RXv3	128 K	100-LFQFP (14x14)	32K x 8	120 MHz	91	5.5 V	2.7 V	A/D 24x12b D/A 2x12b	100-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	85 C	-40 ¯C
Renesas Electronics Corporation R5F56609CDFN#10	Surface Mount	RXv3	128 K	80-LFQFP (12x12)	32K x 8	120 MHz	69	5.5 V	2.7 V	A/D 17x12b D/A 2x12b	80-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	85 C	-40 ¯C
Renesas Electronics Corporation R5F56609ADFB#10	Surface Mount	RXv3	128 K	144-LFQFP (20x20)	32K x 8	120 MHz	133	5.5 V	2.7 V	A/D 24x12b D/A 2x12b	144-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	85 C	-40 ¯C
Renesas Electronics Corporation R5F56609AGFL#30	Surface Mount	RXv3	128 K	48-LFQFP (7x7)	32K x 8	120 MHz	39	5.5 V	2.7 V	A/D 10x12b D/A 2x12b	48-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	105 °C	-40 °C
Renesas Electronics Corporation R5F56609CDFP#30	Surface Mount	RXv3	128 K	100-LFQFP (14x14)	32K x 8	120 MHz		5.5 V	2.7 V	A/D 24x12b D/A 2x12b	100-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	85 C	-40 ¯C
Renesas Electronics Corporation R5F56609BGFM#30	Surface Mount	RXv3	128 K	64-LFQFP (10x10)	32K x 8	120 MHz	55	5.5 V	2.7 V	A/D 14x12b D/A 2x12b	64-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	105 °C	-40 °C
Renesas Electronics Corporation R5F56609ADFN#30	Surface Mount	RXv3	128 K	80-LFQFP (12x12)	32K x 8	120 MHz	71	5.5 V	2.7 V	A/D 17x12b D/A 2x12b	80-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	85 C	-40 ¯C
Renesas Electronics Corporation R5F56609EDFB#10	Surface Mount	RXv3	128 K	144-LFQFP (20x20)	32K x 8	120 MHz	132	5.5 V	2.7 V	A/D 24x12b D/A 2x12b	144-LQFP	CANbus EBI/EMI I2C LINbus SCI SPI	32-Bit	1 MB	DMA LVD POR PWM WDT	FLASH	External Internal	85 C	-40 ¯C
Renesas Electronics Corporation R5F56609BGFP#30
