FM20204VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

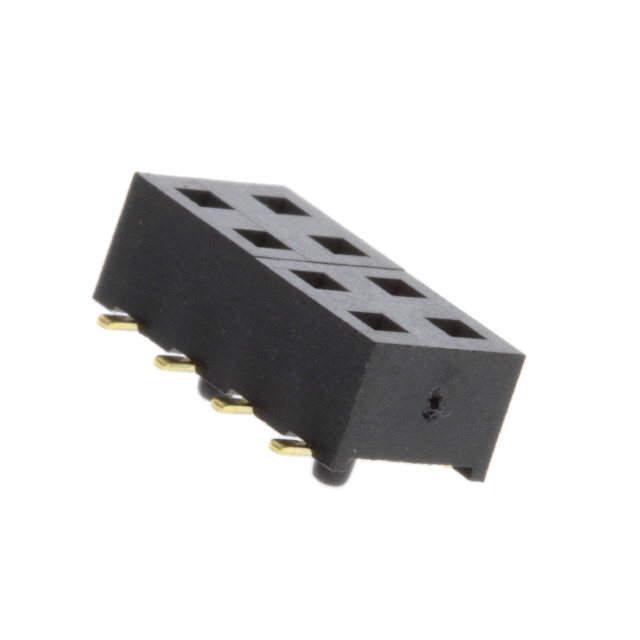

RECEPTACLE, SMT, LOW PROFILE, DU
| Part | Contact Shape | Insulation Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Mounting Type | Insulation Color | Ingress Protection | Fastening Type | Contact Finish - Mating | Termination | Contact Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Connector Type | Number of Rows | Insulation Height | Insulation Height | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Square | Nylon 6 Polyamide (PA6) | Copper Alloy | -40 C | 105 ░C | 8 | Surface Mount | Black | IP00 | Push-Pull | Gold | Solder | Female Socket | All | 0.1 " | 2.54 mm | 2 | Receptacle | ||||
 METZ CONNECT USA Inc. | Square | Polyester Polyethylene Terephthalate (PET) | Copper Alloy | -40 C | 105 ░C | 4 | Surface Mount | Black | IP00 | Push-Pull | Gold | Solder | Female Socket | All | 0.1 " | 2.54 mm | Receptacle | 1 | 0.28 in | 7.1 mm | Flash |
