Standard Timer Series

Catalog

CONNECTOR HOUSING, RCPT, 4POS, 2.5MM ROHS COMPLIANT: YES

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Mounting Type	Insulation Material	Fastening Type	Number of Rows	Number of Positions	Pitch	Pitch	Contact Type	Type	Pin or Socket	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Wire Gauge

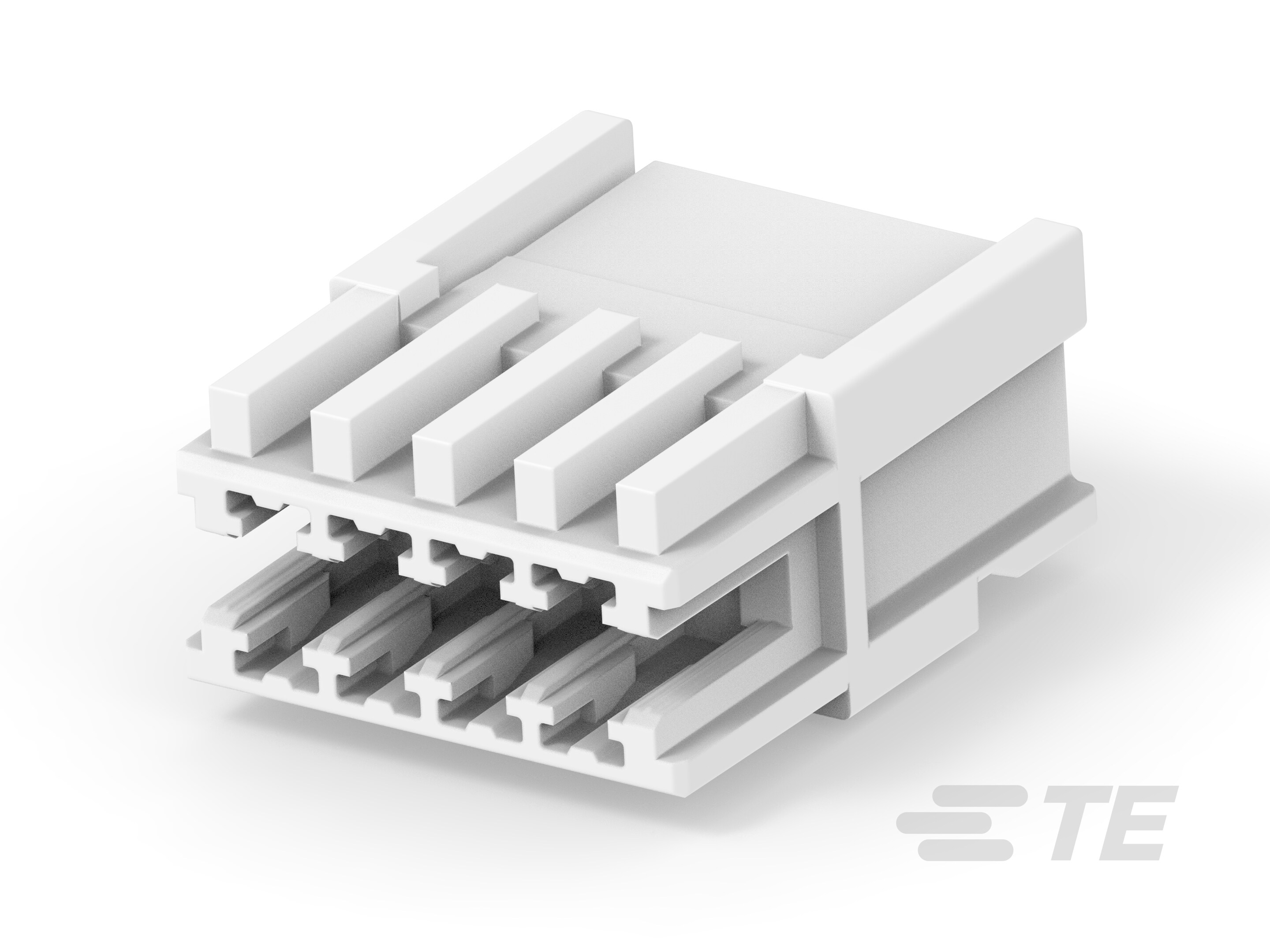

TE Connectivity AMP Connectors 1-2391423-4	Natural	-40 C	105 ░C	Receptacle	Crimp	Free Hanging (In-Line)	Nylon Polyamide (PA)	Push-Pull	1	4	2.5 mm	0.098 in	Female Socket

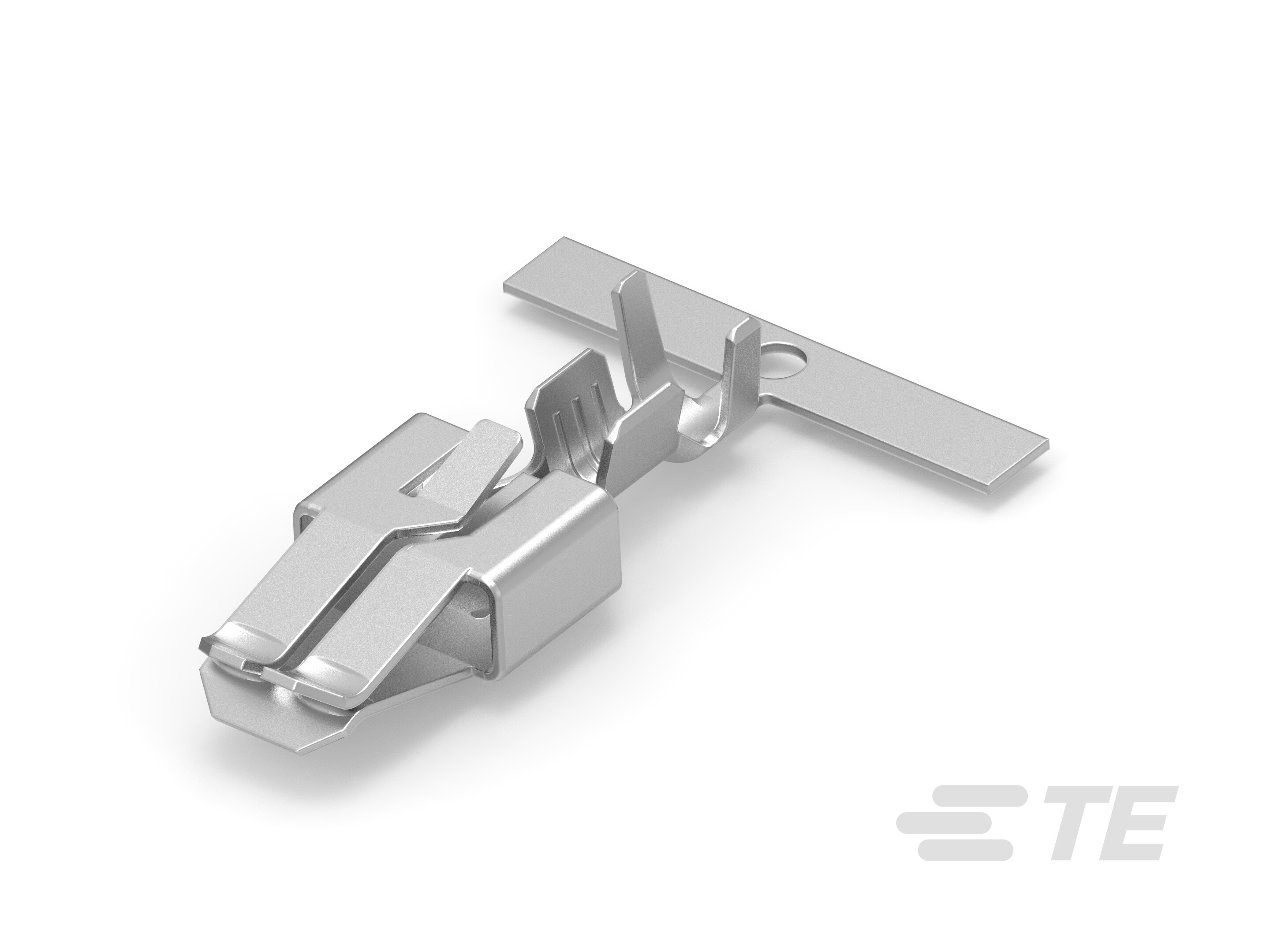

TE Connectivity AMP Connectors 969036-4

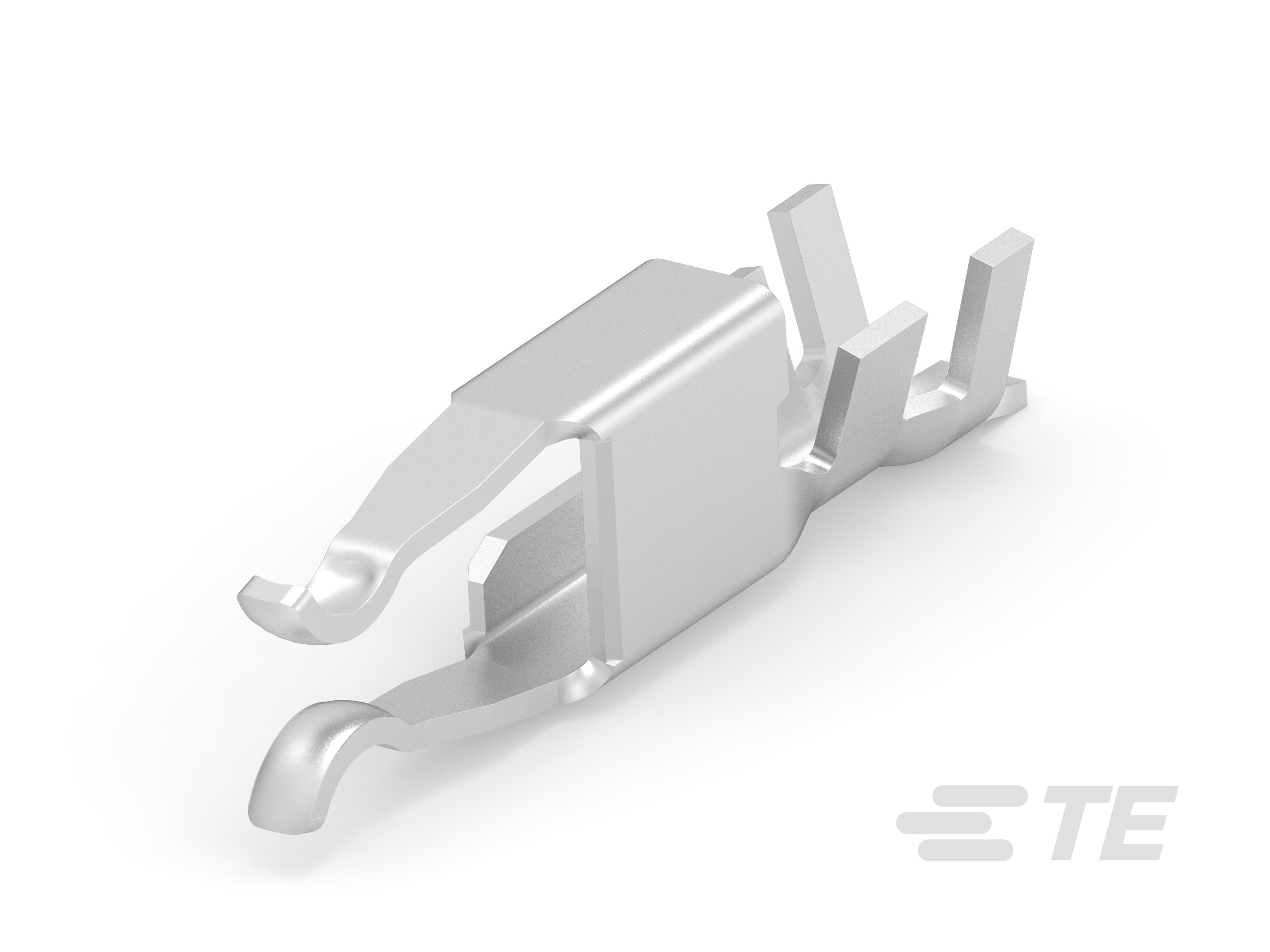

TE Connectivity AMP Connectors 2391430-1					Crimp									Lubricated Stamped	Non-Gendered	Tin	24 AWG	22 AWG
TE Connectivity AMP Connectors 2-2391423-5	Natural	-40 C	105 ░C	Receptacle	Crimp	Free Hanging (In-Line)	Nylon Polyamide (PA)	Push-Pull	1	5	2.5 mm	0.098 in	Female Socket
TE Connectivity AMP Connectors 2391423-5	Natural	-40 C	105 ░C	Receptacle	Crimp	Free Hanging (In-Line)	Nylon Polyamide (PA)	Push-Pull	1	5	2.5 mm	0.098 in	Female Socket

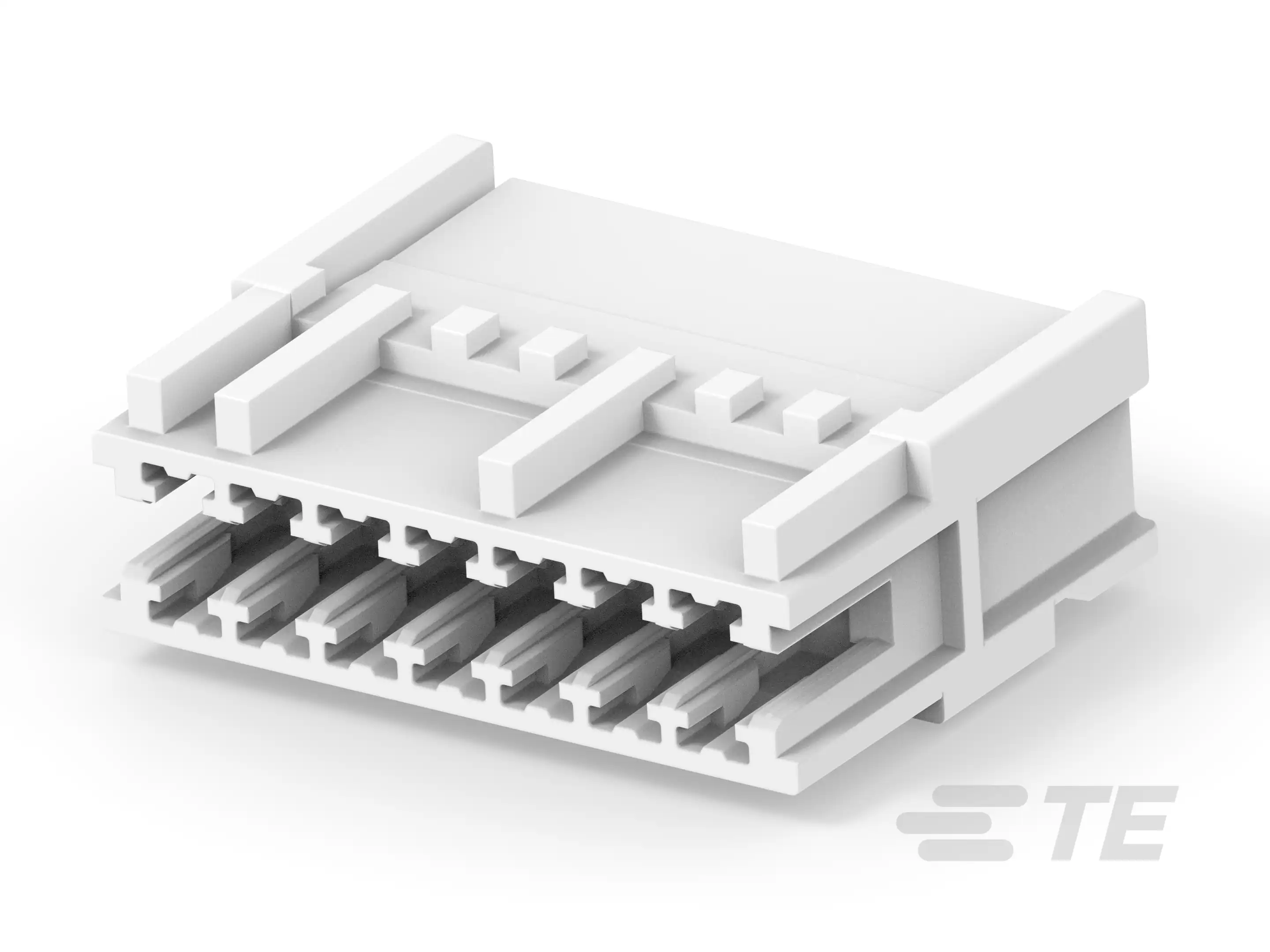

TE Connectivity AMP Connectors 2391423-7	Natural	-40 C	105 ░C	Receptacle	Crimp	Free Hanging (In-Line)	Nylon Polyamide (PA)	Push-Pull	1	7	2.5 mm	0.098 in	Female Socket
TE Connectivity AMP Connectors 2391430-2					Crimp									Stamped	Socket	Tin			20 AWG
TE Connectivity AMP Connectors 1-2391423-3	Black	-40 C	105 ░C	Receptacle	Crimp	Free Hanging (In-Line)	Nylon Polyamide (PA)	Push-Pull	1		2.5 mm	0.098 in	Female Socket
TE Connectivity AMP Connectors 1-188685-2					PCB Solder										Socket	Tin
TE Connectivity AMP Connectors 2404460-3	Natural	-40 C	105 ░C	Receptacle	Crimp	Free Hanging (In-Line)	Nylon Polyamide (PA)	Push-Pull	1		5 mm	0.197 in	Female Socket
