93254 Series

Catalog

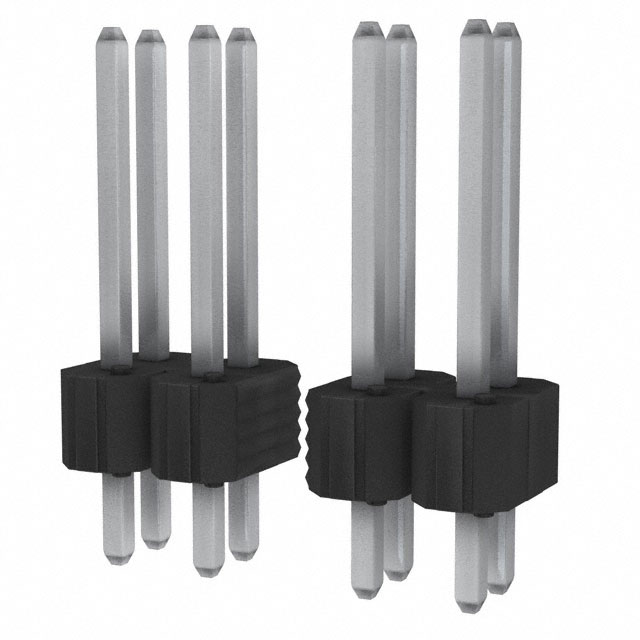

CONN HEADER VERT 6POS 2.54MM

Part	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows	Shrouding	Termination	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Insulation Color	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Mounting Type	Fastening Type	Contact Finish - Mating
Amphenol ICC (FCI) 93254-406HLF	Tin	0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	2.54 çm	100 çin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	6	0.11 in	2.79 mm	Through Hole	Push-Pull
Amphenol ICC (FCI) 93254-456HLF	Tin	0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	2.54 çm	100 çin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	56	0.11 in	2.79 mm	Through Hole	Push-Pull
Amphenol ICC (FCI) 93254-172HLF		0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	72	0.11 in	2.79 mm	Through Hole	Push-Pull	Gold or Gold GXT™
Amphenol ICC (FCI) 93254-470HLF	Tin	0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	2.54 çm	100 çin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	70	0.11 in	2.79 mm	Through Hole	Push-Pull
Amphenol ICC (FCI) 93254-154HLF		0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	54	0.11 in	2.79 mm	Through Hole	Push-Pull	Gold or Gold GXT™
Amphenol ICC (FCI) 93254-132HLF		0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "		0.11 in	2.79 mm	Through Hole	Push-Pull	Gold or Gold GXT™
Amphenol ICC (FCI) 93254-468HLF	Tin	0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	2.54 çm	100 çin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	68	0.11 in	2.79 mm	Through Hole	Push-Pull
Amphenol ICC (FCI) 93254-112HLF		0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	12	0.11 in	2.79 mm	Through Hole	Push-Pull	Gold or Gold GXT™
Amphenol ICC (FCI) 93254-418HLF	Tin	0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	2.54 çm	100 çin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	18	0.11 in	2.79 mm	Through Hole	Push-Pull
Amphenol ICC (FCI) 93254-128HLF		0.1 in	2.54 mm	2	Unshrouded	Solder	Header	2.54 mm	0.1 in	Phosphor Bronze	Black	Male Pin	All	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	UL94 V-0	0.353 in	8.97 mm	14.3 mm	0.563 "	28	0.11 in	2.79 mm	Through Hole	Push-Pull	Gold or Gold GXT™
