FSI-110 Series

Catalog

CONN STACKING 20POS SMD GOLD

Part	Features	Number of Positions	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]

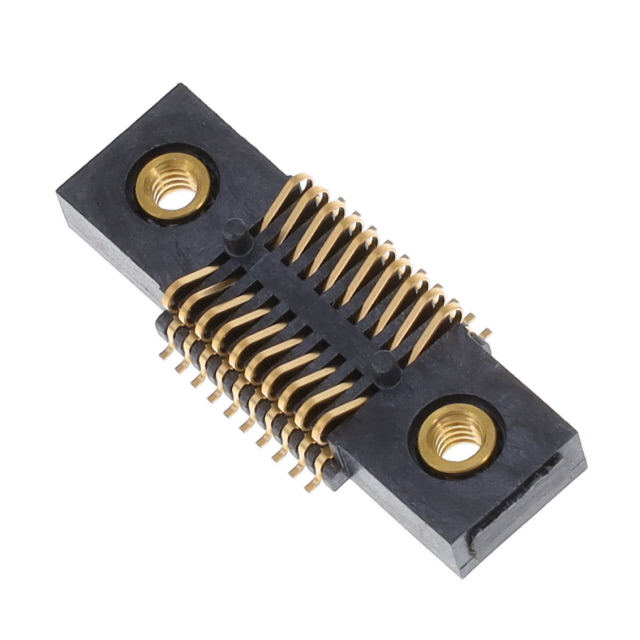

Samtec Inc. FSI-110-03-G-D-E-AD	Board Guide Mating Guide Mounting Flange	20	2	Gold	0.039 in	1 mm	10 Áin	0.25 Ám	Surface Mount	0.118 in	3 mm
Samtec Inc. FSI-110-10-L-S-WT	Solder Retention	10	1	Gold	0.039 in	1 mm	10 Áin	0.25 Ám	Surface Mount			10 mm	0.394 in
Samtec Inc. FSI-110-03-G-D-E-AT	Mating Guide Mounting Flange	20	2	Gold	0.039 in	1 mm	10 Áin	0.25 Ám	Surface Mount	0.118 in	3 mm
Samtec Inc. FSI-110-06-L-D-AT	Mating Flange	20	2	Gold	0.039 in	1 mm	10 Áin	0.25 Ám	Surface Mount	0.236 in	6 mm
Samtec Inc. FSI-110-10-S-D		20	2	Gold	0.039 in	1 mm	30 Áin	0.76 Ám	Surface Mount			10 mm	0.394 in
Samtec Inc. FSI-110-03-G-D-E-AD-K-TR	Board Guide Mating Guide Mounting Flange Pick and Place	20	2	Gold	0.039 in	1 mm	10 Áin	0.25 Ám	Surface Mount	0.118 in	3 mm
Samtec Inc. FSI-110-10-S-D-P-TR	Pick and Place	20	2	Gold	0.039 in	1 mm	30 Áin	0.76 Ám	Surface Mount			10 mm	0.394 in
Samtec Inc. FSI-110-03-G-D-M-AT-K-TR	Mating Guide Mounting Flange Pick and Place	20	2	Gold	0.039 in	1 mm	10 Áin	0.25 Ám	Surface Mount	0.118 in	3 mm
Samtec Inc. FSI-110-06-L-D-AD-TR	Board Guide Mating Guide	20	2	Gold	0.039 in	1 mm	10 Áin	0.25 Ám	Surface Mount	0.236 in	6 mm
Samtec Inc. FSI-110-03-G-S-M-AD-TR	Board Guide Mating Guide Mounting Flange	10	1	Gold	0.039 in	1 mm	10 Áin	0.25 Ám	Surface Mount	0.118 in	3 mm
