MU10 Series

Catalog

CONN SPADE TERM 10-12AWG #8

Part	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Termination	Contact Finish	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Contact Material	Features	Insulation	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Number of Wire Entries	Color	Width - Outer Edges [x]	Thickness	Thickness
3M Electronic Specialty MU10-8FFBK	0.25 in	6.35 mm	7.37 mm	0.29 in	Crimp	Tin	18.54 mm	0.73 in	8 Stud	Copper ETP	Butted Seam	Non-Insulated	Flanged	10 AWG	12 AWG	Free Hanging (In-Line)	0.32 in	8.13 mm
3M Electronic Specialty MU10-10FK	0.25 in	6.35 mm	7.37 mm	0.29 in	Crimp	Tin	18.54 mm	0.73 in	10 Stud	Copper ETP	Butted Seam	Non-Insulated	Standard	10 AWG	12 AWG	Free Hanging (In-Line)	0.38 in	9.65 mm
3M Electronic Specialty MU10BCX					Crimp							Non-Insulated	Butt Splice Individual Openings Inline	10 AWG	12 AWG				2

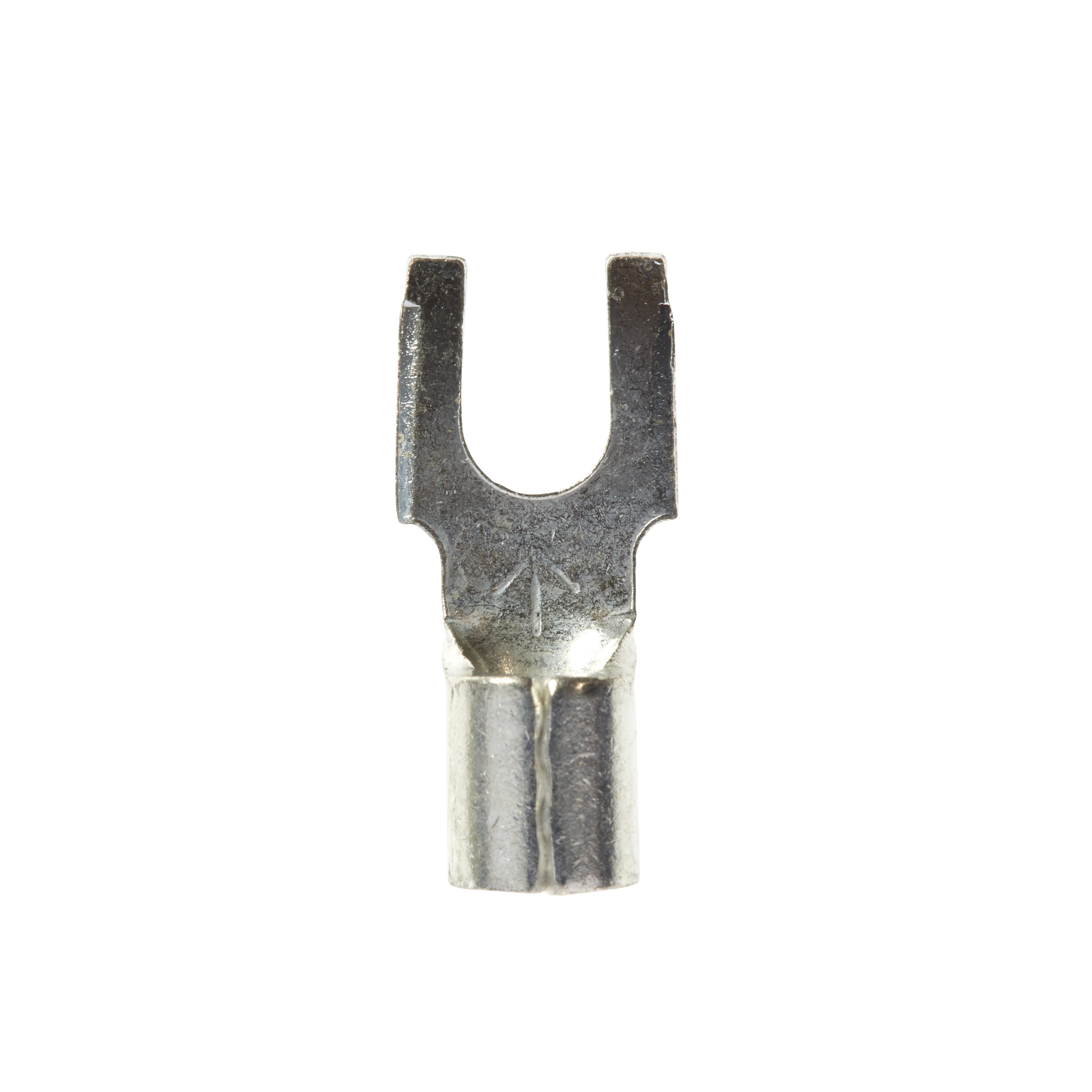

3M Electronic Specialty MU10-8FBK	0.25 in	6.35 mm	7.37 mm	0.29 in	Crimp	Tin	18.54 mm	0.73 in	8 Stud	Copper	Butted Seam	Non-Insulated	Standard	10 AWG	12 AWG	Free Hanging (In-Line)	0.32 in	8.13 mm
3M Electronic Specialty MU10BCHTX-BOTTLE					Crimp							Fully Insulated	Butt Splice Individual Openings Inline	10 AWG	12 AWG				2	Yellow

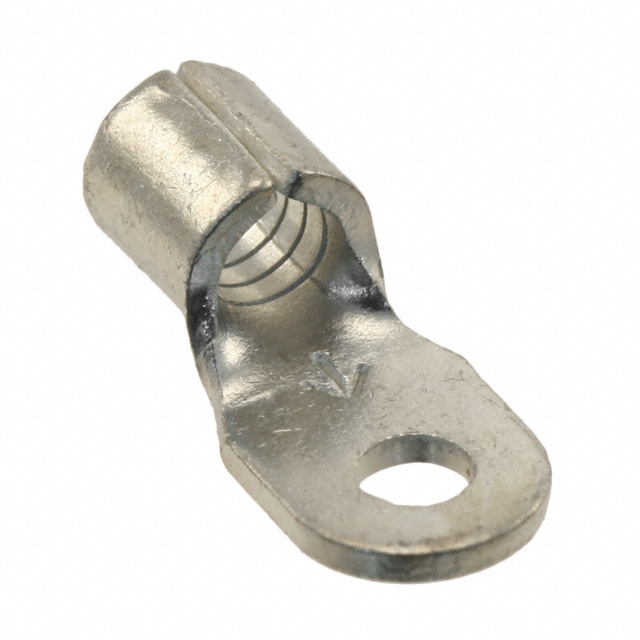

3M Electronic Specialty MU10-4R/SK					Crimp	Tin	17.27 mm	0.68 "	4 Stud	Copper ETP		Non-Insulated	Circular	10 AWG	12 AWG	Free Hanging (In-Line)		7.11 mm			0.28 in	0.04 in	1.02 mm
3M Electronic Specialty MU10-10FHTK	0.25 in	6.35 mm	7.11 mm	0.28 in	Crimp	Nickel	18.54 mm	0.73 in	10 Stud	Steel	Butted Seam	Non-Insulated	Standard	10 AWG	12 AWG	Free Hanging (In-Line)	0.38 in	9.65 mm

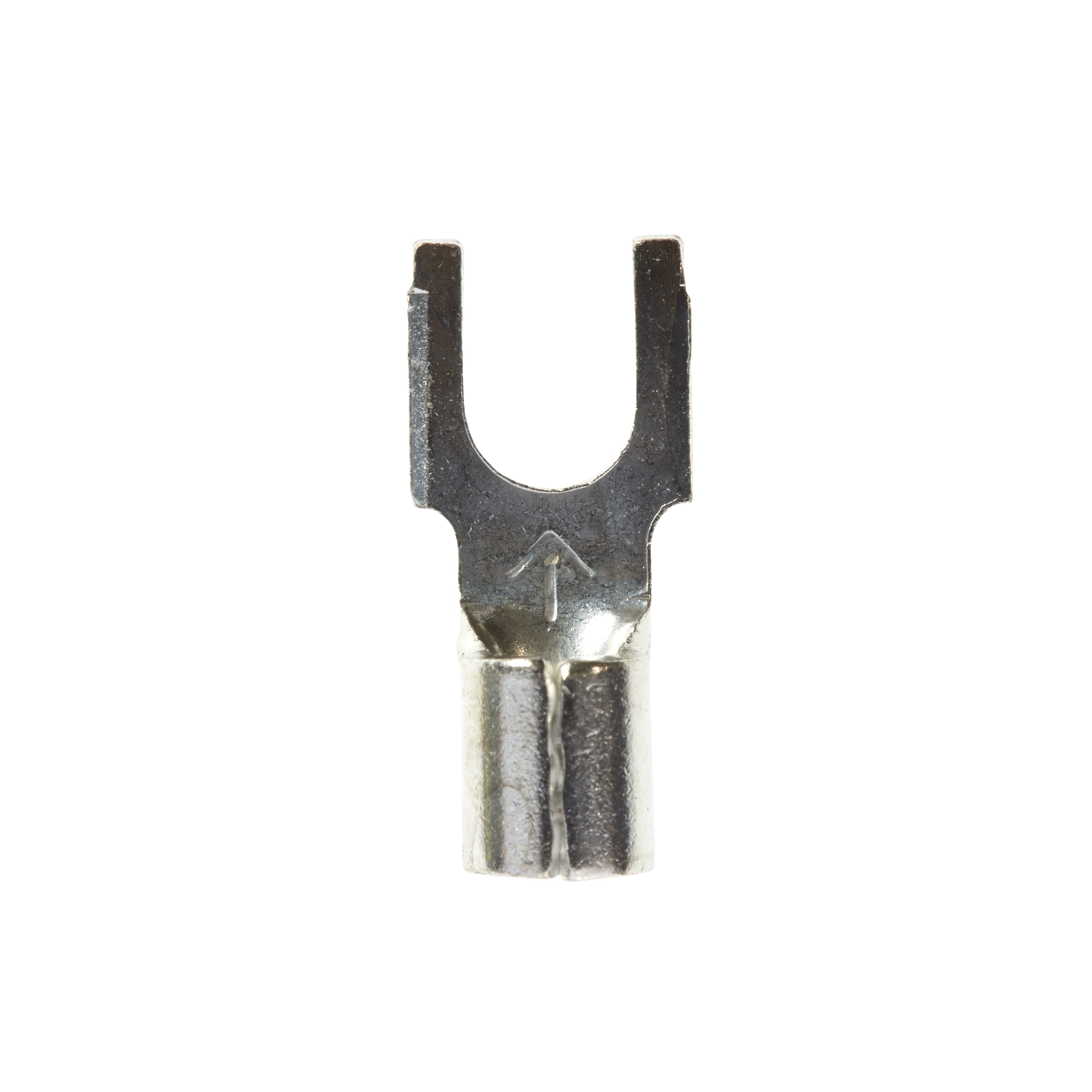

3M Electronic Specialty MU10-10FBK	0.25 in	6.35 mm	7.37 mm	0.29 in	Crimp	Tin	18.54 mm	0.73 in	10 Stud	Copper	Butted Seam	Non-Insulated	Standard	10 AWG	12 AWG	Free Hanging (In-Line)	0.32 in	8.13 mm

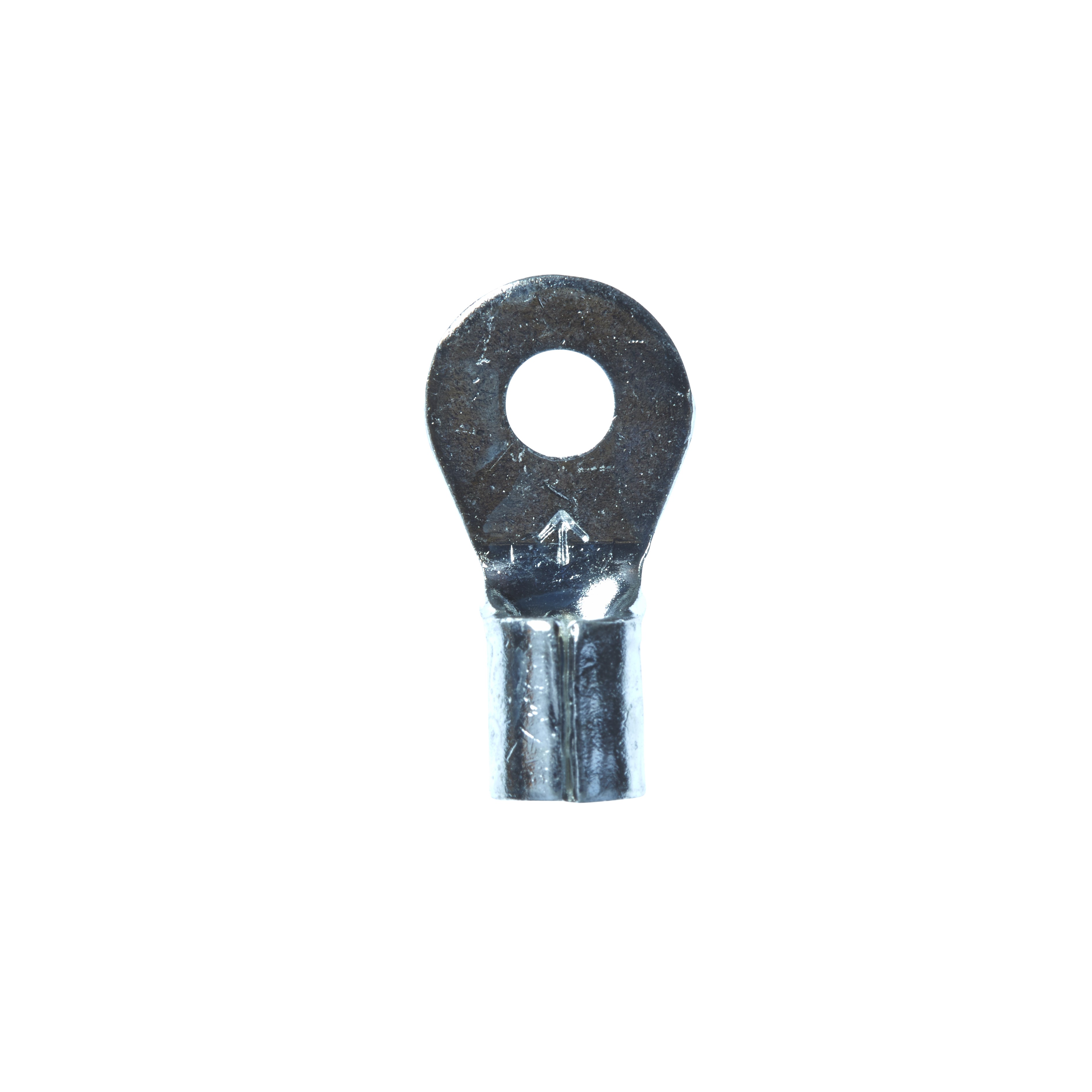

3M Electronic Specialty MU10-6RX-BOTTLE					Crimp	Tin	18.54 mm	0.73 in	6 Stud	Copper ETP		Non-Insulated	Circular	10 AWG	12 AWG	Free Hanging (In-Line)	0.38 in	9.65 mm				0.04 in	1.02 mm

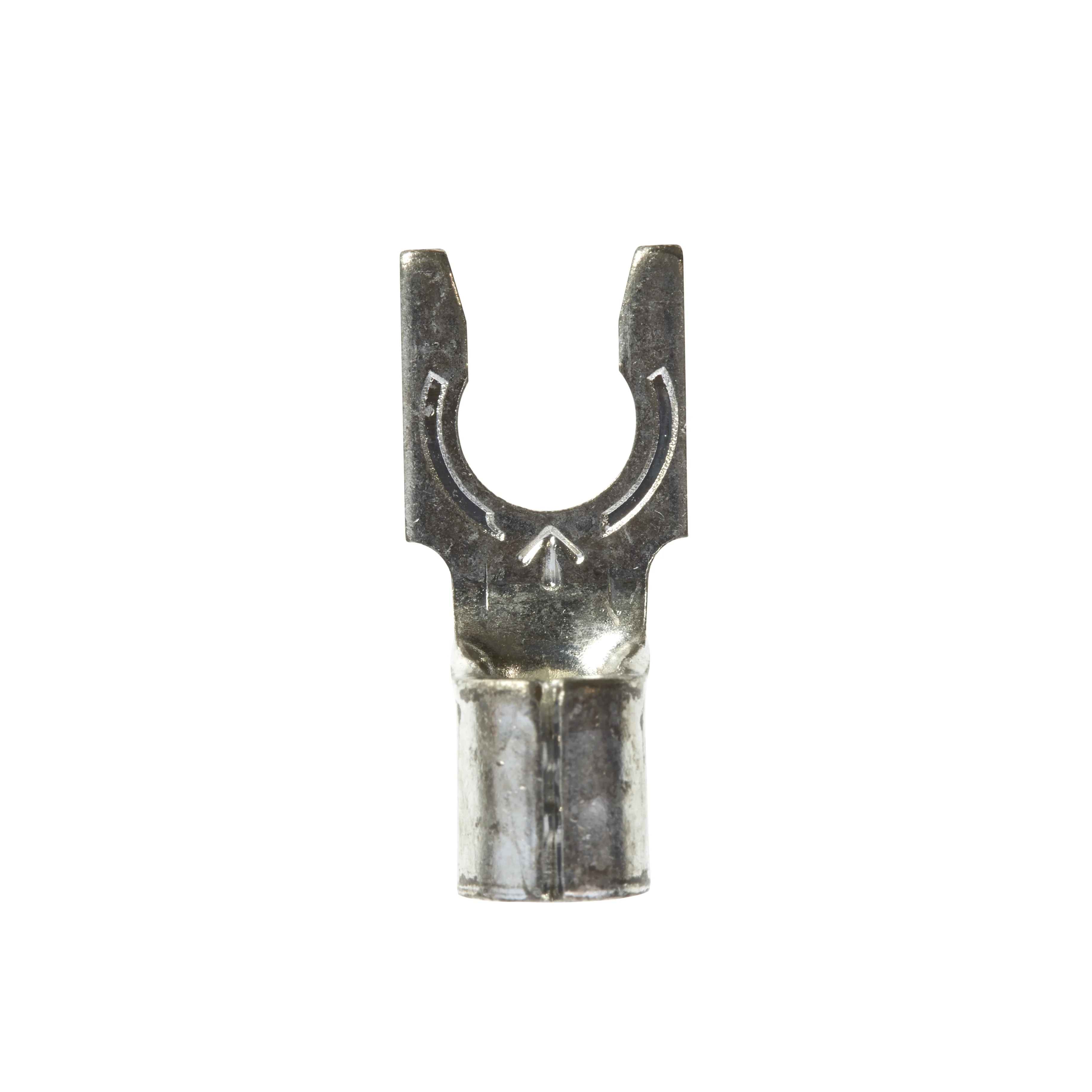

3M Electronic Specialty MU10-10FLX-BOTTLE	0.25 in	6.35 mm	7.11 mm	0.28 in	Crimp	Tin	18.54 mm	0.73 in	10 Stud	Copper ETP		Non-Insulated	Snap Spring	10 AWG	12 AWG	Free Hanging (In-Line)	0.36 in	9.14 mm
