40.51.9 Series

Catalog

RELAY GEN PURPOSE SPDT 10A 6V

Part	Coil Resistance	Switching Voltage [Max]	Relay Type	Mounting Type	Termination Style	Coil Current	Coil Type	Must Release Voltage	Must Operate Voltage	Contact Form	Contact Rating (Current)	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Seal Rating	Operate Time	Contact Material	Load - Max Switching [Max]	Coil Voltage
Finder Relays, Inc. 40.51.9.006.0000	55 Ohms	400 VAC	General Purpose	Socketable	Plug In	109 mA	Non Latching	1.2 VDC	4.4 VDC	SPDT (1 Form C)	10 A	3 ms	85 °C	-40 C	CCC CSA cURus EAC ENEC RINA VDE	Sealed - Flux Protection	7 ms	Silver Nickel (AgNi)	4000 VA
Finder Relays, Inc. 40.51.9.012.2300	220 Ohms	400 VAC	General Purpose	Socketable	Plug In	55 mA	Non Latching	2.4 VDC	8.8 VDC	SPST-NO (1 Form A)	10 A	3 ms	85 °C	-40 C	CCC CSA cURus EAC ENEC RINA VDE	Sealed - Flux Protection	7 ms	Silver Nickel (AgNi)	4000 VA	12 VDC
Finder Relays, Inc. 40.51.9.012.0001	220 Ohms	400 VAC	General Purpose	Socketable	Plug In	55 mA	Non Latching	2.4 VDC	8.8 VDC	SPDT (1 Form C)	10 A	3 ms	85 °C	-40 C	CCC CSA cURus EAC ENEC RINA VDE		7 ms	Silver Nickel (AgNi)	4000 VA	12 VDC
Finder Relays, Inc. 40.51.9.012.0000	220 Ohms	400 VAC	General Purpose	Socketable	Plug In	55 mA	Non Latching	2.4 VDC	8.8 VDC	SPDT (1 Form C)	10 A	3 ms	85 °C	-40 C	CCC CSA cURus EAC ENEC RINA VDE	Sealed - Flux Protection	7 ms	Silver Nickel (AgNi)	4000 VA	12 VDC

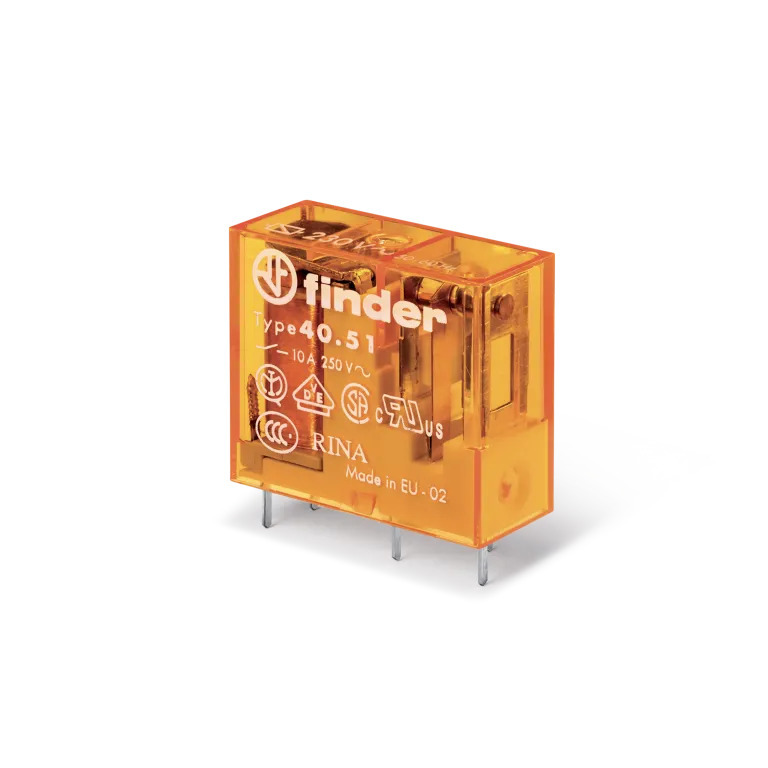

Finder Relays, Inc. 40.51.9.060.0000	5.5 kOhms	400 VAC	General Purpose	Socketable	Plug In	11 mA	Non Latching	12 VDC	43.8 VDC	SPDT (1 Form C)	10 A	3 ms	85 °C	-40 C	CCC CSA cURus EAC ENEC RINA VDE	Sealed - Flux Protection	7 ms	Silver Nickel (AgNi)	4000 VA	60 VDC
Finder Relays, Inc. 40.51.9.024.5000	900 Ohms	400 VAC	General Purpose	Socketable	Plug In	27 mA	Non Latching	4.8 VDC	17.5 VDC	SPDT (1 Form C)	10 A	3 ms	85 °C	-40 C	CCC CSA cURus EAC ENEC RINA VDE	Sealed - Flux Protection	7 ms	Silver Nickel (AgNi)	4000 VA	24 VDC
Finder Relays, Inc. 40.51.9.028.0300	1.2 kOhms	400 VAC	General Purpose	Socketable	Plug In	23 mA	Non Latching	5.6 VDC	20.5 VDC	SPST-NO (1 Form A)	10 A	3 ms	85 °C	-40 C	CCC CSA cURus EAC ENEC RINA VDE	Sealed - Flux Protection	7 ms	Silver Nickel (AgNi)	4000 VA	28 VDC
