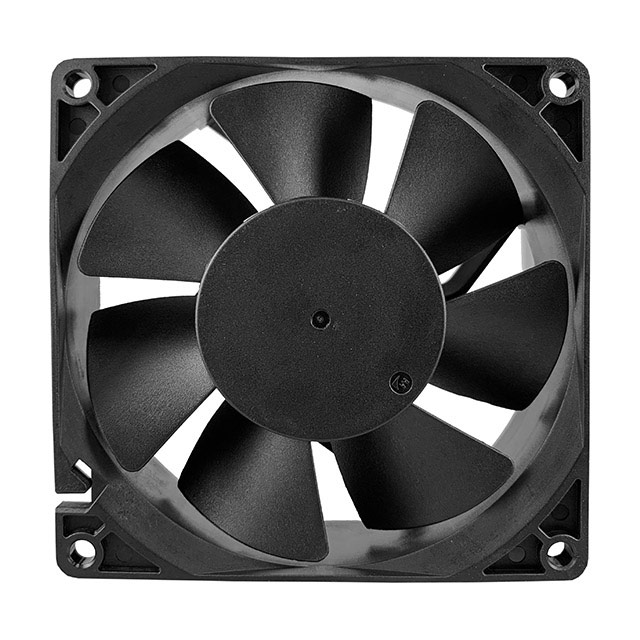

FMA1-09225 Series
Manufacturer: Qualtek
Beta
⌘K
EC FAN, 92X92X25MM, 2-BALL BEARI
| Part | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Material - Blade | Material - Frame | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Power (Watts) | Width [y] | Static Pressure | Static Pressure | Fan Type | Features | Termination | Ingress Protection | Size / Dimension [y] | Size / Dimension [x] | Voltage - Rated [Max] | Voltage - Rated [Min] | Noise | RPM | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 60 mA | 70000 Hrs | 1.56 mł/min | 55.6 CFM | Plastic | Plastic | -20 ░C | 70 °C | CE cURus | 6 W | 25 mm | 0.265 in H2O | 66 Pa | Tubeaxial | Electronic Commutation (EC) | 2 | IP54 - Dust Protected Water Resistant | 92 mm | 92 mm | 240 VAC | 100 VAC | 44 dB(A) | 3500 RPM | Ball |
