1215C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

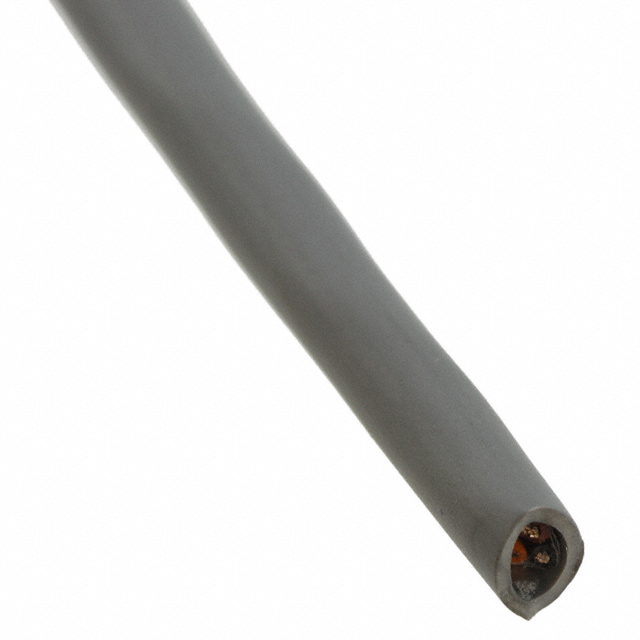

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 5 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Features | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Wire Gauge | Conductor Insulation | Conductor Material | Number of Conductors | Cable Type | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 7 | 32 AWG | Foil | Drain Wire | 300 VDC | 80 °C | -20 ░C | Slate | 24 AWG | Poly-Vinyl Chloride (PVC) | Copper Tinned | 5 | Multi-Conductor | Communication Control | 0.813 mm | 0.032 in | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | 0.187 in | 4.75 mm |
