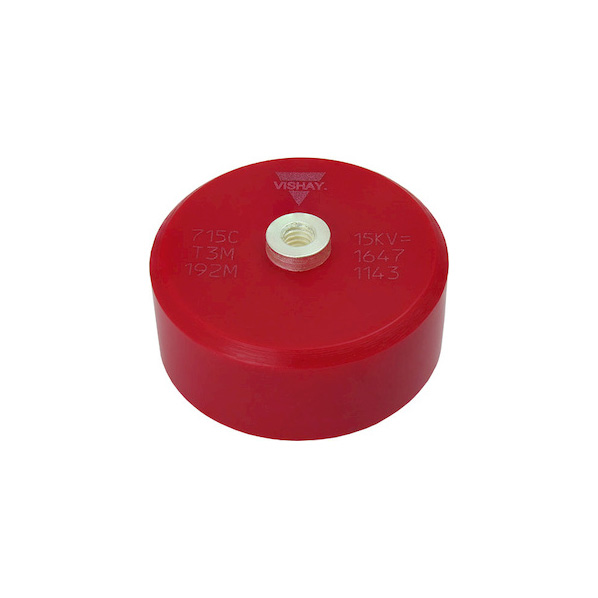

715C-DK Series

Catalog

CERAMIC DISC CAPACITORS 20KVDC 4700PF Y5U -20+80%

Part	Operating Temperature (Max)	Operating Temperature (Min)	Features	Applications	Capacitance	Package / Case	Tolerance (Negative)	Tolerance (Positive)	Voltage - Rated	Temperature Coefficient	Size / Dimension Length	Size / Dimension Diameter	Mounting Type
Vishay Dale 715C20DKD47	85 °C	-30 °C	High Voltage Low Dissipation Factor	General Purpose	4700 pF	Disk Metal Fitting - Threaded	20 %	80 %	20 kV	Y5U (E)	1 in	2.13 in	Requires Holder
Vishay Dale 715C40DKT78	85 °C	-30 °C	High Voltage Low Dissipation Factor	General Purpose	780 pF	Disk Metal Fitting - Threaded	20 %	80 %	40000 V	N4700	1.358 in	1.299 in	Requires Holder

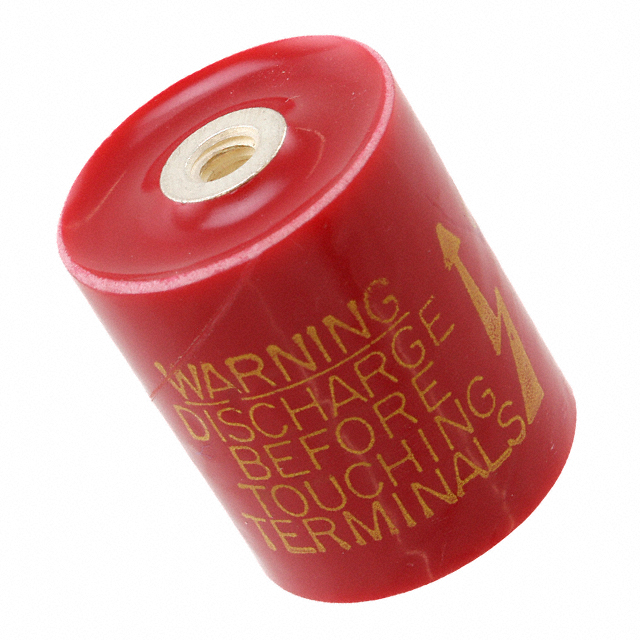

Vishay Dale 715C20DKT50	85 °C	-30 °C	High Voltage Low Dissipation Factor	General Purpose	500 pF	Disk Metal Fitting - Threaded	20 %	80 %	20 kV	N4700	1 in	0.882 in	Requires Holder
Vishay Dale 715C40DKT50	85 °C	-30 °C	High Voltage Low Dissipation Factor	General Purpose	500 pF	Disk Metal Fitting - Threaded	20 %	80 %	40000 V	N4700	1.358 in	1.051 in	Requires Holder
Vishay Dale 715C40DKT47	85 °C	-30 °C	High Voltage Low Dissipation Factor	General Purpose	470 pF	Disk Metal Fitting - Threaded	20 %	80 %	40000 V	N4700			Requires Holder
Vishay Dale 715C30DKD25	85 °C	-30 °C	High Voltage Low Dissipation Factor	General Purpose	2500 pF	Disk Metal Fitting - Threaded	20 %	80 %	30 kV	Y5U (E)	1.181 in	1.799 in	Requires Holder
