6380-4PG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

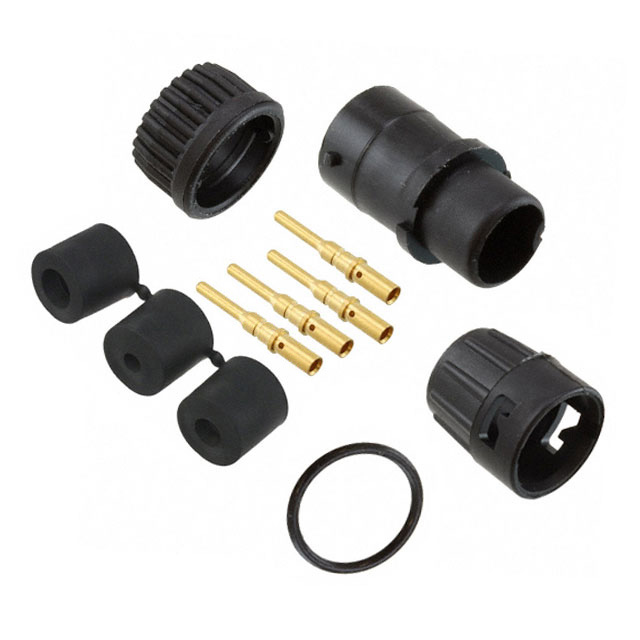

MINI-CON-X CABLE END, 4-PIN #16, MALE, CRIMP, BULK
| Part | Primary Material | Ingress Protection | Features | Fastening Type | Connector Type | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Contact Finish - Mating | Termination | Orientation | Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Material | Backshell Material, Plating | Current Rating (Amps) | Shielding | Applications | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Plastic | Weathertight | Backshell | Bayonet Lock | Plug Male Pins | 0.15 in | 3.81 mm | 0.13 " | 3.3 mm | Gold | Crimp | Keyed | Black | 115 °C | -40 C | Free Hanging (In-Line) | Brass | Nylon Polyamide (PA) | Varies by Wire Gauge | Unshielded | Automotive Communication Systems Instrumentation | 600 V | 4 |
SWITCHCRAFT/CONXALL | Plastic | Weathertight | Backshell | Bayonet Lock | Plug Male Pins | 0.17 in | 4.32 mm | 0.15 " | 3.81 mm | Gold | Crimp | Keyed | Black | 115 °C | -40 C | Free Hanging (In-Line) | Brass | Nylon Polyamide (PA) | Varies by Wire Gauge | Unshielded | Automotive Communication Systems Instrumentation | 600 V | 4 |
 SWITCHCRAFT/CONXALL | Plastic | Weathertight | Backshell | Bayonet Lock | Plug Male Pins | 0.21 in | 5.33 mm | 0.19 in | 4.83 mm | Gold | Crimp | Keyed | Black | 115 °C | -40 C | Free Hanging (In-Line) | Brass | Nylon Polyamide (PA) | Varies by Wire Gauge | Unshielded | Automotive Communication Systems Instrumentation | 600 V | 4 |
 SWITCHCRAFT/CONXALL | Plastic | Weathertight | Backshell | Bayonet Lock | Plug Male Pins | 0.2 " | 5.08 mm | 0.18 " | 4.57 mm | Gold | Crimp | Keyed | Black | 115 °C | -40 C | Free Hanging (In-Line) | Brass | Nylon Polyamide (PA) | Varies by Wire Gauge | Unshielded | Automotive Communication Systems Instrumentation | 600 V | 4 |
 SWITCHCRAFT/CONXALL | Plastic | Weathertight | Backshell | Bayonet Lock | Plug Male Pins | Gold | Crimp | Keyed | Black | 115 °C | -40 C | Free Hanging (In-Line) | Brass | Nylon Polyamide (PA) | Varies by Wire Gauge | Unshielded | Automotive Communication Systems Instrumentation | 600 V | 4 | ||||
SWITCHCRAFT/CONXALL | Plastic | Weathertight | Backshell | Bayonet Lock | Plug Male Pins | 0.25 in | 6.35 mm | 0.22 in | 5.59 mm | Gold | Crimp | Keyed | Black | 115 °C | -40 C | Free Hanging (In-Line) | Brass | Nylon Polyamide (PA) | Varies by Wire Gauge | Unshielded | Automotive Communication Systems Instrumentation | 600 V | 4 |
