140-511 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN RCPT HSG 11POS 2.00MM
| Part | Note | Fastening Type | Number of Positions | Features | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Pitch [x] | Pitch [x] | Insulation Material | Contact Type | Contact Termination | Number of Rows | Mounting Type | Color | Current Rating (Amps) | Material Flammability Rating | Contact Finish - Post | Insulation Color | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Shape | Number of Positions Loaded | Termination | Insulation Height [z] | Insulation Height [z] | Shrouding | Style | Contact Material | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

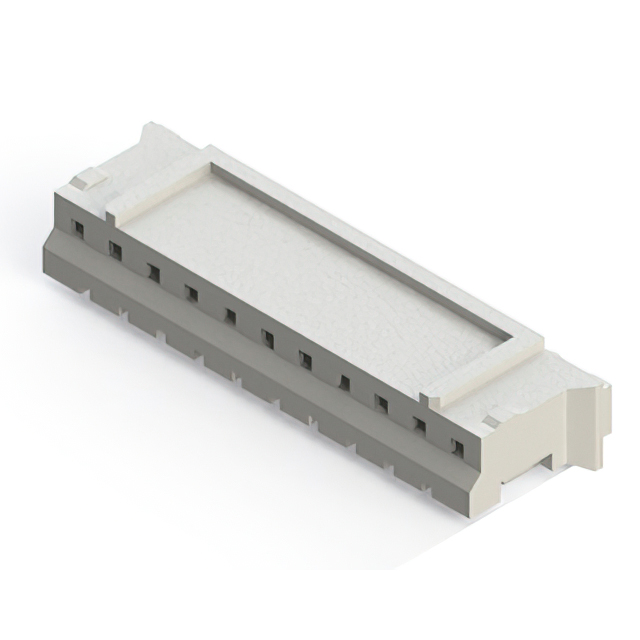

 EDAC Inc. | Contacts Not Included | Detent Lock | 11 | Polarizing Key | 85 °C | -25 °C | Receptacle | 0.079 in | 2 mm | Nylon 6/6 Polyamide (PA66) | Female Socket | Crimp | 1 | Free Hanging (In-Line) | Natural | |||||||||||||||||||

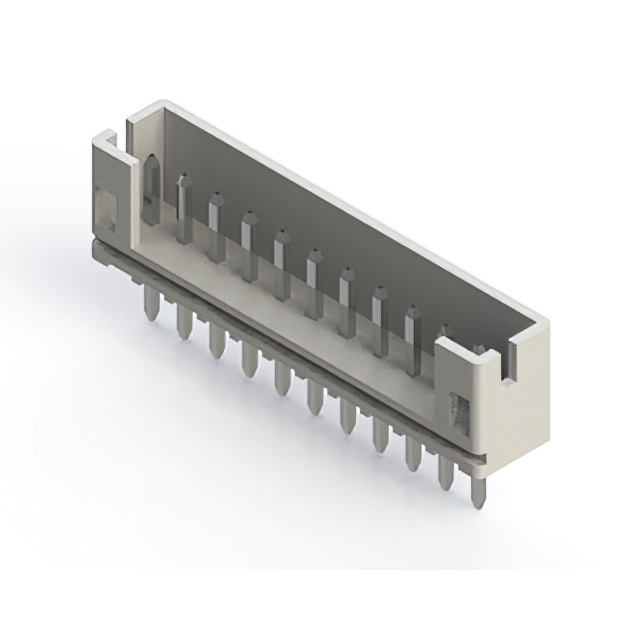

 EDAC Inc. | Detent Lock | 11 | 105 ░C | -40 C | Header | Nylon 6/6 Polyamide (PA66) | Male Pin | 1 | Through Hole | 2 A | UL94 V-0 | Tin | Natural | 100 VAC | 0.079 " | 2 mm | Square | All | Solder | 6.1 mm | 0.24 in | Shrouded - 4 Wall | Board to Cable/Wire | Brass | ||||||||||
 EDAC Inc. | Detent Lock | 11 | 105 ░C | -40 C | Header | Nylon 6/6 Polyamide (PA66) | Male Pin | 1 | Through Hole | 2 A | UL94 V-0 | Tin | Natural | 100 VAC | 0.079 " | 2 mm | Square | All | Kinked Pin Solder | 6.1 mm | 0.24 in | Shrouded - 4 Wall | Board to Cable/Wire | Brass | ||||||||||

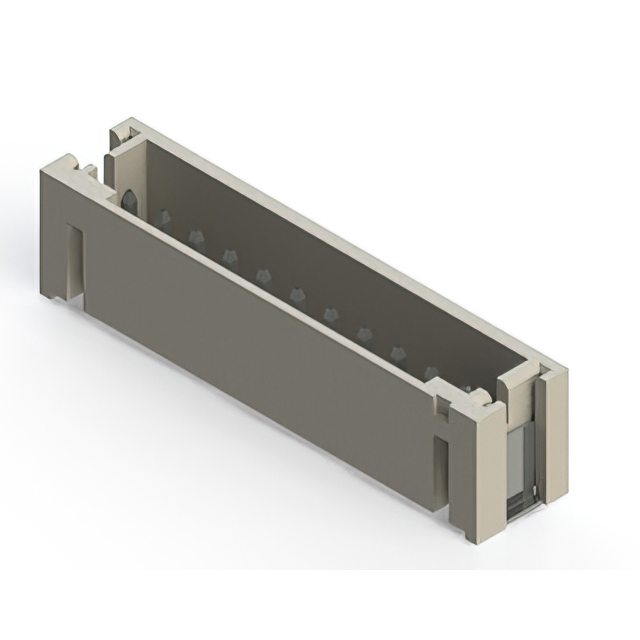

 EDAC Inc. | Detent Lock | 11 | Solder Retention | 105 ░C | -40 C | Header | Liquid Crystal Polymer (LCP) | Male Pin | 1 | Surface Mount | 2 A | UL94 V-0 | Tin | Natural | 100 VAC | 0.079 " | 2 mm | Square | All | Solder | Shrouded - 4 Wall | Board to Cable/Wire | Brass | 0.217 in | 5.51 mm | |||||||||

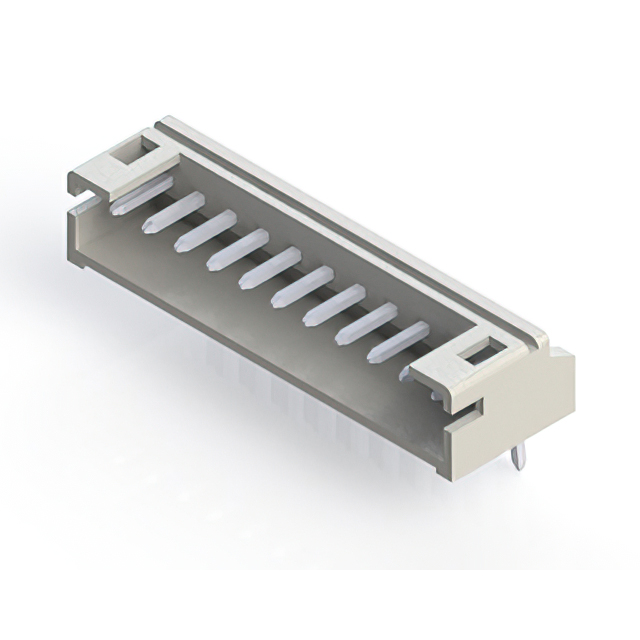

 EDAC Inc. | Detent Lock | 11 | 105 ░C | -40 C | Header | Nylon 6/6 Polyamide (PA66) | Male Pin | 1 | Right Angle Through Hole | 2 A | UL94 V-0 | Tin | Natural | 100 VAC | 0.079 " | 2 mm | Square | All | Solder | 4.7 mm | 0.185 in | Shrouded - 4 Wall | Board to Cable/Wire | Brass | 0.134 " | 3.4 mm | ||||||||
 EDAC Inc. | Detent Lock | 11 | 105 ░C | -40 C | Header | Nylon 6/6 Polyamide (PA66) | Male Pin | 1 | Right Angle Through Hole | 2 A | UL94 V-0 | Tin | Natural | 100 VAC | 0.079 " | 2 mm | Square | All | Kinked Pin Solder | Shrouded - 4 Wall | Board to Cable/Wire | Brass | 0.197 " | 5 mm |
