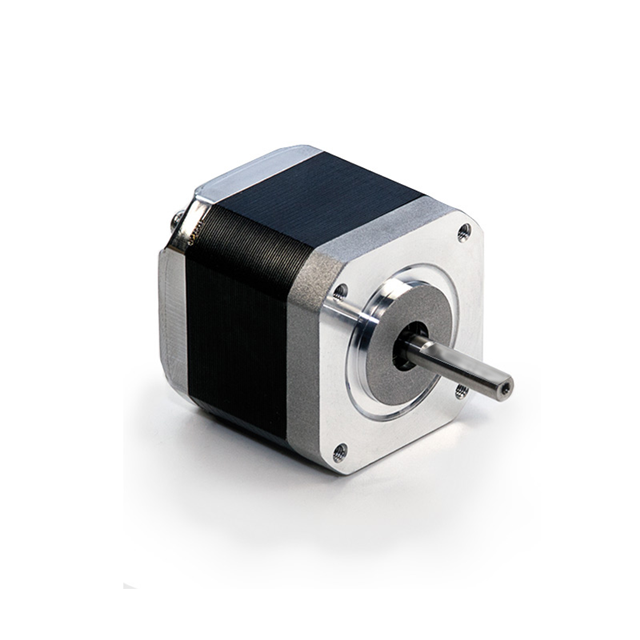

WO-4418F Series
Manufacturer: Lin Engineering
Beta
⌘K
STEPPER MOTOR
| Part | Rotor Inertia | NEMA Frame Size | Features | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Step Angle | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Steps per Revolution | Operating Temperature [Min] | Operating Temperature [Max] | Coil Resistance | Coil Type | Current Rating (Amps) | Voltage - Rated | Termination Style | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | 0.615 gcm² | 17 | Round Shaft | 0.197 in | 5 mm | 190.7 mNm | 27 oz-in | 1.8 ° | 31 mm | 1.22 in | 24 mm | 0.945 " | 200 | -20 ░C | 50 °C | 7.6 Ohms | Bipolar | 0.67 A | 24 VDC | Wire Leads | 42.4 mm | 1.669 in | 42.4 mm | 1.669 " |
