UTS7G Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSNG MALE 7POS PNL MT

Part	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Position Types	Note	Type	Contact Shape	Ingress Protection Description	Ingress Protection IP Rating	Housing Color	Orientation	Shell Size - Insert Width	Shell Size - Insert Length	Contact Type	Shell Material	Connector Type	Mounting Feature	Shielding	Contact Size	Material Flammability Rating	Features	Fastening Type

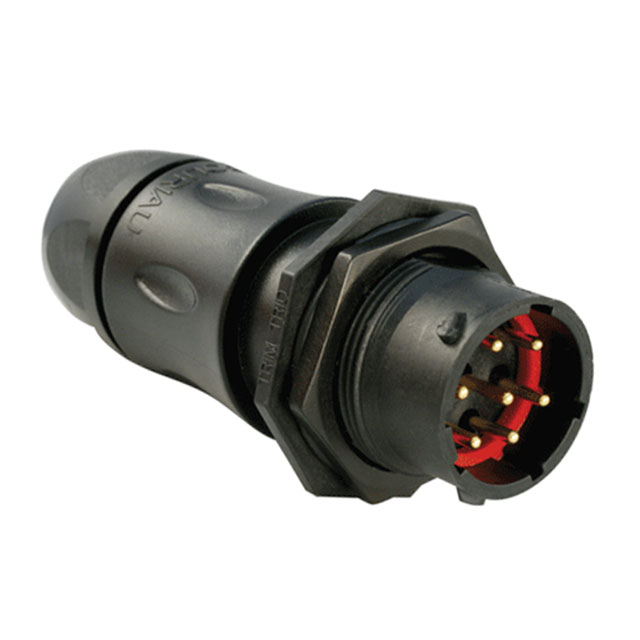

Amphenol Aerospace Operations UTS7GJC147P	Panel Mount	-40 °C	105 °C	7	PE	Contacts Not Included	For Male Pins	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	N (Normal)	7 mm	14 mm	Crimp	Thermoplastic	Receptacle Housing	Bulkhead Front Side Nut	Unshielded	16 S	UL94 V-0	Backshell	Bayonet Lock

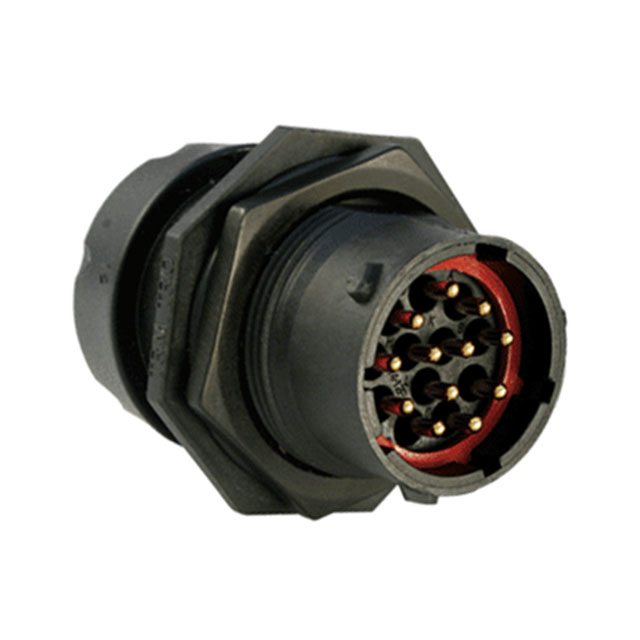

Amphenol Aerospace Operations UTS7GN1412P	Panel Mount	-40 °C	105 °C	12		Contacts Not Included	For Male Pins	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	N (Normal)	12 mm	14 mm	Crimp	Thermoplastic	Receptacle Housing	Bulkhead Front Side Nut	Unshielded	16 S	UL94 V-0		Bayonet Lock

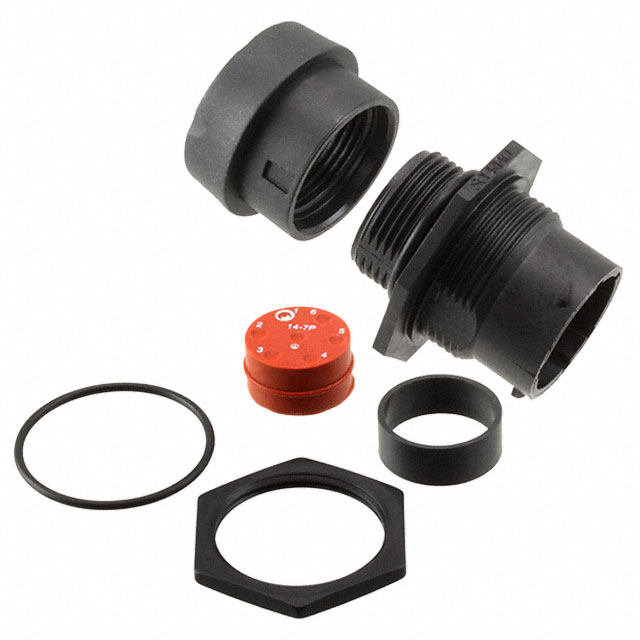

Amphenol Aerospace Operations UTS7GN147P	Panel Mount	-40 °C	105 °C	7	PE	Contacts Not Included	For Male Pins	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	N (Normal)	7 mm	14 mm	Crimp	Thermoplastic	Receptacle Housing	Bulkhead Front Side Nut	Unshielded	16 S	UL94 V-0		Bayonet Lock

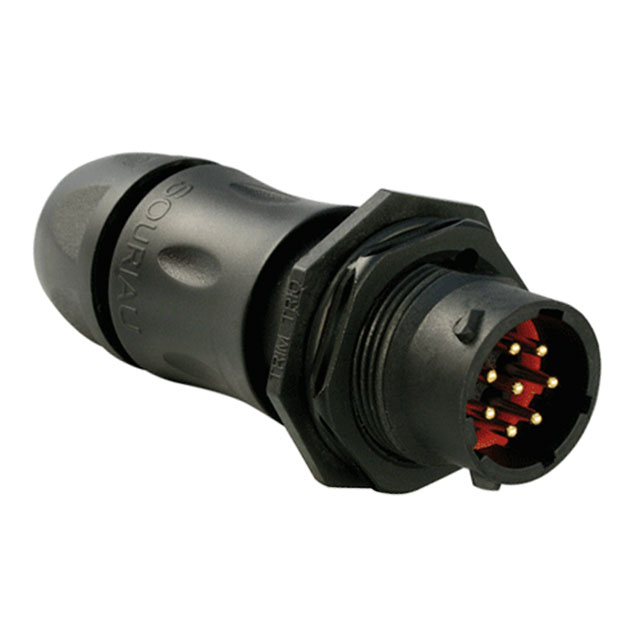

Amphenol Aerospace Operations UTS7GJC128P	Panel Mount	-40 °C	105 °C	8		Contacts Not Included	For Male Pins	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	N (Normal)	8 mm	12 mm	Crimp	Thermoplastic	Receptacle Housing	Bulkhead Front Side Nut	Unshielded	16 S	UL94 V-0	Backshell	Bayonet Lock

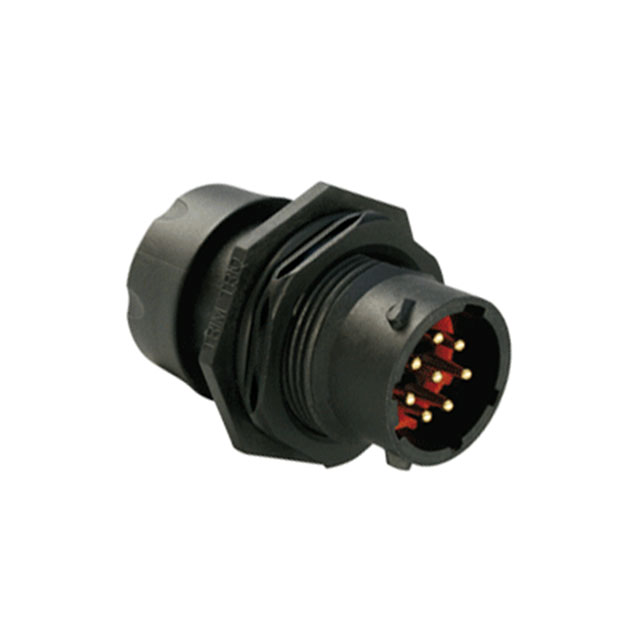

Amphenol Aerospace Operations UTS7GN128P	Panel Mount	-40 °C	105 °C	8		Contacts Not Included	For Male Pins	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	N (Normal)	8 mm	12 mm	Crimp	Thermoplastic	Receptacle Housing	Bulkhead Front Side Nut	Unshielded	16 S	UL94 V-0		Bayonet Lock

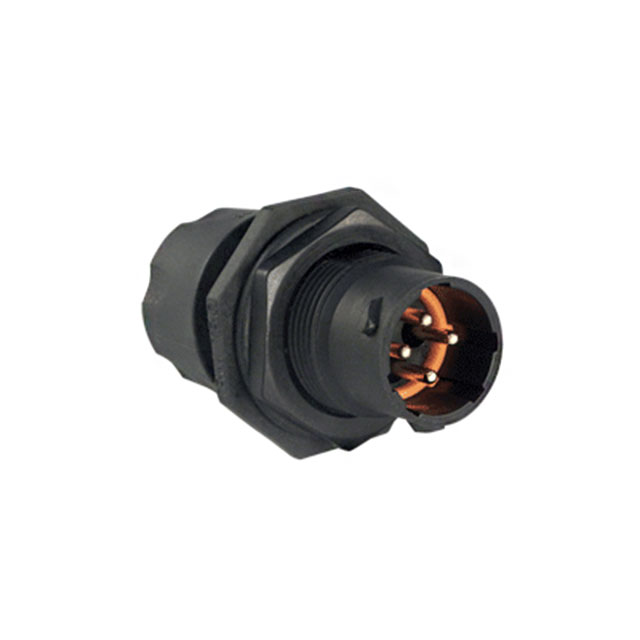

Amphenol Aerospace Operations UTS7GN104P	Panel Mount	-40 °C	105 °C	4		Contacts Not Included	For Male Pins	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	N (Normal)	4 mm	10 mm	Crimp	Thermoplastic	Receptacle Housing	Bulkhead Front Side Nut	Unshielded	16 S	UL94 V-0		Bayonet Lock

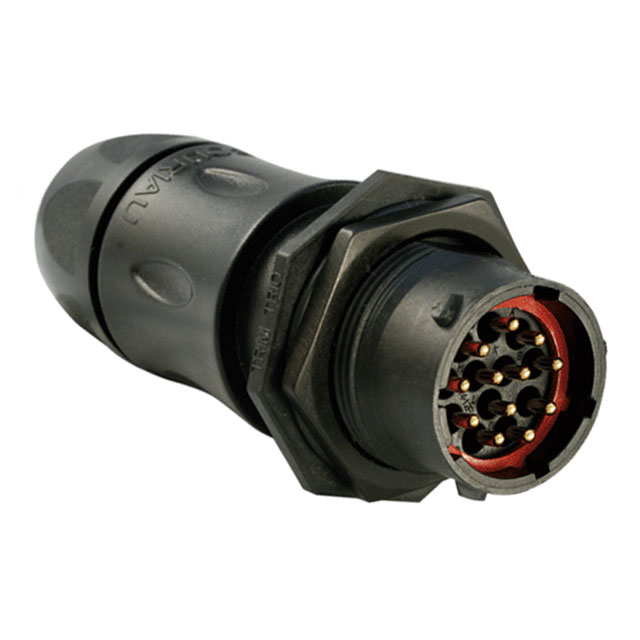

Amphenol Aerospace Operations UTS7GJC1412P	Panel Mount	-40 °C	105 °C	12		Contacts Not Included	For Male Pins	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	N (Normal)	12 mm	14 mm	Crimp	Thermoplastic	Receptacle Housing	Bulkhead Front Side Nut	Unshielded	16 S	UL94 V-0	Backshell	Bayonet Lock

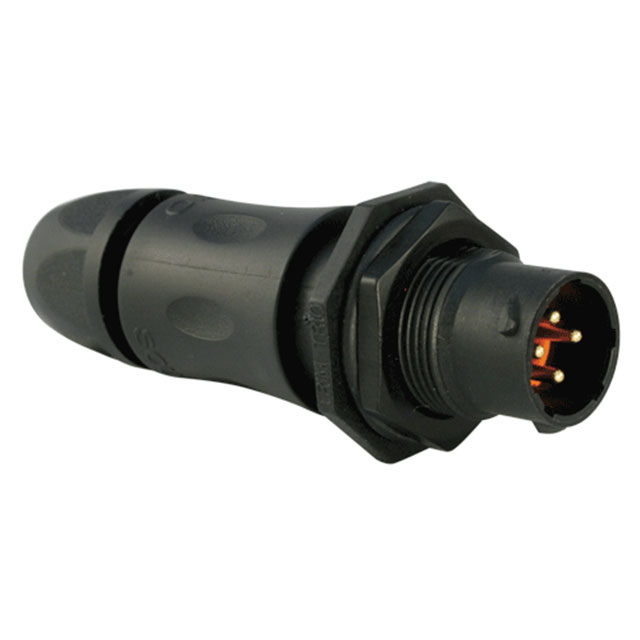

Amphenol Aerospace Operations UTS7GJC104P	Panel Mount	-40 °C	105 °C	4		Contacts Not Included	For Male Pins	Circular	Dust Tight Water Resistant Waterproof	IP68 IP69K	Black	N (Normal)	4 mm	10 mm	Crimp	Thermoplastic	Receptacle Housing	Bulkhead Front Side Nut	Unshielded	16 S	UL94 V-0	Backshell	Bayonet Lock
