159226 Series

Catalog

CONN HEADER VERT 26POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Features	Pitch - Mating	Pitch - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Insulation Color	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Shrouding	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Contact Type	Mounting Type	Fastening Type	Termination	Contact Finish - Post	Insulation Height	Insulation Height

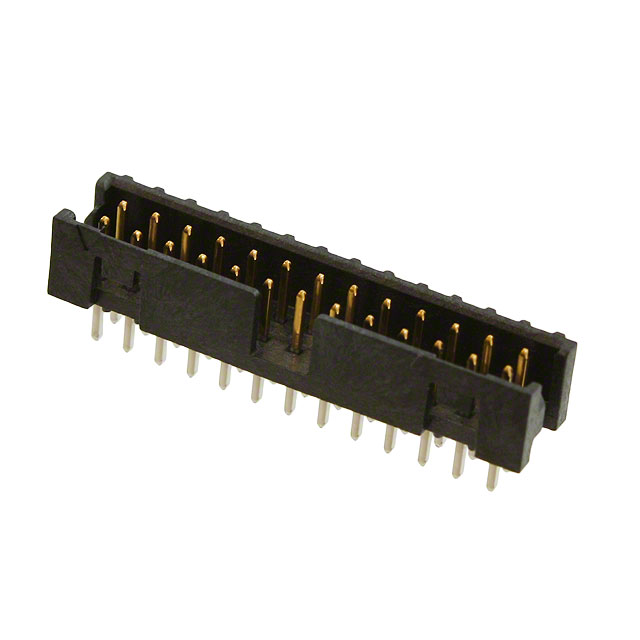

3M Electronic Specialty 159226-6002	200 µin	5.08 µm	All	Keying Slot	0.079 "	2 mm	Board to Cable/Wire	-55 C	105 ░C	2 mm	0.079 in	0.112 in	2.84 mm	26	Black	1.25 A	150 VDC	Copper Alloy	Gold	UL94 V-0	0.38 µm	15 µin	Square	Shrouded - 4 Wall	Header	0.142 in	3.61 mm	2	Male Pin	Through Hole	Detent Lock	Solder	Tin	0.21 in	5.33 mm
