ZWS10B Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 10 W, 5 V, 2 A

Part	Mounting Type	Number of Outputs	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Approval Agency	Standard Number	Current - Output 1	Features	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]
TDK Corporation ZWS10B-5/A	Chassis Mount	1	78 %	85 VAC 120 VDC	265 VAC 370 VDC	5 V	Enclosed	CE UKCA	60950-1 62368-1	2 A	Adjustable Output Universal Input	70 °C	-10 °C	ITE (Commercial)	10 W	3000 V

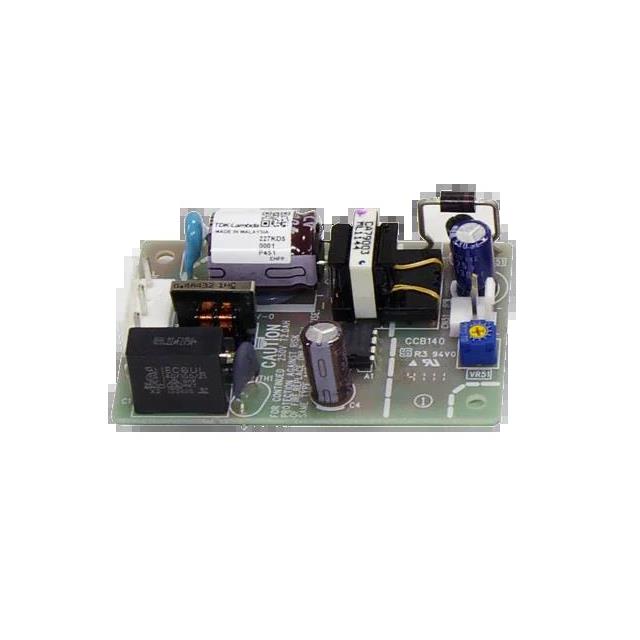

TDK Corporation ZWS10B-24/A	Chassis Mount	1	85 %	85 VAC 120 VDC	265 VAC 370 VDC	24 V	Enclosed	CE UKCA	60950-1 62368-1	500 mA	Adjustable Output Universal Input	70 °C	-10 °C	ITE (Commercial)	12 W	3000 V
TDK Corporation ZWS10B-12/A
TDK Corporation ZWS10B-3/A	Chassis Mount	1	70 %	85 VAC 120 VDC	265 VAC 370 VDC	3.3 V	Enclosed	CE		2 A	Adjustable Output Universal Input	70 °C	-10 °C	ITE (Commercial)	6.6 W	3000 V	1.97 in	50 mm	22 mm	73.5 mm	0.87 in	2.89 in
TDK Corporation ZWS10B-15/A
