CGS 3504 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

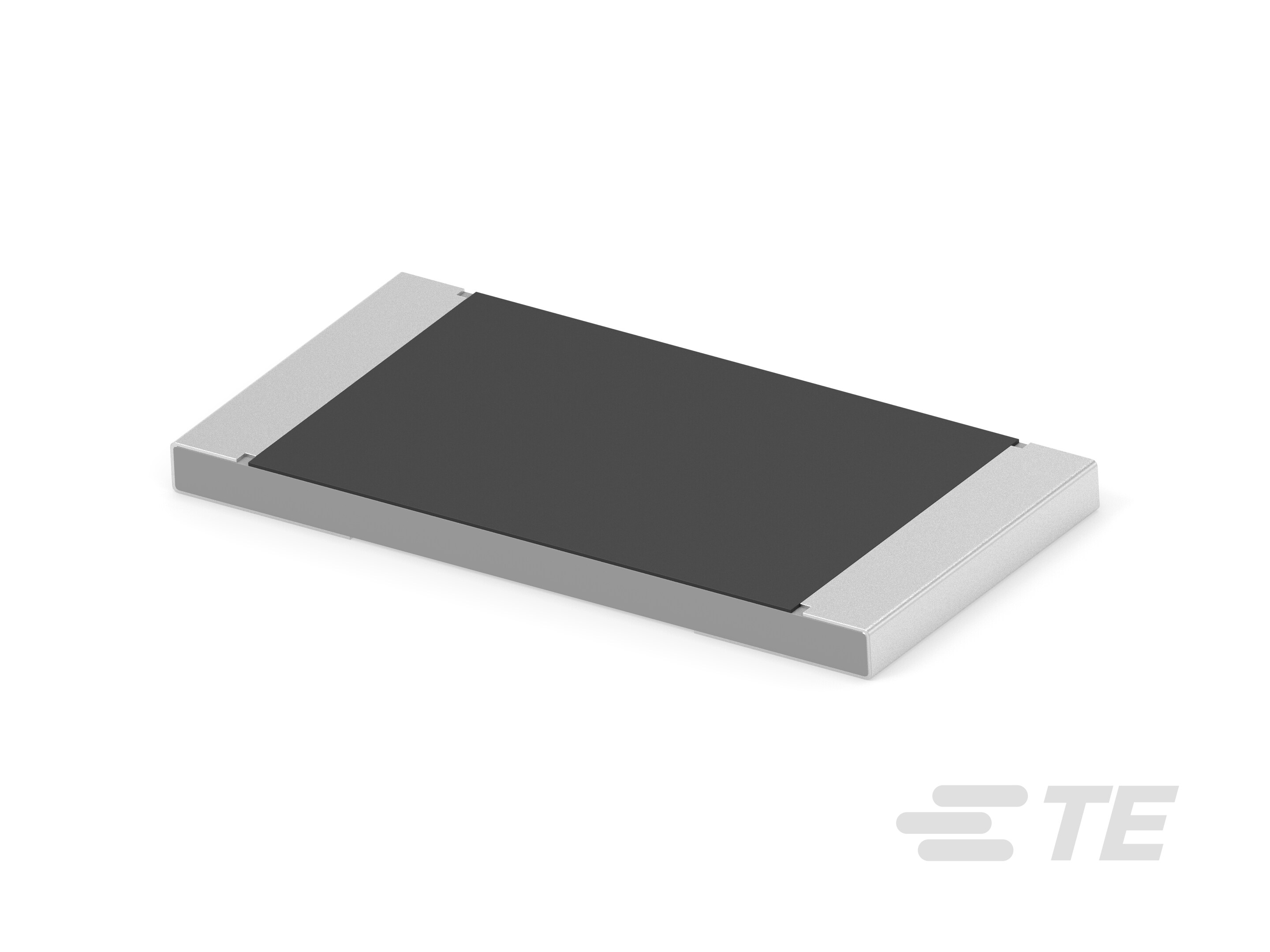

SMD CHIP RESISTOR, 3.24 KOHM, ± 1%, 6 W, 2512 [6432 METRIC], THIN FILM, HIGH POWER

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Supplier Device Package	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Composition	Package / Case	Number of Terminations [custom]	Package / Case
TE Connectivity AMP Connectors 3504G3A3K24FTE	155 C	-55 C	1 %	2512	3.24 kOhms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 (6432 Metric)	2
TE Connectivity AMP Connectors 3504G3A237RFTE	155 C	-55 C	1 %	2512		0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 (6432 Metric)	2
TE Connectivity AMP Connectors 3504G3A340RFTDF	155 C	-55 C	1 %	2512	340 Ohms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 2512 (6432 Metric)	2	6332 Metric
TE Connectivity AMP Connectors 3504G3A147RFTE	155 C	-55 C	1 %	2512	147 Ohms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 (6432 Metric)	2
TE Connectivity AMP Connectors 3504G3A301RFTDF	155 C	-55 C	1 %	2512	301 Ohms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 2512 (6432 Metric)	2	6332 Metric
TE Connectivity AMP Connectors 3504G3A22K1FTDF	155 C	-55 C	1 %	2512	22.1 kOhms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 2512 (6432 Metric)	2	6332 Metric
TE Connectivity AMP Connectors 3504G3A787RFTE	155 C	-55 C	1 %	2512	787 Ohms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 (6432 Metric)	2
TE Connectivity AMP Connectors 3504G3A97R6FTE	155 C	-55 C	1 %	2512	97.6 Ohms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 (6432 Metric)	2
TE Connectivity AMP Connectors 3504G3A28K7FTDF	155 C	-55 C	1 %	2512	28.7 kOhms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 2512 (6432 Metric)	2	6332 Metric
TE Connectivity AMP Connectors 3504G3A4K99FTE	155 C	-55 C	1 %	2512	4.99 kOhms	0.58 mm	0.023 in	50 ppm/░C	0.122 in	0.248 in	3.1 mm	6.3 mm	6 W	Thin Film	2512 (6432 Metric)	2
