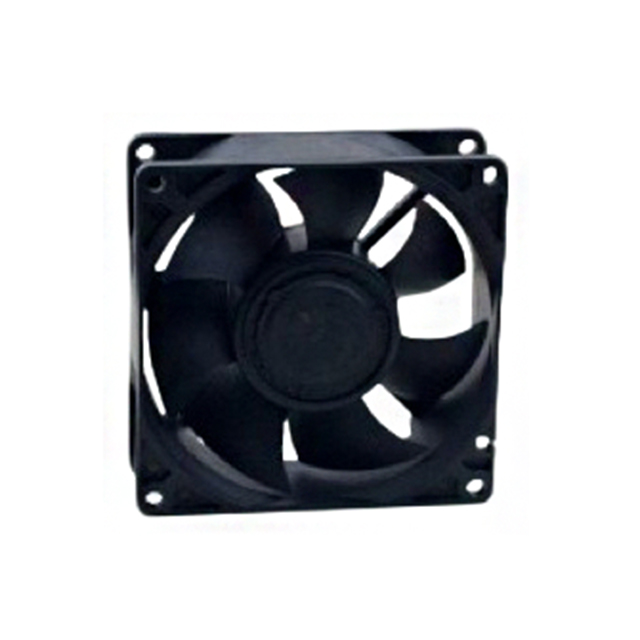

MR9232 Series

Catalog

FAN AXIAL 92X32MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Features	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Static Pressure	Static Pressure	Weight	Weight	Fan Type	Voltage - Rated	Width [y]	Termination	Noise	RPM	Air Flow	Air Flow
Mechatronics Fan Group MR9232E12B1-FSR	Plastic	0.98 A	Plastic	Auto Restart Speed Sensor (Tach)	Ball	92 mm	92 mm	CE cUL TUV UL	144.5 Pa	0.58 in H2O	150.14 g	0.331 lb	Tubeaxial	12 VDC	32 mm	3 Wire Leads	52.8 dB(A)	5000 RPM	2.69 mł/min	96 CFM
Mechatronics Fan Group MR9232L24B1-FSR	Plastic		Plastic	Auto Restart Speed Sensor (Tach)	Ball	92 mm	92 mm	CE cUL TUV UL	59.8 Pa	0.24 in H2O	150.14 g	0.331 lb	Tubeaxial	24 VDC	32 mm	3 Wire Leads	43 dB	3200 RPM	1.74 mł/min	62 CFM
Mechatronics Fan Group MR9232M12B-FSR	Plastic	460 mA	Plastic	Auto Restart	Ball	92 mm	92 mm	CE cUL TUV UL	84.7 Pa	0.34 in H2O	150.14 g	0.331 lb	Tubeaxial	12 VDC	32 mm	2 Wire Leads	48.8 dB(A)	3800 RPM	2.07 mł/min	74 CFM
Mechatronics Fan Group MR9232M24B2-FSR	Plastic	0.23 A	Plastic	Auto Restart Locked Rotor Sensor	Ball	92 mm	92 mm	CE cUL TUV UL	84.7 Pa	0.34 in H2O	150.14 g	0.331 lb	Tubeaxial	24 VDC	32 mm	3 Wire Leads	48.8 dB(A)	3800 RPM	2.07 mł/min	74 CFM
Mechatronics Fan Group MR9232M12B2-FSR	Plastic	460 mA	Plastic	Auto Restart Locked Rotor Sensor	Ball	92 mm	92 mm	CE cUL TUV UL	84.7 Pa	0.34 in H2O	150.14 g	0.331 lb	Tubeaxial	12 VDC	32 mm	3 Wire Leads	48.8 dB(A)	3800 RPM	2.07 mł/min	74 CFM
Mechatronics Fan Group MR9232E24B2-FSR	Plastic	490 mA	Plastic	Auto Restart Locked Rotor Sensor	Ball	92 mm	92 mm	CE cUL TUV UL	144.5 Pa	0.58 in H2O	150.14 g	0.331 lb	Tubeaxial	24 VDC	32 mm	3 Wire Leads	52.8 dB(A)	5000 RPM	2.69 mł/min	96 CFM
Mechatronics Fan Group MR9232H24B1+6-FSR	Plastic	0.3 A	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	Ball	92 mm	92 mm	CE cUL TUV UL	112.1 Pa	0.45 in H2O	150.14 g	0.331 lb	Tubeaxial	24 VDC	32 mm	4 Wire Leads	49.7 dB(A)	4400 RPM	2.38 m³/min	85 CFM
Mechatronics Fan Group MR9232L24B-FSR	Plastic		Plastic	Auto Restart	Ball	92 mm	92 mm	CE cUL TUV UL	59.8 Pa	0.24 in H2O	150.14 g	0.331 lb	Tubeaxial	24 VDC	32 mm	2 Wire Leads	43 dB	3200 RPM	1.74 mł/min	62 CFM
Mechatronics Fan Group MR9232H24B-FSR	Plastic	0.3 A	Plastic	Auto Restart	Ball	92 mm	92 mm	CE cUL TUV UL	112.1 Pa	0.45 in H2O	150.14 g	0.331 lb	Tubeaxial	24 VDC	32 mm	2 Wire Leads	49.7 dB(A)	4400 RPM	2.38 m³/min	85 CFM
Mechatronics Fan Group MR9232E12B2-FSR	Plastic	0.98 A	Plastic	Auto Restart Locked Rotor Sensor	Ball	92 mm	92 mm	CE cUL TUV UL	144.5 Pa	0.58 in H2O	150.14 g	0.331 lb	Tubeaxial	12 VDC	32 mm	3 Wire Leads	52.8 dB(A)	5000 RPM	2.69 mł/min	96 CFM
