C146 10G006 Series

Catalog

CONN HOOD TOP ENTRY SZE6 PG16

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Lock Location	Ingress Protection	Connector Type	Style	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]

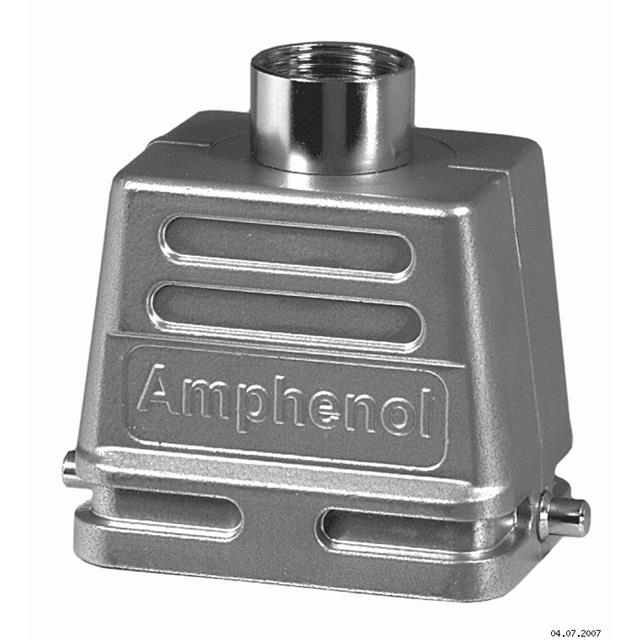

Amphenol Tuchel Industrial C146 10G006 601 1	1.693 " 43 mm	2.362 in	60 mm	PG16	-40 C	100 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Top Entry

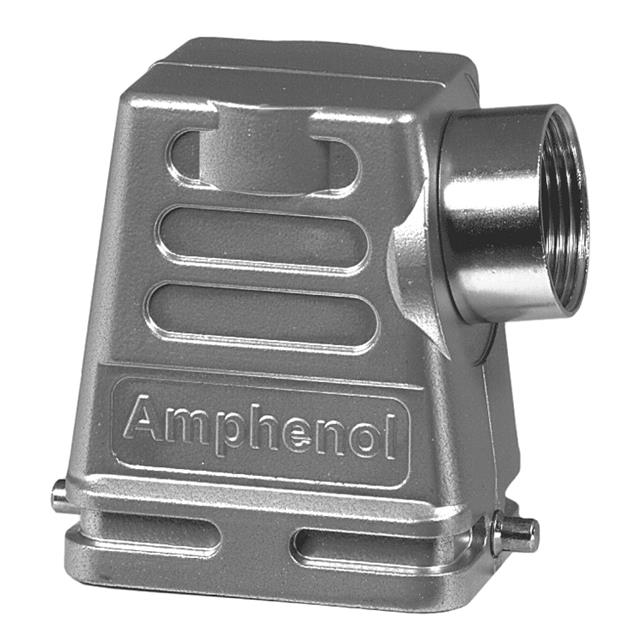

Amphenol Tuchel Industrial C146 10G006 506 8	1.693 "	2.362 in	60 mm	PG21	-40 C	100 °C	Aluminum Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Side Entry	70 mm	43 mm	2.756 "
Amphenol Tuchel Industrial C146 10G006 507 8	1.693 "	2.362 in	60 mm	PG29	-40 C	100 °C	Aluminum Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Side Entry	70 mm	43 mm	2.756 "

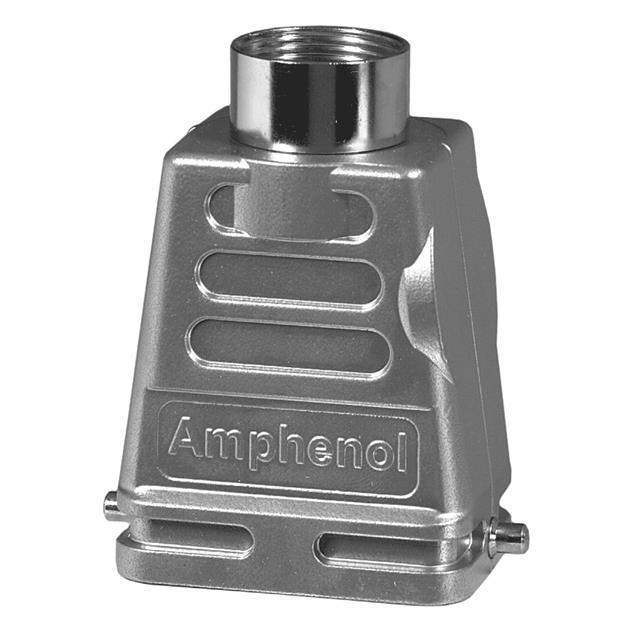

Amphenol Tuchel Industrial C146 10G006 606 8	1.693 "	2.362 in	60 mm	PG21	-40 C	100 °C	Aluminum Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Top Entry	70 mm	43 mm	2.756 "
