TA4MSH Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

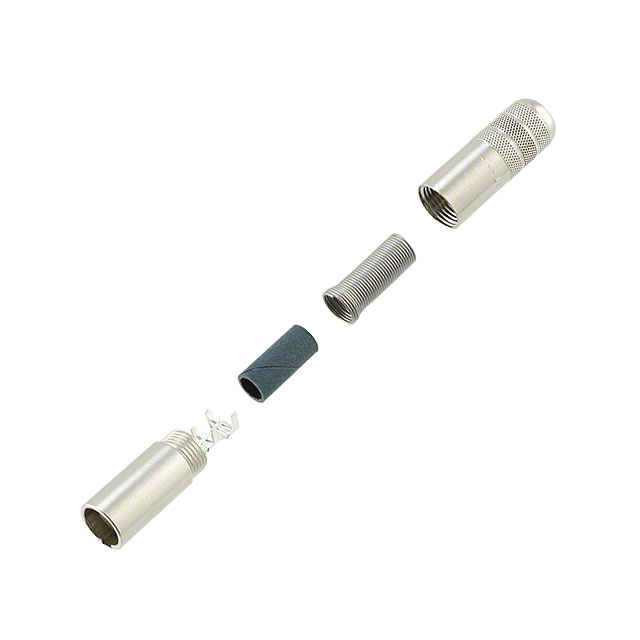

SHIELDED MINI XLR, 4 CONTACTS, MALE, SILVER PLATED CONTACTS, WITH FLEX RELIEF
| Part | Voltage Rating | Shielding | Shell Size - Insert | Material Flammability Rating | Number of Positions | Applications | Mounting Type | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Material | Current Rating (Amps) | Color | Primary Material | Shell Finish | Connector Type | Orientation | Features | Contact Finish - Mating | Backshell Material, Plating | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 125 VAC | Shielded | Mini XLR | UL94 V-0 | 4 | Audio Medical | Free Hanging (In-Line) | Copper Alloy | -55 C | 85 °C | Latch Lock | Copper Alloy | 5 A | Silver | Metal | Nickel | Receptacle Male Pins | Keyed | Backshell Cable Clamp Ground Strain Relief | Silver | Copper Alloy Nickel | Thermoplastic |
