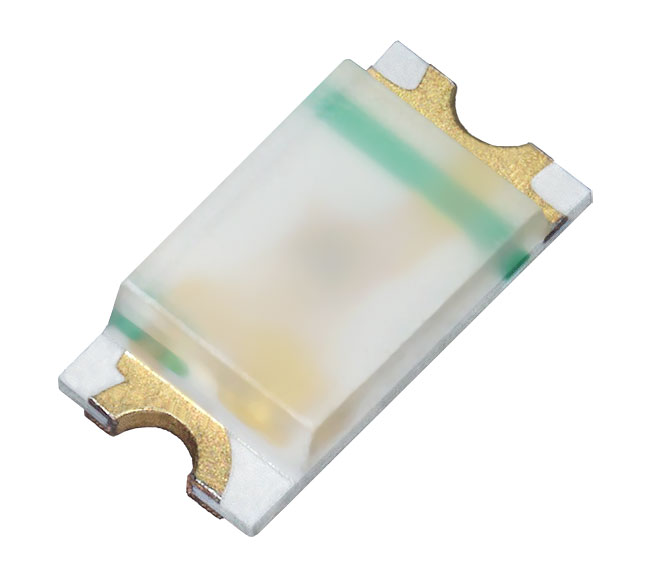

Industry standard 0603 Size, Thin type, Orange Chip LED
Industry standard 0603 Size, Thin type, Orange Chip LED
Industry standard 0603 Size, Thin type, Orange Chip LED
| Part | Lens Style | Wavelength - Dominant | Lens Color | Millicandela Rating | Configuration | Lens Transparency | Voltage - Forward (Vf) (Typ) | Mounting Type | Package / Case | Package / Case | Lens Size [y] | Lens Size [x] | Height (Max) [z] | Size / Dimension [x] | Size / Dimension [y] | Current - Test | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | Rectangle with Flat Top | 605 nm | White | 100 mcd | Standard | Diffused | 2.2 V | Surface Mount | 1608 Metric | 0603 | 0.8 mm | 1.2 mm | 0.46 mm | 1.6 mm | 0.8 mm | 20 mA | 1608 | 603 |
