LAB Series

Catalog

TERMINALS ALUMINUM COMPRESSION LUG, 2 HOLE, 3/0 AW

Part	Contact Finish	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Ring ID	Diameter - Ring ID	Contact Material	Insulation	Termination	Color	Mounting Type	Terminal Style	Tab Thickness	Tab Thickness	Terminal Type	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Length - Overall	Length - Overall	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge	Width - Outer Edges [y]	Width - Outer Edges [y]

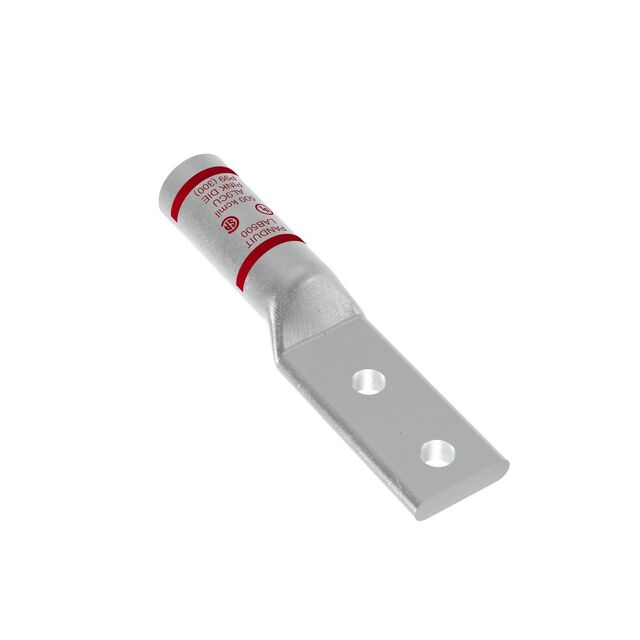

Panduit Corp LAB3/0-12-E	Tin	0.48 in	12.19 mm	19.3 mm	0.76 "	13.46 mm	0.53 in	Aluminum	Non-Insulated	Crimp	Ruby	Free Hanging (In-Line)	Two Stud Holes	6.86 mm	0.27 in	Standard	26.16 mm	1.03 "	0.5 Stud	141.22 mm	5.56 "
Panduit Corp LAB500-12-2R									Non-Insulated	Barrel Crimp	Black	Free Hanging (In-Line)	Two Stud Holes	11.43 mm	0.45 "	Lug Grounding			0.5 Stud			350 MCM (kcmil)	6.56 in	166.62 mm	38.61 mm	1.52 in
Panduit Corp LAB900-12-24	Tin	0.044 in	1.13 mm	42.16 mm	1.66 in	13.46 mm	0.53 in	Aluminum	Non-Insulated	Crimp	Gray	Free Hanging (In-Line)	Two Stud Holes	14.99 mm	0.59 in	Standard			0.5 Stud			900 MCM	8.31 "	211.07 mm			900 kcmil	1.74 in	44.2 mm
