FSM6 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Mechanical Life	Switch Travel	Mounting Type	Actuator Type	Illumination	Operating Force	Contact Rating @ Voltage	Outline [x]	Outline [y]	Termination Style	Switch Function	Circuit	Actuator Height off PCB, Vertical [z]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation

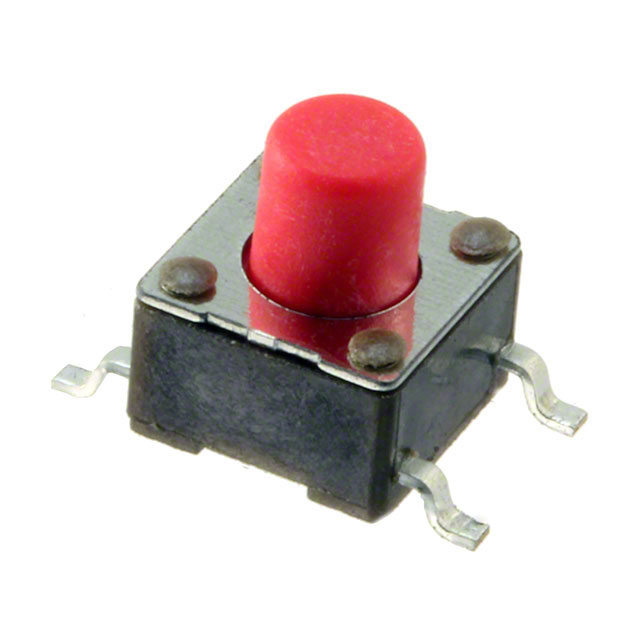

TE Connectivity AMP Connectors FSM6JSMAASTR	Polyamide (PA) Nylon	1000000 Cycles	0.25 mm	Surface Mount	Standard	Non-Illuminated	260 gf	0.05 A 24 VDC	6 mm	6 mm	Gull Wing	Off-Mom	SPST-NO	7 mm	-40 C	105 ░C	Top Actuated

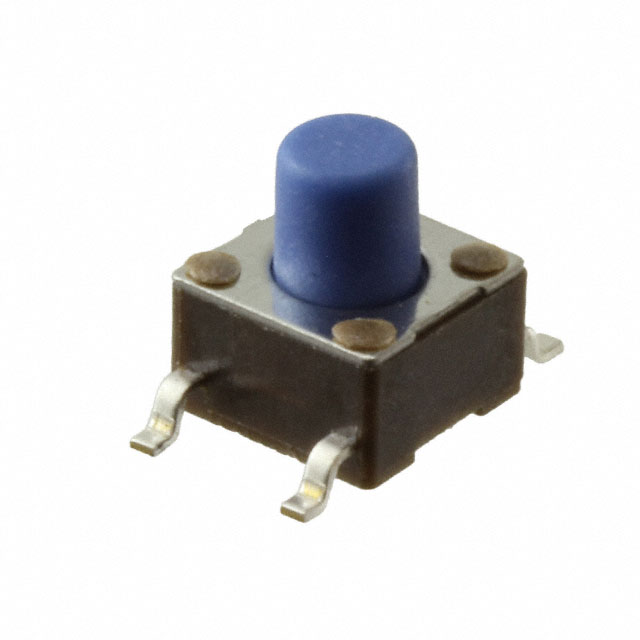

TE Connectivity AMP Connectors FSM6JSMLSTR	Polyphenylene Sulfide (PPS)	1000000 Cycles	0.25 mm	Surface Mount	Standard	Non-Illuminated	100 gf	0.05 A 24 VDC	6 mm	6 mm	Gull Wing	Off-Mom	SPST-NO	7 mm	-40 C	105 ░C	Top Actuated

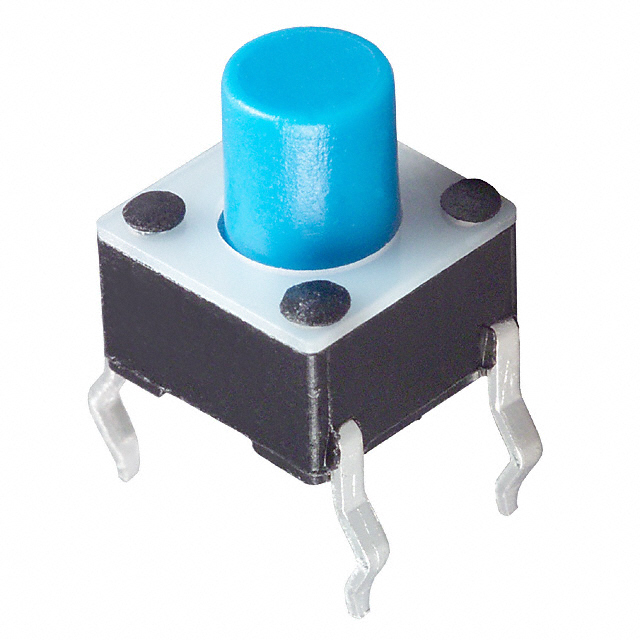

TE Connectivity AMP Connectors FSM6J	Acetal	100000 Cycles	0.25 mm	Through Hole	Standard	Non-Illuminated	160 gf	0.05 A 24 VDC	6 mm	6 mm	PC Pin	Off-Mom	SPST-NO	7 mm	-20 ░C	70 °C	Top Actuated
