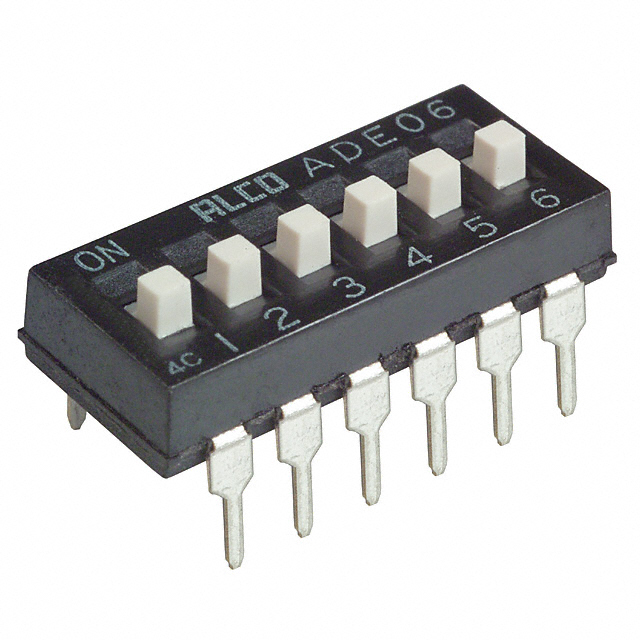

ADE06 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE DIP SPST 0.1A 24V
| Part | Electrical Life | Mechanical Life | Length | Length | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Finish | Current Rating (Amps) | Circuit | Washable | Actuator Level | Termination Style | Pitch | Pitch | Actuator Type | Contact Material | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1000 Cycles | 1000 Cycles | 17.22 mm | 0.678 in | Polyphenylene Sulfide (PPS) | 85 °C | -30 ░C | 6 | Gold | 100 mA | SPST | Raised | PC Pin | 2.54 mm | 0.1 " | Slide (Standard) | Copper Alloy | 24 VDC | 5.9 mm | 0.232 " | Through Hole |
