XCL232 Series

Catalog

NON-ISOLATED DC/DC CONVERTERS ULTRA-LLOW QUIESCENT CURRENT, INDUCTOR BUILT-IN BUCK DC/DC CONVERTERS

Part	Package / Case	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Mounting Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Efficiency	Features	Supplier Device Package	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Applications	Number of Outputs	Voltage - Input (Max) [Max]

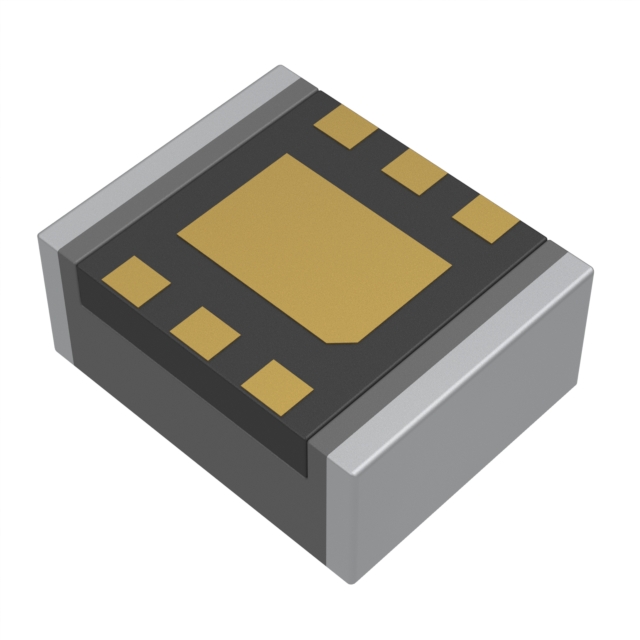

Torex Semiconductor Ltd XCL232B321KR-G	6-TDFN Exposed Pad	1.8 V	150 mA	Surface Mount	3.2 V	85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
Torex Semiconductor Ltd XCL232D271KR-G	6-TDFN Exposed Pad	1.8 V	150 mA	Surface Mount	2.7 V	85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
Torex Semiconductor Ltd XCL232B051KR-G		1.8 V	150 mA	Surface Mount	0.5 V	85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
Torex Semiconductor Ltd XCL232D201KR-G	6-TDFN Exposed Pad	1.8 V	150 mA	Surface Mount	2 V	85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
Torex Semiconductor Ltd XCL232B261KR-G	6-TDFN Exposed Pad	1.8 V	150 mA	Surface Mount	2.6 V	85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
Torex Semiconductor Ltd XCL232D231KR-G	6-TDFN Exposed Pad	1.8 V	150 mA	Surface Mount	2.3 V	85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
Torex Semiconductor Ltd XCL232B331KR-G		1.8 V	150 mA	Surface Mount	3.3 V	85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
Torex Semiconductor Ltd XCL232B311KR-G		1.8 V	150 mA	Surface Mount		85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
Torex Semiconductor Ltd XCL232D251KR-G		1.8 V	150 mA	Surface Mount	2.5 V	85 °C	-40 C	Active High Enable	86 %	Adjustable Output Remote On/Off Standby Output	CL-2025-03	0.1 in	1 mm	2 mm	0.04 in	2.5 mm	0.08 "	Non-Isolated PoL Module	ITE (Commercial)	1	6 V
