MF-USHT Series

Catalog

PTC RESETTABLE FUSE 0.1A(HOLD) 0.5A(TRIP) 30V 20A 1W 1.5S 1OHM SMD SOLDER PAD 1210 T/R AUTOMOTIVE AEC-Q200

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Package / Case	Voltage - Max [Max]	Grade	Current - Max [Max]	Time to Trip	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Bourns Inc. MF-USHT010KX-2	0.85 mm	0.033 in	Surface Mount	1210 (3225 Metric) Concave	30 V	Automotive	20 A	1.5 s	500 mA	1 Ohms	7.5 Ohms	100 mA	AEC-Q200	125 °C	-40 C	Polymeric	3.22 mm	0.101 in	0.127 in	2.58 mm
Bourns Inc. MF-USHT050KX-2	0.85 mm	0.033 in	Surface Mount	1210 (3225 Metric) Concave	30 V	Automotive	20 A	100 ms	2.5 A	300 mOhms	1.6 Ohms	500 mA	AEC-Q200	125 °C	-40 C	Polymeric	3.2 mm	0.1 in	0.126 "	2.55 mm

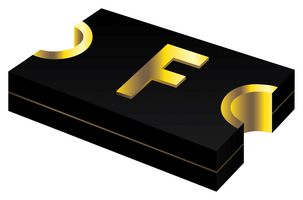

Bourns Inc. MF-USHT035KX-2	0.85 mm	0.033 in	Surface Mount	1210 (3225 Metric) Concave	30 V	Automotive	20 A	100 ms	1.75 A	400 mOhms	2.2 Ohms	350 mA	AEC-Q200	125 °C	-40 C	Polymeric	3.2 mm	0.1 in	0.126 "	2.55 mm
