175164 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

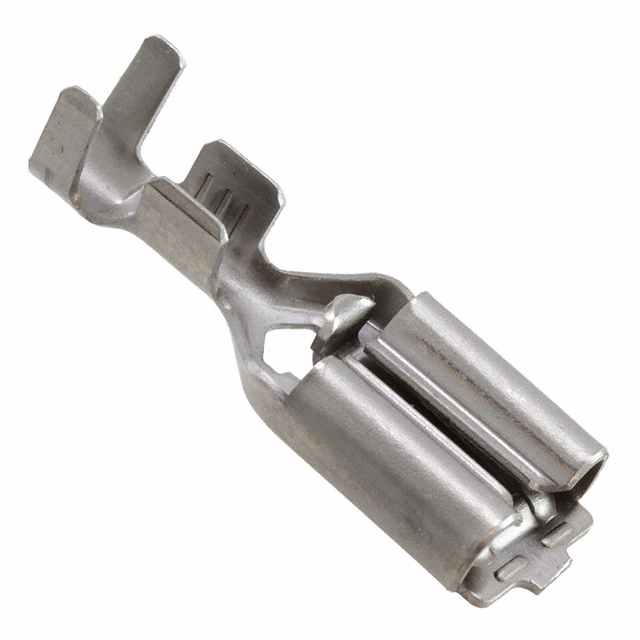

CONN QC RCPT 14-18AWG 0.250
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Contact Material | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Tab Length | Tab Length | Gender | Insulation | Tab Width | Tab Width | Termination | Mounting Type | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 14 AWG | 18 AWG | 21.2 mm | 0.835 in | 0.02 " | 0.51 mm | Steel | 0.134 in | 0.087 in | 2.21 mm | 3.4 mm | 7.8 mm | 0.307 in | Female | Non-Insulated | 6.35 mm | 0.25 in | Crimp | Free Hanging (In-Line) | Standard |
