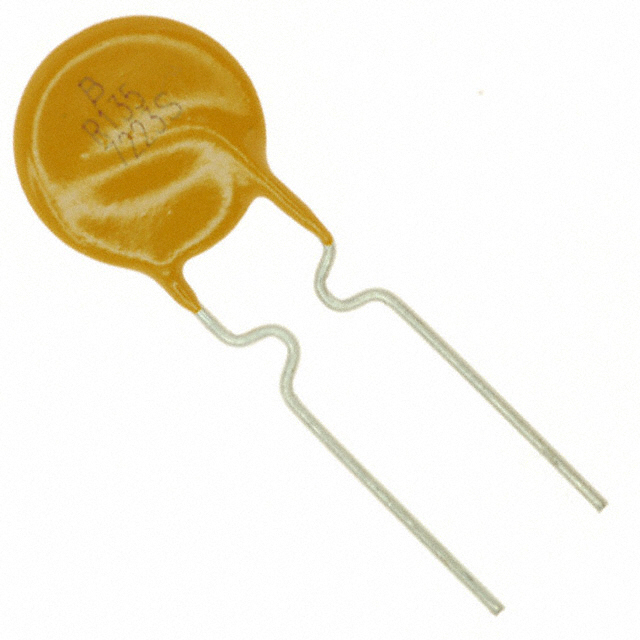

MF-R135 Series
Manufacturer: Bourns Inc.
Beta
⌘K
PTC RESET FUSE 30V 1.35A RADIAL
| Part | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Max [Max] | Type | Resistance - Post Trip (R1) (Max) [Max] | Voltage - Max [Max] | Size / Dimension [custom] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [custom] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Time to Trip | Current - Hold (Ih) (Max) [Max] | Lead Spacing | Lead Spacing | Mounting Type | Resistance - Initial (Ri) (Min) [Min] | Package / Case | Current - Trip (It) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | cURus TUV | 85 °C | -40 C | 40 A | Polymeric | 170 mOhms | 30 V | 0.118 " | 0.35 in | 8.9 mm | 3 mm | 18.9 mm | 0.744 " | 7.3 s | 1.35 A | 0.201 in | 5.1 mm | Through Hole | 65 mOhms | Disc Radial | 2.7 A |
Bourns Inc. | cURus TUV | 85 °C | -40 C | 40 A | Polymeric | 170 mOhms | 30 V | 0.118 " | 0.35 in | 8.9 mm | 3 mm | 18.9 mm | 0.744 " | 7.3 s | 1.35 A | 0.201 in | 5.1 mm | Through Hole | 65 mOhms | Disc Radial | 2.7 A |
