TPS65133 Series

Split-Rail Converter, ±5V, 250mA Dual Output Power Supply

Catalog

Split-Rail Converter, ±5V, 250mA Dual Output Power Supply

Part	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Mounting Type	Supplier Device Package	Voltage - Output	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Main Purpose	Board Type	Outputs and Type	Outputs and Type	Utilized IC / Part	Supplied Contents	Frequency - Switching	Current - Output	Regulator Topology
Texas Instruments TPS65133DPDR	AMOLED Display Converter	2.9 V	5 V	12-WFDFN Exposed Pad	Surface Mount	12-WSON (3x3)	-5 V 5 V	2	85 °C	-40 °C

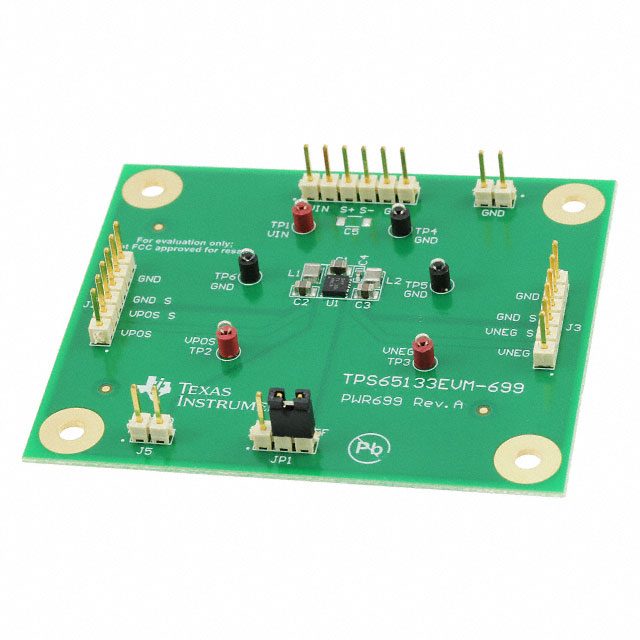

Texas Instruments TPS65133EVM-699		2.9 V	5 V				5 V				DC/DC Positive and Negative	Fully Populated	2	Non-Isolated	TPS65133	Board(s)	1.7 MHz	250 mA	Boost

Catalog

Split-Rail Converter, ±5V, 250mA Dual Output Power Supply

Key Features

• 2.9-V to 5.0-V Input Voltage RangeFixed 5.0-V Positive Output Voltage (VPOS)Fixed –5.0-V Negative Output Voltage(VNEG)±1% Output Voltage AccuracyHigh Efficiency250-mA Output Current CapabilityIndependent Converter Operation Allows 100%Output Current MismatchExcellent Line and Load Transient ResponseOperates in CCM to Minimize Output NoiseBoost Converter able to Operate with Input SupplyVoltages close to 5.0 VShort-Circuit ProtectionThermal Shutdown2.9-V to 5.0-V Input Voltage RangeFixed 5.0-V Positive Output Voltage (VPOS)Fixed –5.0-V Negative Output Voltage(VNEG)±1% Output Voltage AccuracyHigh Efficiency250-mA Output Current CapabilityIndependent Converter Operation Allows 100%Output Current MismatchExcellent Line and Load Transient ResponseOperates in CCM to Minimize Output NoiseBoost Converter able to Operate with Input SupplyVoltages close to 5.0 VShort-Circuit ProtectionThermal Shutdown

Description

The TPS65133 is designed to supply any system requiring ±5.0-V supply rails. Each output can supply up to 250 mA of output current. The input supply voltage range is suitable for use with lithium ion batteries or from a fixed 3.3-V supply. Efficiency is typically over 90% for most applications (operating from a lithium ion battery, output currents in the range 50 mA to 200 mA). The two converters in the TPS65133 device operate independently, allowing 100% mismatch between positive and negative output currents. The TPS65133 is designed to supply any system requiring ±5.0-V supply rails. Each output can supply up to 250 mA of output current. The input supply voltage range is suitable for use with lithium ion batteries or from a fixed 3.3-V supply. Efficiency is typically over 90% for most applications (operating from a lithium ion battery, output currents in the range 50 mA to 200 mA). The two converters in the TPS65133 device operate independently, allowing 100% mismatch between positive and negative output currents.
