EFB1724 Series

Catalog

FAN AXIAL 172X50.8MM 24VDC WIRE

Part	Lifetime @ Temp.	Material - Blade	Material - Frame	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	RPM	Features	Width [y]	Bearing Type	Fan Type	Approval Agency	Noise	Voltage - Rated	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Static Pressure	Static Pressure	Size / Dimension [diameter]	Size / Dimension	Termination	Air Flow	Air Flow	Ingress Protection
Delta Electronics EFB1724LG-R00	80000 Hrs	Plastic	Aluminum	390 mA	28 V	12 VDC	2800 RPM	Locked Rotor Sensor	50.8 mm	Ball	Tubeaxial	CE CSA UL VDE	48 dB	24 VDC	9.36 W	70 °C	-10 °C	861.8 g	1.9 lbs	116.8 Pa	0.469 in H2O	172 mm	Round	3 Wire Leads	210.1 CFM	5.88 m³/min

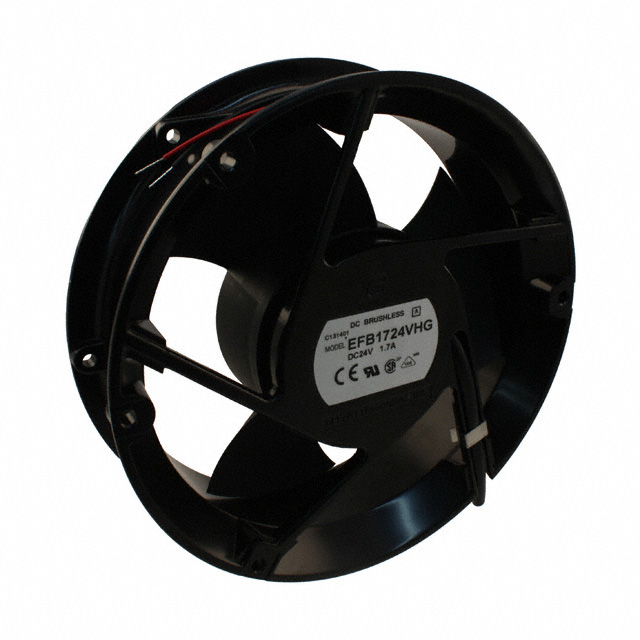

Delta Electronics EFB1724VHG	80000 Hrs	Plastic	Aluminum	970 mA	28 V	12 VDC	4000 RPM		50.8 mm	Ball	Tubeaxial	CE CSA UL VDE	57 dB	24 VDC	23.28 W	70 °C	-10 °C	861.8 g	1.9 lbs	233.4 Pa	0.937 in H2O	172 mm	Round	2 Wire Leads	302.3 CFM	8.46 m³/min

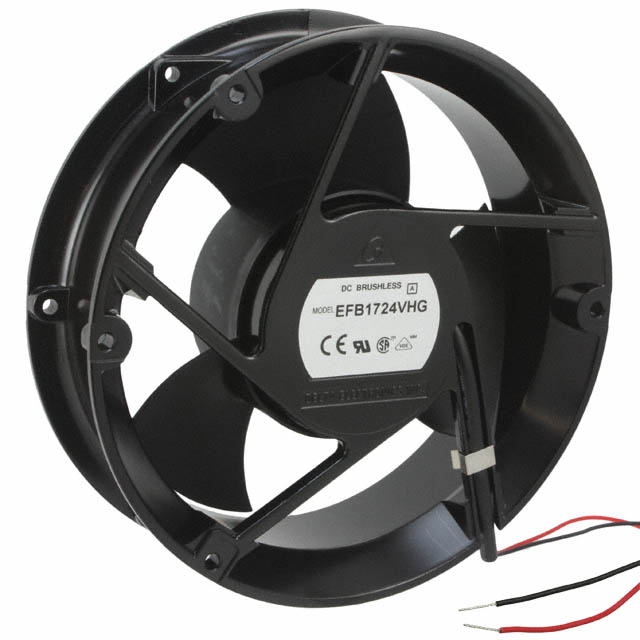

Delta Electronics EFB1724VHG-T500	80000 Hrs	Plastic	Aluminum	970 mA	28 V	12 VDC	4000 RPM		50.8 mm	Ball	Tubeaxial	CE CSA UL VDE	57 dB	24 VDC	23.28 W	70 °C	-10 °C	861.8 g	1.9 lbs	233.4 Pa	0.937 in H2O	172 mm	Round	2 Wire Leads	302.3 CFM	8.46 m³/min	IP55 - Dust Protected Water Resistant

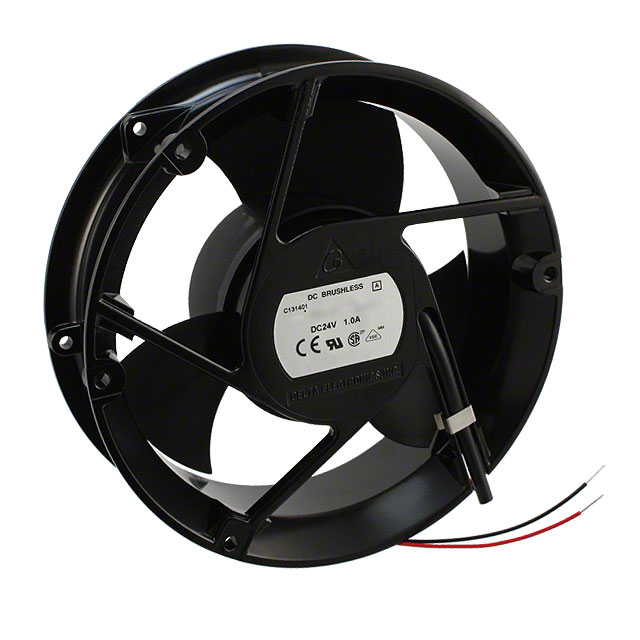

Delta Electronics EFB1724HG	80000 Hrs	Plastic	Aluminum	0.56 A	28 V	12 VDC	3350 RPM		50.8 mm	Ball	Tubeaxial	CE CSA UL VDE	53 dB	24 VDC	13.44 W	70 °C	-10 °C	861.8 g	1.9 lbs	171.6 Pa	0.689 in H2O	172 mm	Round	2 Wire Leads	251.8 CFM	7.05 m³/min

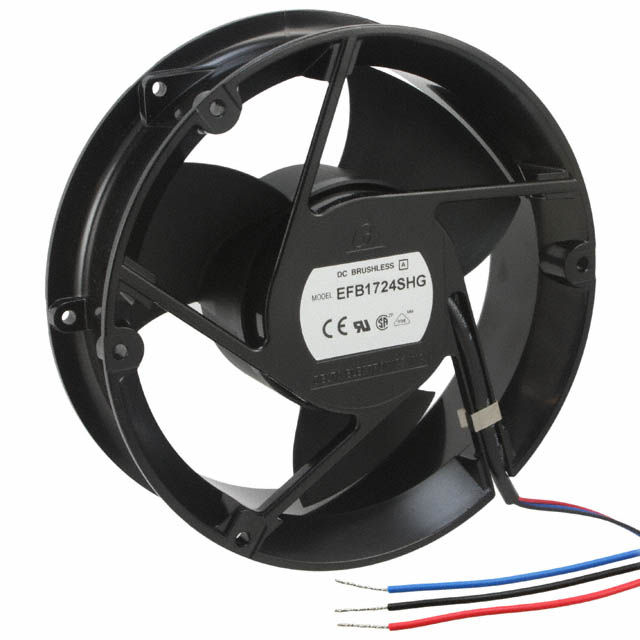

Delta Electronics EFB1724SHG-F00	80000 Hrs	Plastic	Aluminum	1.17 A	28 V	12 VDC	4300 RPM	Locked Rotor Protection Speed Sensor (Tach)	50.8 mm	Ball	Tubeaxial	CE CSA UL VDE	59 dB(A)	24 VDC	28.08 W	70 °C	-10 °C	861.8 g	1.9 lbs	269.8 Pa	1.083 in H2O	172 mm	Round	3 Wire Leads	325 CFM	9.1 m³/min
Delta Electronics EFB1724HG-F00	80000 Hrs	Plastic	Aluminum	0.56 A	28 V	12 VDC	3350 RPM	Locked Rotor Protection Speed Sensor (Tach)	50.8 mm	Ball	Tubeaxial	CE CSA UL VDE	53 dB	24 VDC	13.44 W	70 °C	-10 °C	861.8 g	1.9 lbs	171.6 Pa	0.689 in H2O	172 mm	Round	3 Wire Leads	251.8 CFM	7.05 m³/min

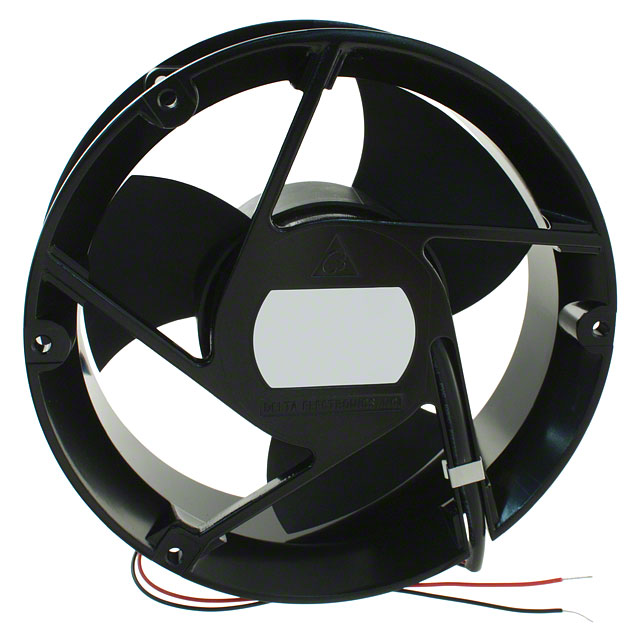

Delta Electronics EFB1724HHG	80000 Hrs	Plastic	Aluminum	770 mA	28 V	12 VDC	3700 RPM		50.8 mm	Ball	Tubeaxial	CE CSA UL VDE	55 dB(A)	24 VDC	18.48 W	70 °C	-10 °C	861.8 g	1.9 lbs			172 mm	Round	2 Wire Leads	279.7 CFM	7.83 m³/min
