R22240 Series

Catalog

SMP / STRAIGHT JACK RECEPTACLE F

Part	Center Contact Plating	Body Finish	Dielectric Material	Voltage Rating	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Termination	Impedance	Fastening Type	Number of Ports	Connector Type	Housing Color	Mounting Type	Shield Termination	Center Contact Material	Frequency - Max [Max]

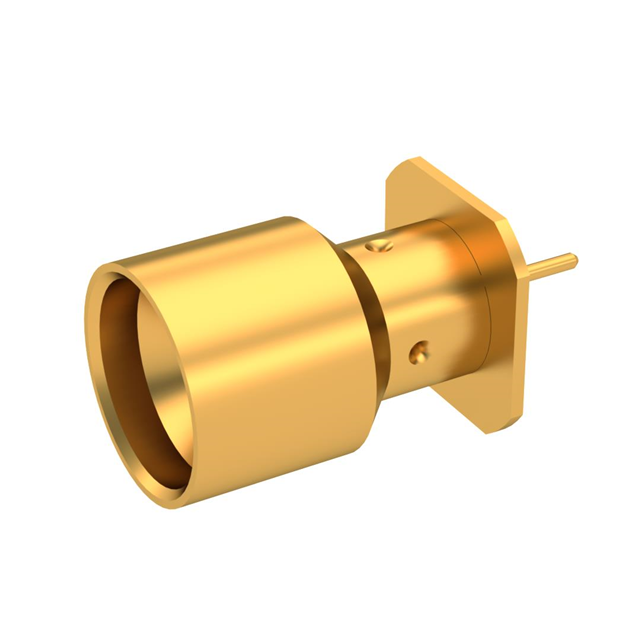

Radiall USA, Inc. R222409030	Gold	Gold	Polytetrafluoroethylene (PTFE)	335 V	Stainless Steel	-65 ░C	165 °C	Full Detent	Solder	50 Ohms	Snap-On	1	Female Socket Plug	Gold	Through Hole	Solder	Beryllium Copper	18 GHz
Radiall USA, Inc. R222409030W	Gold	Gold	Polytetrafluoroethylene (PTFE)	335 V	Stainless Steel	-65 ░C	165 °C	Full Detent	Solder	50 Ohms	Snap-On	1	Female Socket Plug	Gold	Through Hole	Solder	Beryllium Copper	18 GHz
Radiall USA, Inc. R222408370W
