Bd0 Series Series

Standard Profile DIP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Standard Profile DIP

Part	Contact Material	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Contact Finish	Termination Style	Actuator Level	Current Rating (Amps)	Body Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mechanical Life	Length	Length	Electrical Life	Circuit	Height Above Board	Height Above Board	Number of Positions	Length [x]	Length [x]

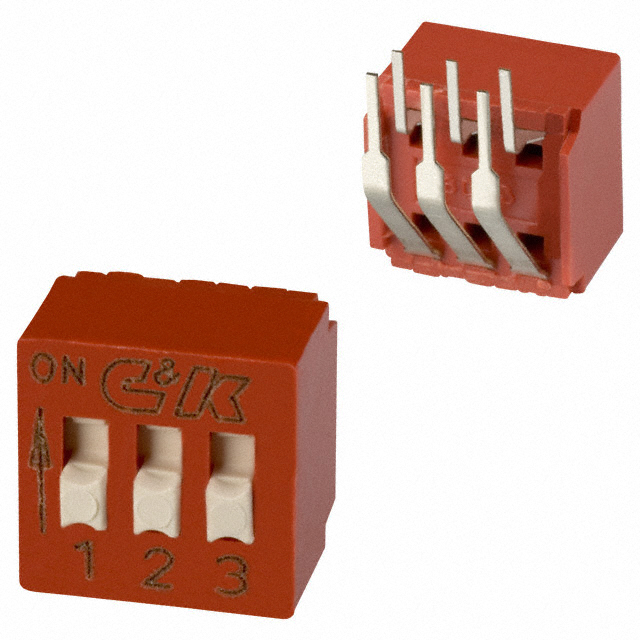

Littelfuse/Commercial Vehicle Products BD03AV	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	85 °C	-40 °C	Slide (Standard)	10000 Steps	9.65 mm	0.38 in	10000 Cycles	SPST
Littelfuse/Commercial Vehicle Products BD05AV	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	85 °C	-40 °C	Slide (Standard)	10000 Steps	14.73 mm	0.58 in	10000 Cycles	SPST
Littelfuse/Commercial Vehicle Products BD03	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	85 °C	-40 °C	Slide (Standard)	10000 Steps	9.65 mm	0.38 in	10000 Cycles	SPST	0.297 in	7.54 mm
Littelfuse/Commercial Vehicle Products BD09	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	85 °C	-40 °C	Slide (Standard)	10000 Steps			10000 Cycles	SPST	0.297 in	7.54 mm	9	0.98 in	24.89 mm

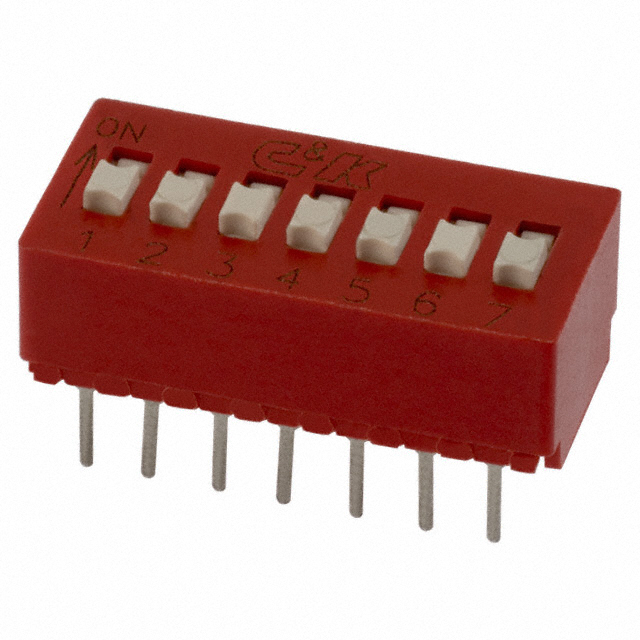

Littelfuse/Commercial Vehicle Products BD07	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	85 °C	-40 °C	Slide (Standard)	10000 Steps			10000 Cycles	SPST	0.297 in	7.54 mm	7
Littelfuse/Commercial Vehicle Products BD05	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	85 °C	-40 °C	Slide (Standard)	10000 Steps	14.73 mm	0.58 in	10000 Cycles	SPST	0.297 in	7.54 mm

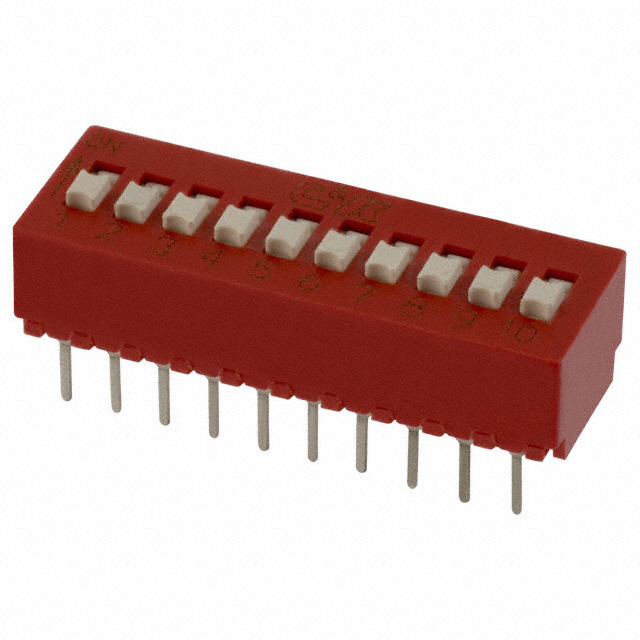

Littelfuse/Commercial Vehicle Products BD10	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	85 °C	-40 °C	Slide (Standard)	10000 Steps	27.43 mm	1.08 in	10000 Cycles	SPST	0.297 in	7.54 mm	10
Littelfuse/Commercial Vehicle Products BD08	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	85 °C	-40 °C	Slide (Standard)	10000 Steps	22.35 mm	0.88 in	10000 Cycles	SPST	0.297 in	7.54 mm	8
Littelfuse/Commercial Vehicle Products BD06	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	85 °C	-40 °C	Slide (Standard)	10000 Steps			10000 Cycles	SPST	0.297 in	7.54 mm	6	0.68 "	17.27 mm
Littelfuse/Commercial Vehicle Products BD08AV	Phosphor Bronze	0.1 in	Full	2.54 mm	5 V	Gold	PC Pin	Raised	100 mA	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	85 °C	-40 °C	Slide (Standard)	10000 Steps	22.35 mm	0.88 in	10000 Cycles	SPST			8

Catalog

Standard Profile DIP

Key Features

• Traditional full profile DIP switch

• Extended actuator for easy actuation

• Open bottom construction allows for solder washing without the need for tape seal

Description

With an extended actuator for easy actuation and an open bottom construction that allows for solder washing without the need for a tape seal, BD series standard profile DIP switches from C&K are used by designers for function controlling, logic switching in computers and peripherals and industrial control address switches.
