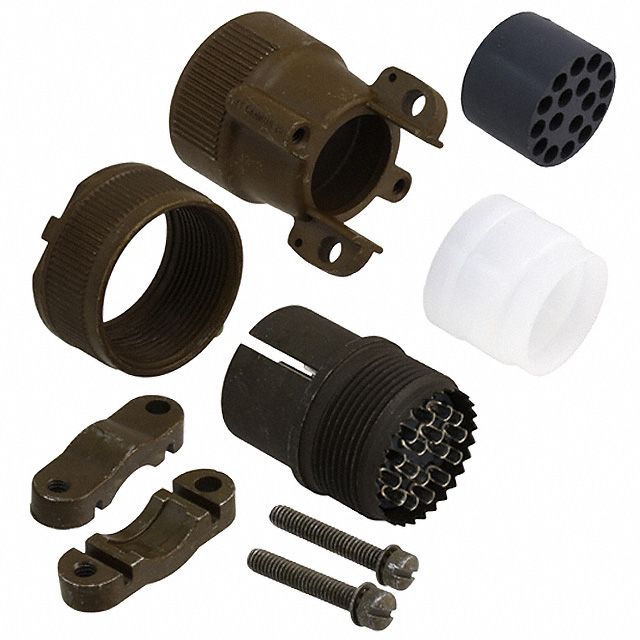

MS3106E20 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR
| Part | Fastening Type | Qualification | Insert Material | Applications | Shell Material | Primary Material | Voltage Rating | Connector Type | Number of Positions | Features | Grade | Color | Orientation | Mounting Type | Shell Finish | Contact Finish - Mating | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Current Rating (Amps) | Contact Material | Ingress Protection | Cable Opening | Cable Opening | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Orientation [z] | Voltage Rating [custom] | Voltage Rating [custom] | Shell Size - Insert | Orientation [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Plastic | Aviation Industrial Marine Military | Aluminum Alloy | Metal | 500 VAC 700 VDC | Plug Female Sockets | 4 | Backshell Coupling Nut | Military | Olive Drab | N (Normal) | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | 24 | 20 | -55 C | 125 °C | Unshielded | 13 A 46 A | Copper Alloy | Environment Resistant | 0.656 in | 16.66 mm | |||||||
 ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Aluminum Alloy | Metal | 500 VAC 700 VDC | Plug Male Pins | Cable Clamp Coupling Nut | Military | Olive Drab | N (Normal) | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | -55 C | 125 °C | 22 A | Environment Resistant | 20 | 29 | ||||||||||||||
ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Plastic | Aviation Industrial Marine Military | Aluminum Alloy | Metal | 500 VAC 700 VDC | Plug Female Sockets | 14 | Backshell Coupling Nut | Military | Olive Drab | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | 27 | 20 | -55 C | 125 °C | Unshielded | 13 A | Copper Alloy | Environment Resistant | 0.656 in | 16.66 mm | Z | |||||||
ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Aluminum Alloy | Metal | Plug Female Sockets | 4 | Cable Clamp Coupling Nut | Military | Olive Drab | W | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | 4 | 20 | -55 C | 125 °C | 41 A | Environment Resistant | 1250 VDC | 900 VAC | ||||||||||||
ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Aluminum Alloy | Metal | 500 VAC 700 VDC | Plug Male Pins | Cable Clamp Coupling Nut | Military | Olive Drab | W | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | -55 C | 125 °C | 22 A | Environment Resistant | 20 | 29 | ||||||||||||||
 ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Aluminum Alloy | Metal | 500 VAC 700 VDC | Plug Female Sockets | 8 | Cable Clamp Coupling Nut | Military | Olive Drab | N (Normal) | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | -55 C | 125 °C | 22 A | Environment Resistant | 20-7 | ||||||||||||||
ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Aluminum Alloy | Metal | 500 VAC 700 VDC | Plug Male Pins | Cable Clamp Coupling Nut | Military | Olive Drab | W | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | -55 C | 125 °C | 22 A | Environment Resistant | 20 | 29 | ||||||||||||||
ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Aluminum Alloy | Metal | 500 VAC 700 VDC | Plug Female Sockets | 14 | Cable Clamp Coupling Nut | Military | Olive Drab | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | 27 | 20 | -55 C | 125 °C | 22 A | Environment Resistant | X | |||||||||||||
ITT Cannon, LLC | Threaded | MIL-DTL-5015 | Aluminum Alloy | Metal | Plug Female Sockets | 4 | Cable Clamp Coupling Nut | Military | Olive Drab | Free Hanging (In-Line) | Olive Drab Cadmium | Silver | 4 | 20 | -55 C | 125 °C | 41 A | Environment Resistant | 1250 VDC | 900 VAC | X |
