1473057 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

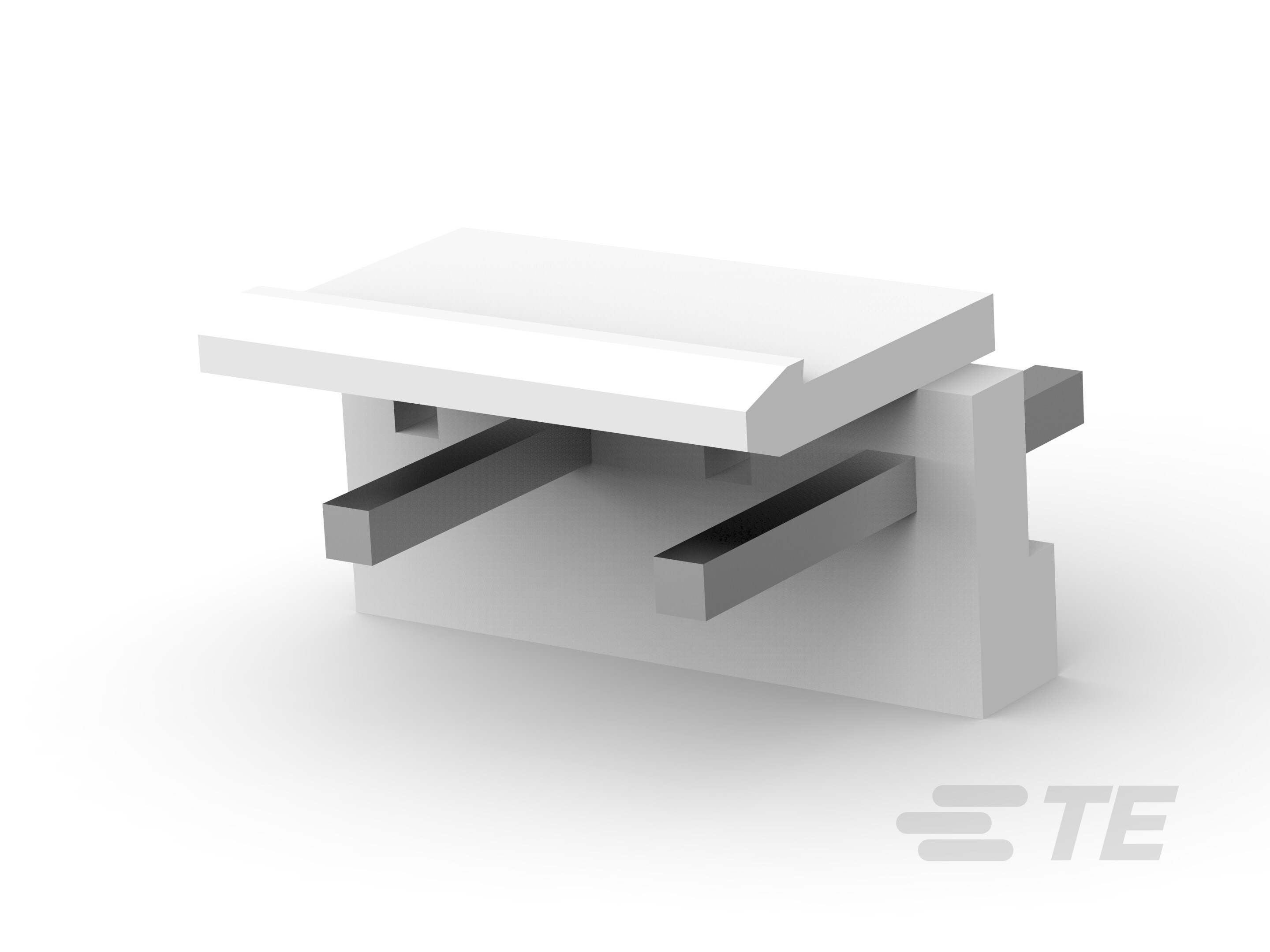

CONN HEADER VERT 4POS 3.96MM
| Part | Number of Positions | Insulation Material | Contact Type | Style | Voltage Rating | Contact Finish - Post | Fastening Type | Number of Positions Loaded | Mounting Type | Shrouding | Termination | Insulation Color | Applications | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Overall Contact Length | Overall Contact Length | Contact Material | Number of Rows | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Connector Type | Pitch - Mating | Pitch - Mating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 4 | Glass Filled Nylon Polyamide (PA) | Male Pin | Board to Cable/Wire | 250 VAC | Tin | Locking Ramp | 2 | Through Hole | Shrouded - 1 Wall | Solder | Natural | General Purpose Industrial Lighting | 0.146 in | 3.7 mm | 7.5 A | 14.4 mm | 0.567 " | Brass | 1 | UL94 V-0 | -25 °C | 105 ░C | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Header | 0.156 in | 3.96 mm | Square |
TE Connectivity Raychem Cable Protection | 4 | Glass Filled Nylon Polyamide (PA) | Male Pin | Board to Cable/Wire | 250 VAC | Tin | Locking Ramp | 2 | Through Hole | Shrouded - 1 Wall | Solder | Natural | General Purpose Industrial Lighting | 0.146 in | 3.7 mm | 7.5 A | 14.4 mm | 0.567 " | Brass | 1 | UL94 V-0 | -25 °C | 105 ░C | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Header | 0.156 in | 3.96 mm | Square |
