3282 Series

Catalog

CONN SPADE TERM 14-16AWG #6 BLU

Part	Terminal Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Termination	Length - Termination	Width - Outer Edges	Width - Outer Edges	Termination	Mounting Type	Insulation	Material - Insulation	Stud/Tab Size	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Features	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Contact Material	Contact Finish	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness
TE Connectivity Raychem Cable Protection 328281	Standard	0.115 in 2.92 mm	0.17 " 4.32 mm	0.404 "	10.26 mm	0.244 in	6.2 mm	Crimp	Free Hanging (In-Line)	Insulated	Nylon Polyamide (PA)	6 Stud	3.68 mm	0.145 in	Serrated Termination	7.92 mm	0.312 in	Copper	Tin	Blue

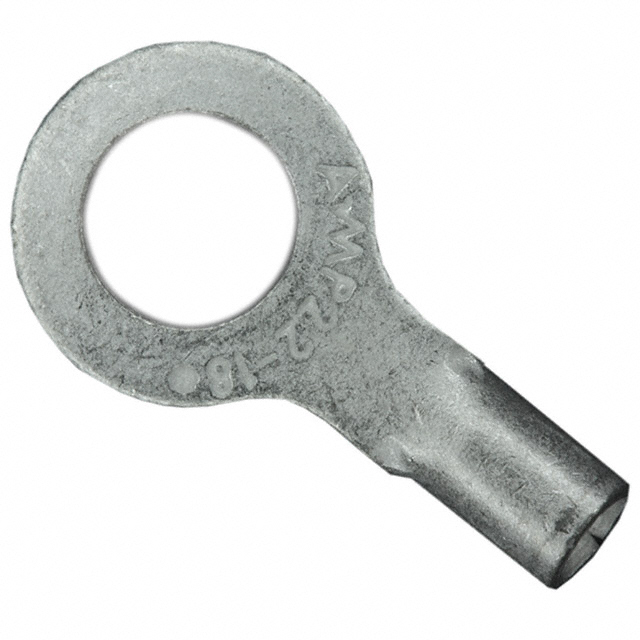

TE Connectivity Raychem Cable Protection 32824	Circular							Crimp	Free Hanging (In-Line)	Non-Insulated		10 Stud			Serrated Termination			Copper	Tin		0.344 in	8.74 mm	0.653 "	16.59 mm	22 AWG	16 AWG	0.031 in	0.79 mm
