104550 Series

Catalog

24 SYS50 SURFMNT DRST RCPT ROHS COMPLIANT: NO

Part	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Post	Number of Rows [custom]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Number of Positions Loaded	Mated Stacking Heights	Mounting Type	Contact Finish - Post	Contact Type	Number of Positions	Fastening Type	Features	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 104550-3	Square	Phosphor Bronze	Polyphthalamide (PPA)	3.81 Ám	2	Gold	1.27 mm	0.05 in	Solder	Receptacle	0.76 Ám	30 Áin	9.4 mm	0.37 in	105 ░C	-65 ░C	30 VAC	Black	0.1 in	2.54 mm	UL94 V-0	All	11.94 mm 13.08 mm	Surface Mount	Tin-Lead	Female Socket	24	Push-Pull	Board Lock

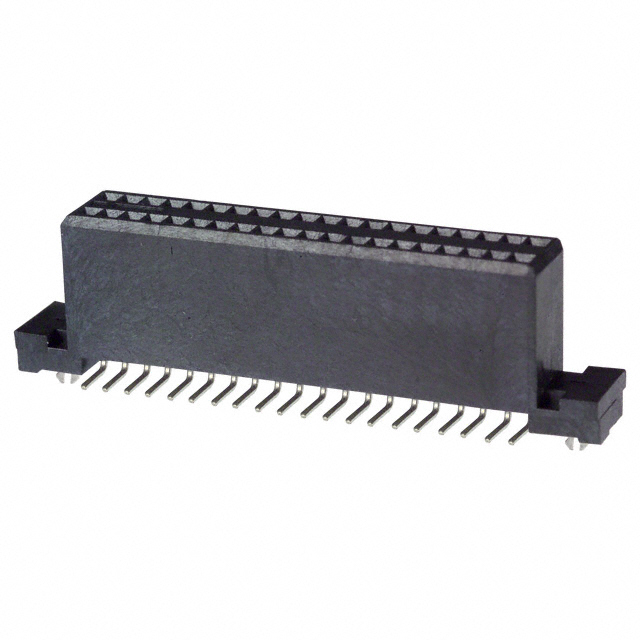

TE Connectivity AMP Connectors 104550-5	Square	Phosphor Bronze	Polyphthalamide (PPA)	3.81 Ám	2	Gold	1.27 mm	0.05 in	Solder	Receptacle	0.76 Ám	30 Áin	9.4 mm	0.37 in	105 ░C	-65 ░C	30 VAC	Black	0.1 in	2.54 mm	UL94 V-0	All	11.94 mm 13.08 mm	Surface Mount	Tin-Lead	Female Socket	40	Push-Pull	Board Lock	150 Áin

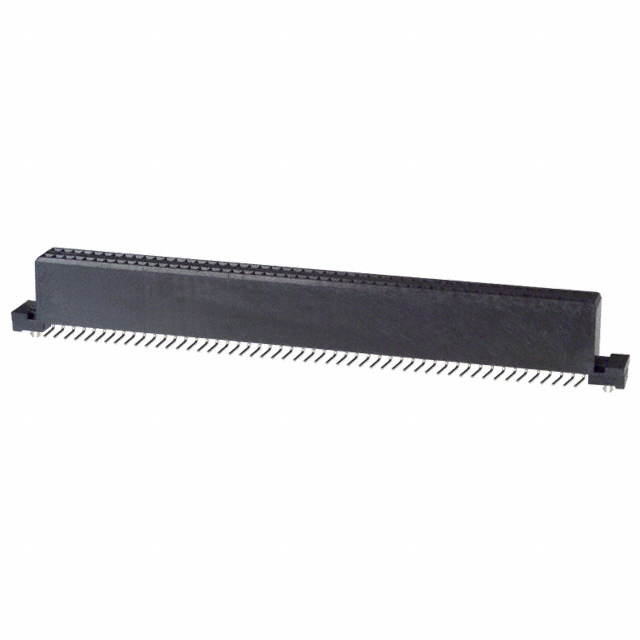

TE Connectivity AMP Connectors 104550-9	Square	Phosphor Bronze	Polyphthalamide (PPA)	3.81 Ám	2	Gold	1.27 mm	0.05 in	Solder	Receptacle	0.76 Ám	30 Áin	9.4 mm	0.37 in	105 ░C	-65 ░C	30 VAC	Black	0.1 in	2.54 mm	UL94 V-0	All	11.94 mm 13.08 mm	Surface Mount	Tin-Lead	Female Socket	100	Push-Pull	Board Lock
