207441 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

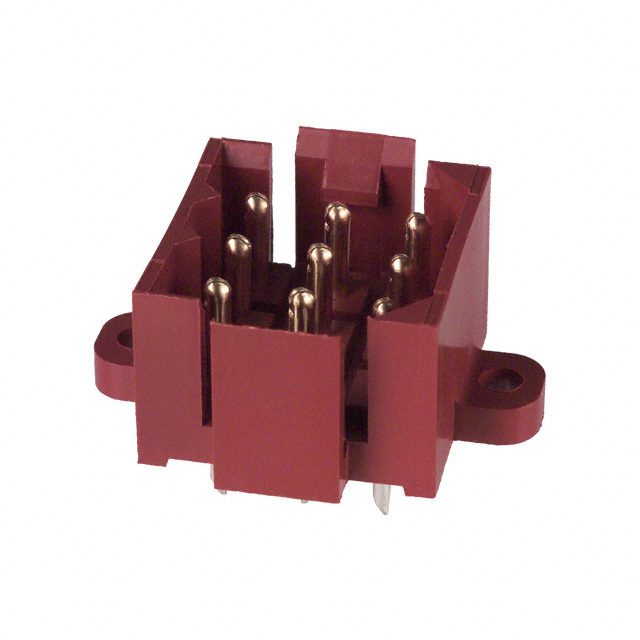

METRIMATE PIN HDR ASY,9P LF
| Part | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Contact Material | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Insulation Material | Voltage Rating | Fastening Type | Number of Rows | Features | Contact Finish - Mating | Termination | Mounting Type | Number of Positions Loaded | Applications | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Connector Type | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Material Flammability Rating | Contact Type | Style | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 150 Áin | 3.81 Ám | 0.464 in | 11.79 mm | Brass | 9 | 5 mm | 0.197 in | Black Red | Nylon Polyamide (PA) | 600 V | Latch Lock | 3 | Mounting Flange | Gold PdNi +Gold | Solder | Through Hole | All | Automotive General Purpose Industrial | 0.181 in | 4.6 mm | 130 °C | -55 °C | 5 mm | 0.197 " | Header | 7.5 A | 30 Áin | 0.76 Ám | Circular | UL94 V-0 | Male Pin | Board to Board Cable | Shrouded - 4 Wall |
TE Connectivity Raychem Cable Protection | Tin | 150 Áin | 3.81 Ám | 0.464 in | 11.79 mm | Brass | 9 | 5 mm | 0.197 in | Black Red | Nylon Polyamide (PA) | 600 V | Latch Lock | 3 | Solder | Through Hole | All | Automotive General Purpose Industrial | 0.181 in | 4.6 mm | 130 °C | -55 °C | 5 mm | 0.197 " | Header | 7.5 A | 150 Áin | 3.81 Ám | Circular | UL94 V-0 | Male Pin | Board to Board Cable | Shrouded - 4 Wall |
