SDSA56 Series

Manufacturer: ChromeLED

Catalog

DISPLAY 7SEG 0.56" SGL RED 10SMD

Part	Power Dissipation (Max) [Max]	Common Pin	Voltage - Forward (Vf) (Typ)	Package / Case	Display Type	Millicandela Rating	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Color	Current - Test	Number of Characters	Power Dissipation (Max)
ChromeLED SDSA56RR1W	75 mw	Common Anode	2 V	10-SMD No Lead	7-Segment	3 mcd	0.156 in	12.5 mm	3.95 mm	0.492 "	17 mm	0.669 in	644 nm	0.56 in	14.2 mm	Red	20 mA	1
ChromeLED SDSA56G2W	70 mW	Common Anode	2 V	10-SMD No Lead	7-Segment	25 mcd	0.156 in	12.5 mm	3.95 mm	0.492 "	17 mm	0.669 in	571 nm	0.56 in	14.2 mm	Green	20 mA	1
ChromeLED SDSA56A2W	70 mW	Common Anode	2 V	10-SMD No Lead	7-Segment	45 mcd	0.156 in	12.5 mm	3.95 mm	0.492 "	17 mm	0.669 in	606 nm	0.56 in	14.2 mm	Amber	20 mA	1
ChromeLED SDSA56Y1W	70 mW	Common Anode	2 V	10-SMD No Lead	7-Segment	6 mcd	0.156 in	12.5 mm	3.95 mm	0.492 "	17 mm	0.669 in	590 nm	0.56 in	14.2 mm	Yellow	20 mA	1
ChromeLED SDSA56R2W	70 mW	Common Anode	2 V	10-SMD No Lead	7-Segment	60 mcd	0.156 in	12.5 mm	3.95 mm	0.492 "	17 mm	0.669 in	624 nm	0.56 in	14.2 mm	Red	20 mA	1
ChromeLED SDSA56Y2W	70 mW	Common Anode	2 V	10-SMD No Lead	7-Segment	35 mcd	0.156 in	12.5 mm	3.95 mm	0.492 "	17 mm	0.669 in	590 nm	0.56 in	14.2 mm	Yellow	20 mA	1

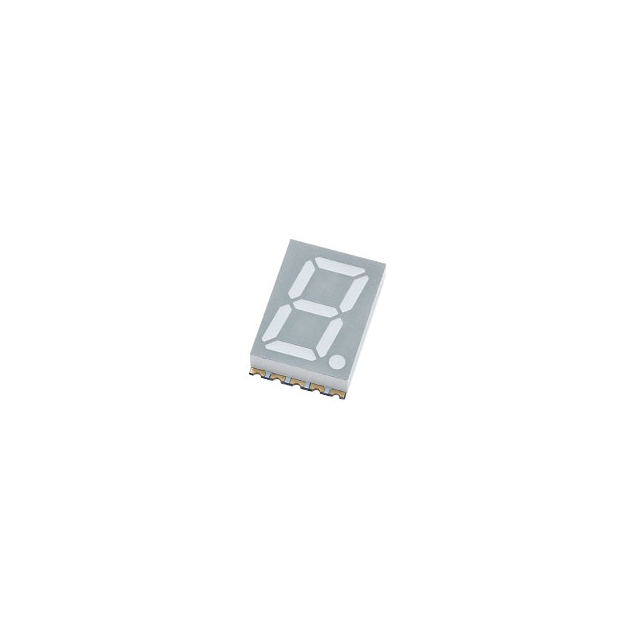

ChromeLED SDSA56B2W		Common Anode	3.2 V	10-SMD No Lead	7-Segment	40 mcd	0.156 in	12.5 mm	3.95 mm	0.492 "	17 mm	0.669 in	465 nm	0.56 in	14.2 mm	Blue	20 mA	1	120 mW
ChromeLED SDSA56R1W	70 mW	Common Anode	2 V	10-SMD No Lead	7-Segment	6 mcd	0.156 in	12.5 mm	3.95 mm	0.492 "	17 mm	0.669 in	620 nm	0.56 in	14.2 mm	Red	20 mA	1
